Assembly
03.00 | PWG-S | Assembly and operating manual | en | 389361
17
4.2 Mounting the sensors

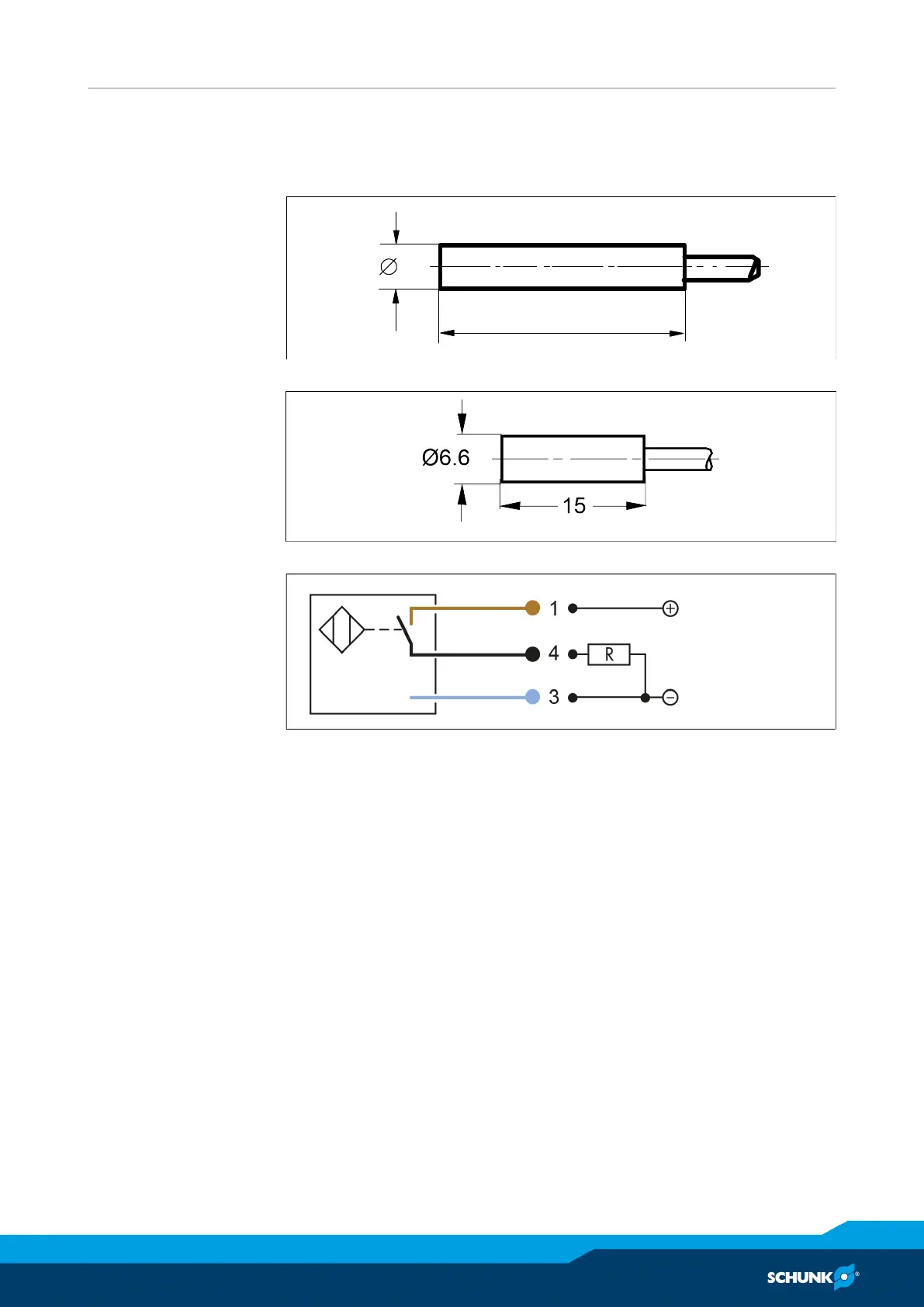

The gripper is prepared for the application of the IN 40 / IN 60
sensors.
4
25
IN 40
IN 60
brown
black
blue
load
closer
The inductive proximity switches used are equipped with reverse
polarity protection and are short-circuit-proof.
Make sure that you handle the proximity switches properly:
Do not pull on the cable.
Do not allow the sensor to dangle from the cable.
Do not overtighten the mounting screw or mounting clip
Please adhere to a permitted bend radius of the cable (
cataolg).
Avoid contact of the proximity switches with hard objects and
with chemicals, in particular nitric acid, chromic acid and
sulphuric acid.
