5. SteelFlex
™
Safety Duct
Assembling SteelFlex
™
Safety Duct
1. Slide the steel ring clamp over the end of
the duct then insert the 200mm metal
pipe into the duct end
Parts required:
1. SteelFlex
™
safety ducting
2. Steel ring clamp
3. 200mm metal pipe
4. 12mm self-drilling button head screws
1
2
3
4
NOTE: Do not use duct tape to fasten the duct – the screws and hose clamp are adequate to secure the duct
to the metal pipe.
x4

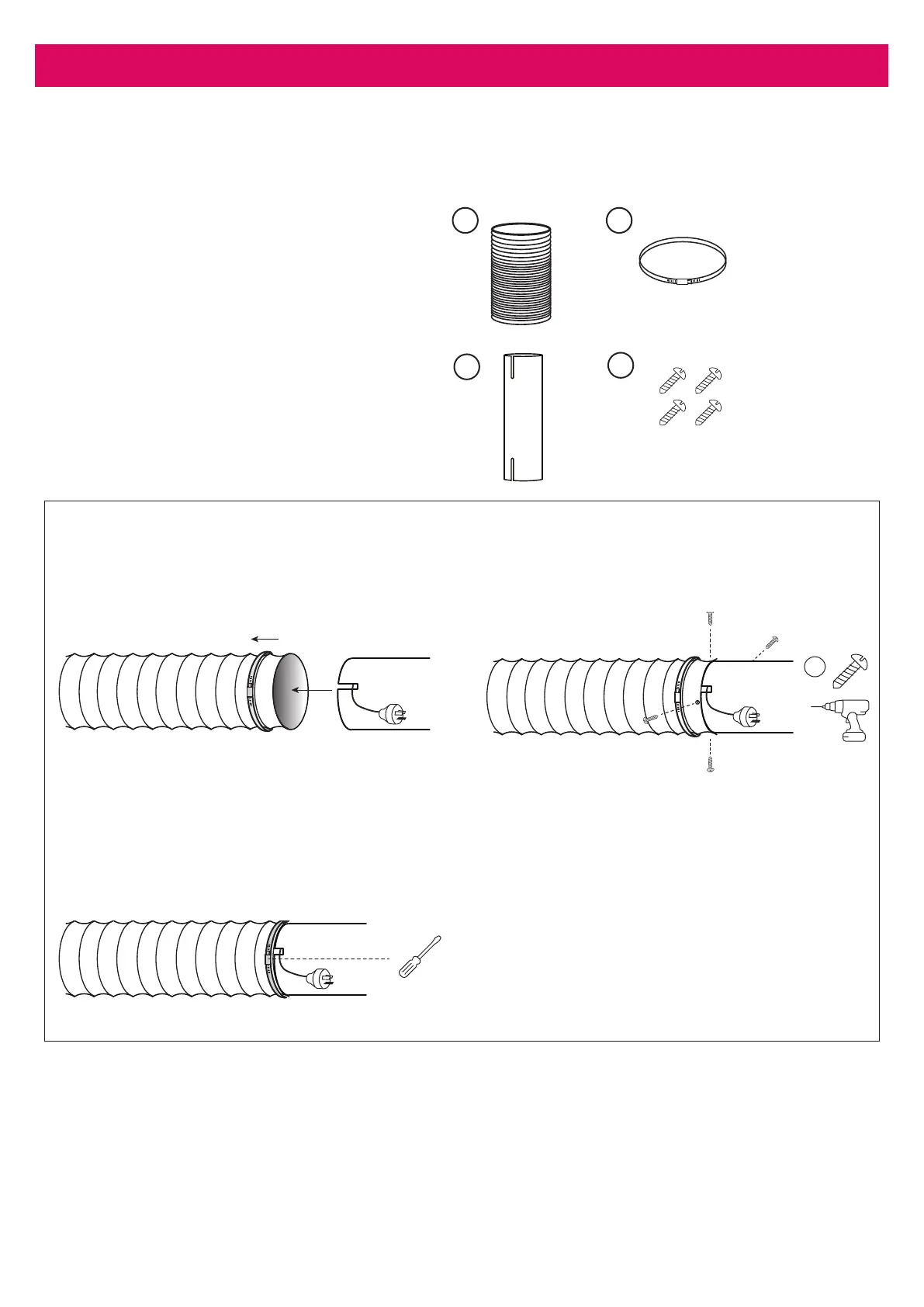

Figure 6: Duct assembling
2. Secure duct to the pipe at regular intervals
with supplied 20mm button head screws
3. Slide the steel ring clamp back up and
tighten to secure the pipe and the duct
