Wall Installation
This type of installation is similar to roof mounting, ensuring that the pipe extends at least 55mm past the
wall surface refer gure 3. If the pipe length is shortened, reproduce the power cord exit slot on the inside of
the wall.
IMPORTANT FOR 1650 MOTOR: Weather shield must be tted to the top cover of the side ange using
the 3 screws provided. Also, it is required to use the wall hanging bracket for wall mount installation, for more
information please refer to page 11.
NOTE: By decreasing the length of the SteelFlex
™
duct from which specied (refer to installation instructions)
there will be an increase in airow and noise levels as a result. This increase in airow can cause movement of
air to be heard through the system and inhibit the system to run silently.

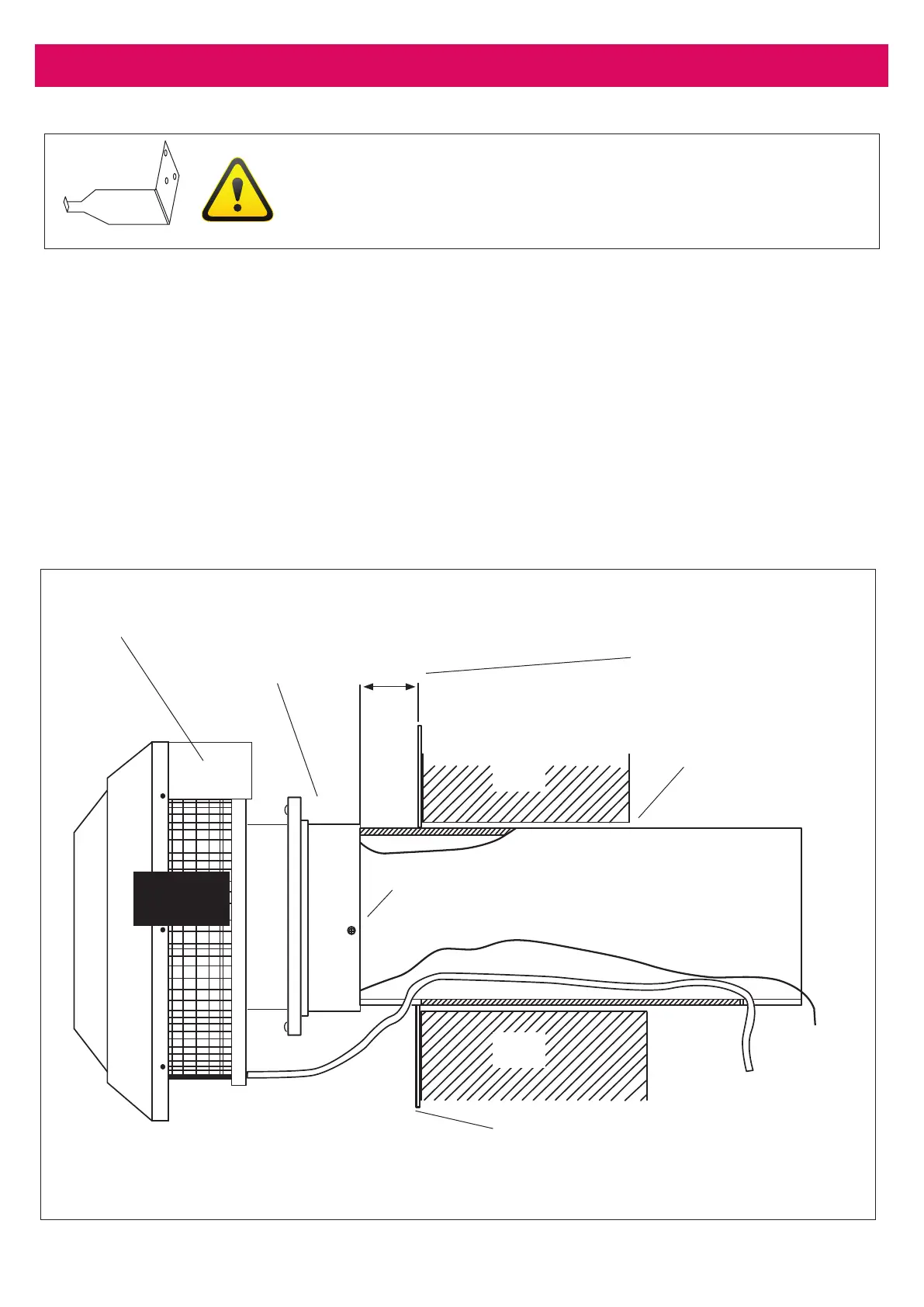

Figure 2: Wall installation
4. Installation
IMPORTANT
It is a requirement to use the wall hanging bracket for all wall mount
installations. Please refer to the illustrations for mounting.
Wall
Wall
Backdraft Shutter*
200mm Metal Pipe
From outside face of wall cover plate to end of
pipe (or wall if cover plate not used)
28
Locking screws
Power cord to
220-240V supply
Fill gap between pipe and
wall or t second wall cover
plate if required
1650
Motor
Wall cover plate (optional)**
Weather shield
must be at top
* With through wall installations ap shaft will be close to vertical.
** Optional parts are available from Schweigen, please contact 1300 881 693.
