3. Description
Isodrive Motor

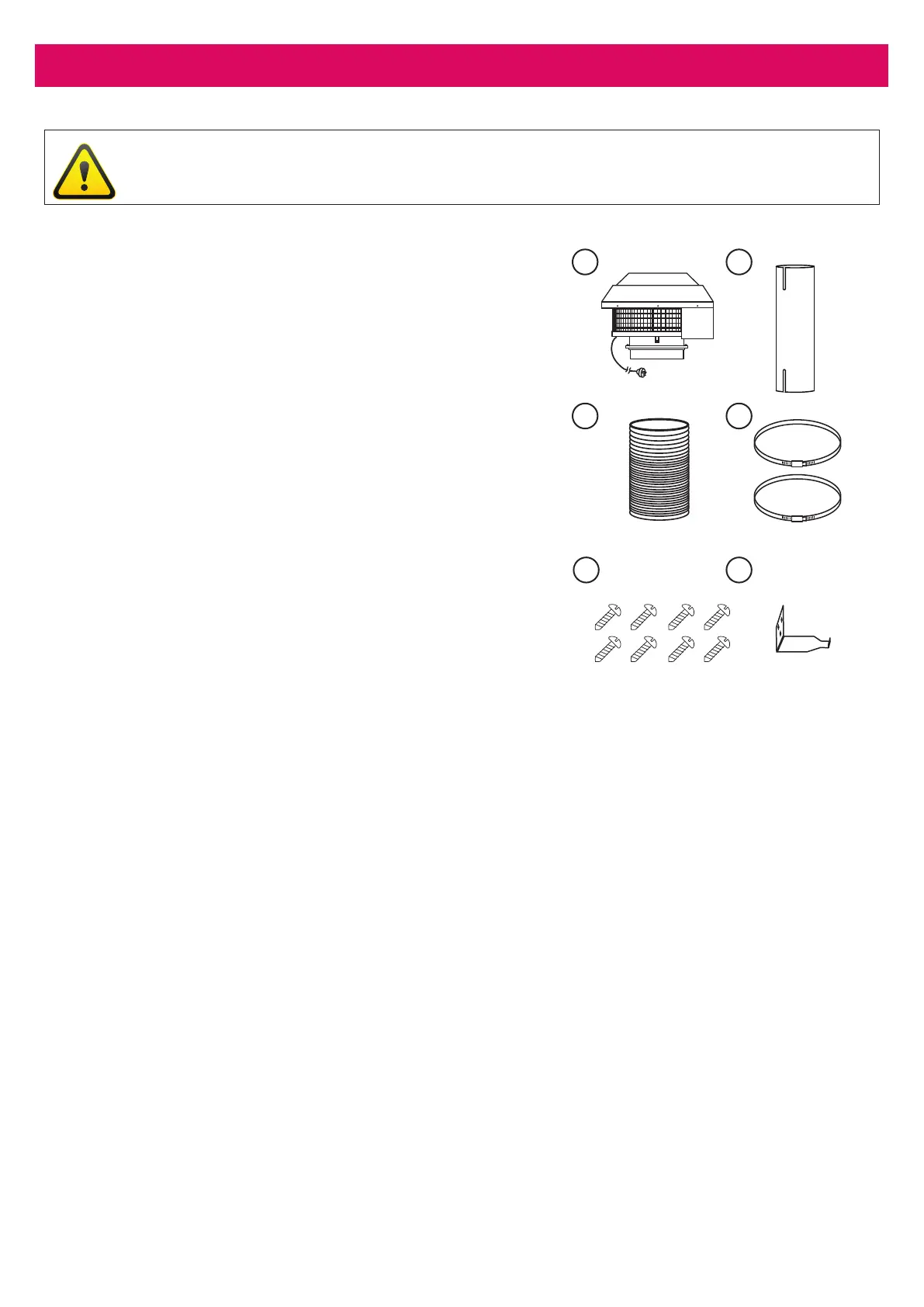

Included in the box:
1. Isodrive 1650 motor (400W x 300H
mm approx.)
Approx. 3 metre, 10amp cable and standard plug
(backdraft shutter and weather shield included)
2. Fire resistant 200mm metal pipe
3. SteelFlex
™
safety ducting. Approx. 6 metres,
200mm (210mm outside dimension) diameter
4. 2 x Steel ring clamps (for attaching ducting to rangehood and
motor)
5. 8 x 12mm self-drilling button head screws (for attaching metal
pipe to motor and ducting)
6. Wall hanging bracket
Not included in the box:
• Roof seal kit / Dektite
• Support clamps/straps for pipe which connects to the roof truss
• Aluminium foil tape
• Wall Cover Plate (wall mount only) - optional
1
5
2
3 4
6
NOTE
For more SteelFlex
™
ducting instructions, refer page 13.
