Page 9
4. Installation
1650 motor

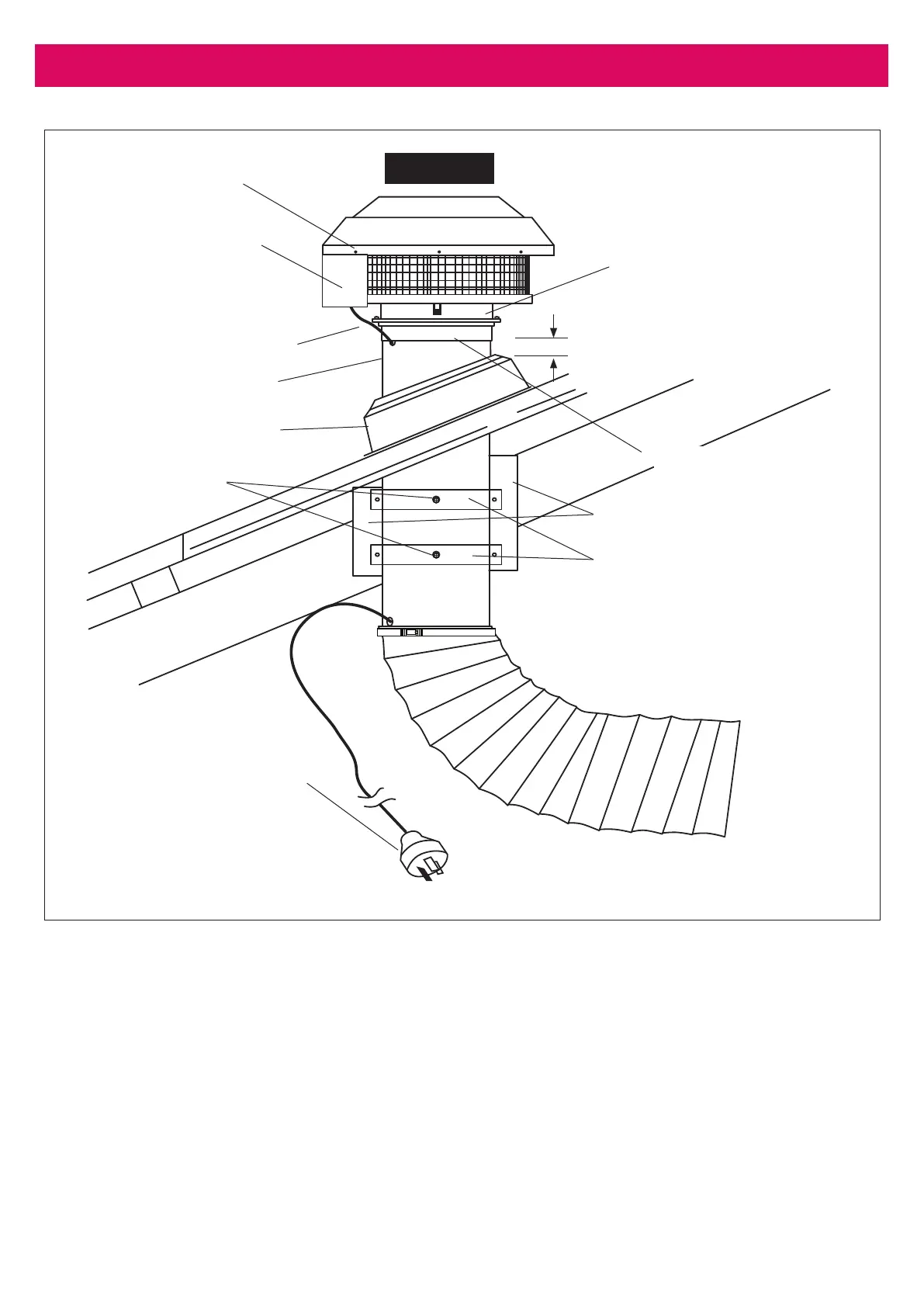

Figure 1: Roof mount option
Fix fan module using side
locking screw
Connect to
rangehood
Connect to socket from rangehood
NOTE: Prevent any cord bunching by
pulling cord through from plug top end
Fit side supports to locate pipe
Clamps/Straps to supports
Power Cord
Dektite (not supplied)
200mm metal Pipe
Backdraft shutter
50mm
Weather shield attachment
Locking screws to
secure
Weather shield
To Next Page
