Assembly Stage #8
Attach Console Mast to Main Unit
Assembly Hardware Required: (4) Allen Bolts 16 mm long (item #5)
(4) Curved Washers (item #6)
(4) Computer Screws (item #3)

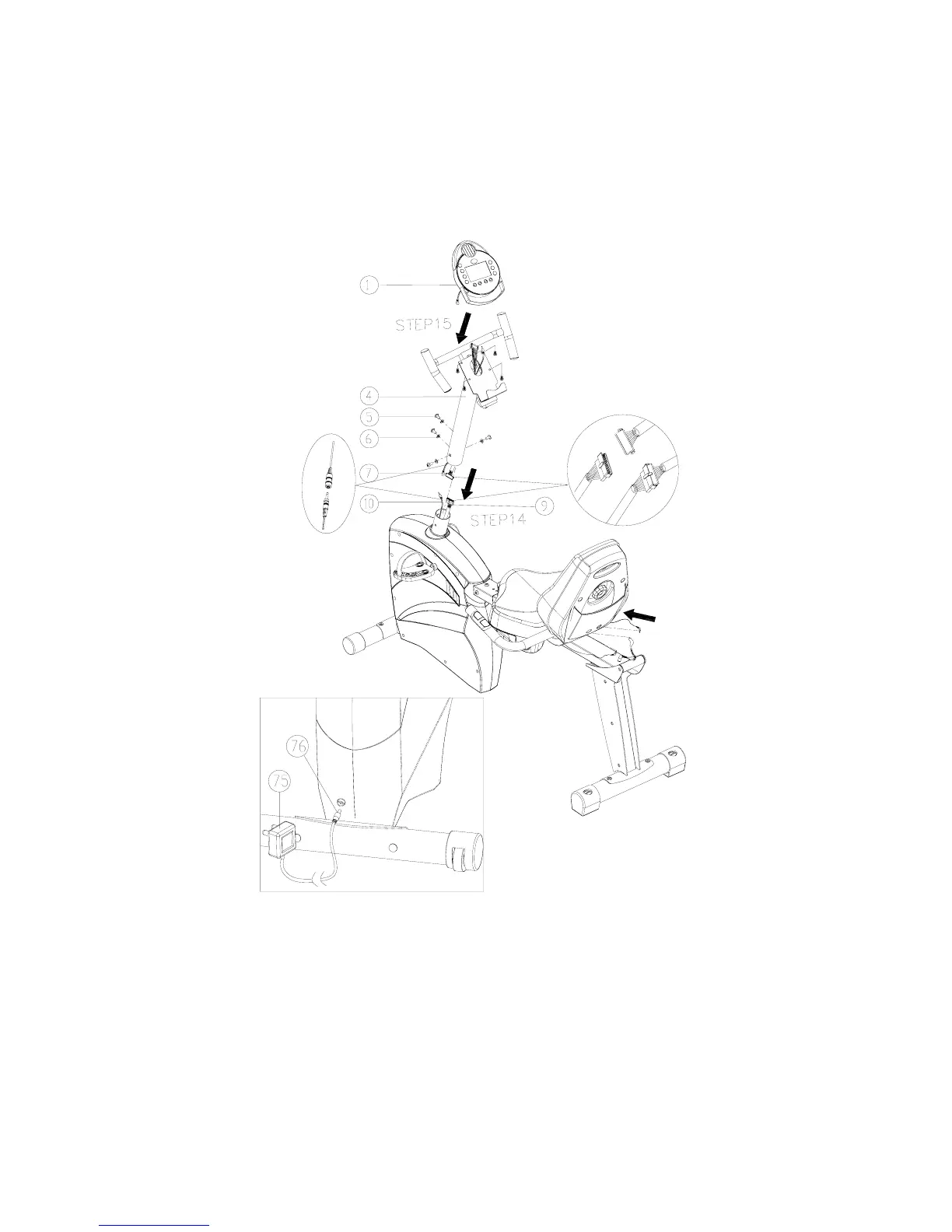

Step 14: Before sliding the HANDLEBAR POST (#4) onto the MAIN UNIT (#13),
attach both HR CABLES (#7 & #10) as well as the COMPUTER CABLE (#8 & #9).
Slide the HANDLEBAR POST (#4) onto the MAIN UNIT (#13). Fasten with 4 BOLTS
(#22) and 4 CURVED WASHERS (#19). Tighten with provided Allen wrench.
Step 15: Attach UPPER COMPUTER CABLE (#7) and HR CABLE (#8) to under side
of COMPUTER (#1). Place COMPUTER (#1) on top of HANDLEBAR ASSEMBLY
(#2), the reading rack should wrap around the bottom of the COMPUTER (#1). Attach
