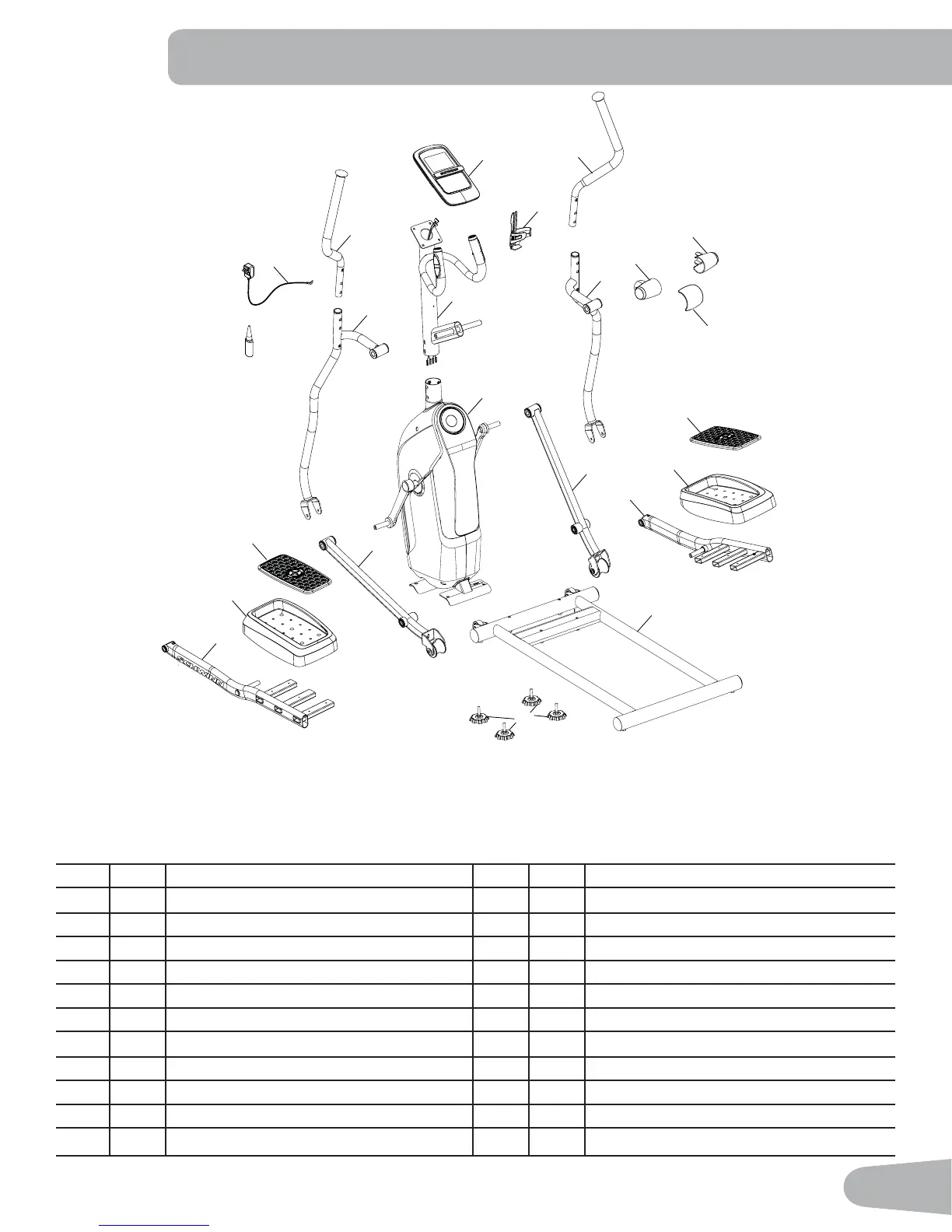

Schwinn 411 - PARTS LIST AND DIAGRAM

7
PARTS
A decal has been applied to all right (“ R ´) and left (“ L ´) parts to assist with assembly.
,WHP 4W\ 'HVFULSWLRQ ,WHP 4W\ 'HVFULSWLRQ
1 1 Console 12 1 Pedal Arm, Right
2 1 Console Mast 13 1 Right Leg
3 1 Frame Assembly 14 1 Rail Assembly
4 1 Water Bottle Holder 15 4 Leveler
5 1 Upper Right Handlebar Arm 1 1 Left Leg
 1 Lower Right Handlebar Arm 17 1 Foot Pad, Left
7 1 Handlebar Shroud, Left 18 1 Pedal Arm, Left
8 1 Handlebar Shroud, Right 19 1 Lower Left Handlebar Arm
9 1 Pivot Shroud 20 1 Upper Left Handlebar Arm
10 2 Foot Pad Insert 21 1 AC Adapter
11 1 Foot Pad, Right 22 1 Silicone Lubricant, Bottle
1
2
4
6
3
5
7
8
9
13
12
14
15
16
19
20
21
22
18
11
10
17
10
