Schwinn 490e - Page 24

24
SENSOR HUB
SERVO
Resistance Sensor
Speed Sensor
SUB ASSY, ENGINE
WIRE ASSY, SPLIT CBL
RESISTANCE SENS, SPEED
SENSOR, & SERVO
HANDLE BAR BUTTONS
CABLE ASSEMBLY, HUB
to MAST HARNESS
CONSOLE MAST
HANDLEBAR RIGHT
ASSY, CABLE/PCBA,
REMOTE BUTTON
- RESISTANCE
HANDLEBAR, LEFT
CONSOLE
ASSY, CABLE/PCBA,
REMOTE BUTTON
- INCLINE
WIRE ASSY - INCLINE
WIRE ASSY - RESISTANCE
WIRE, CABLE ASSY,
CONSOLE MAST
WIRE ASSY, CONSOLE TO MAST
CABLE, SPEED SENSOR
UP
DOWN
LEFT
RIGHT
LIFT CONTROL / POSITION
DC POWER
GND
CABLE, CONNECTOR WIRE POWER
RED
BLACK
WHITE
BLUE
BROWN
GND
LIFT MOTOR
SENSOR HUB
LIFT MOTOR CONTROL
OFFLINE POWER SUPPLY
BLUE
BROWN
SWITCH
INLET
HANDLE BAR BUTTONS
Section 1
Section 2
To Console Mast
To Handlebar
Incline Buttons
To Incline (Lift) Motor
To Handlebar Resis-
tance Buttons
Section 3

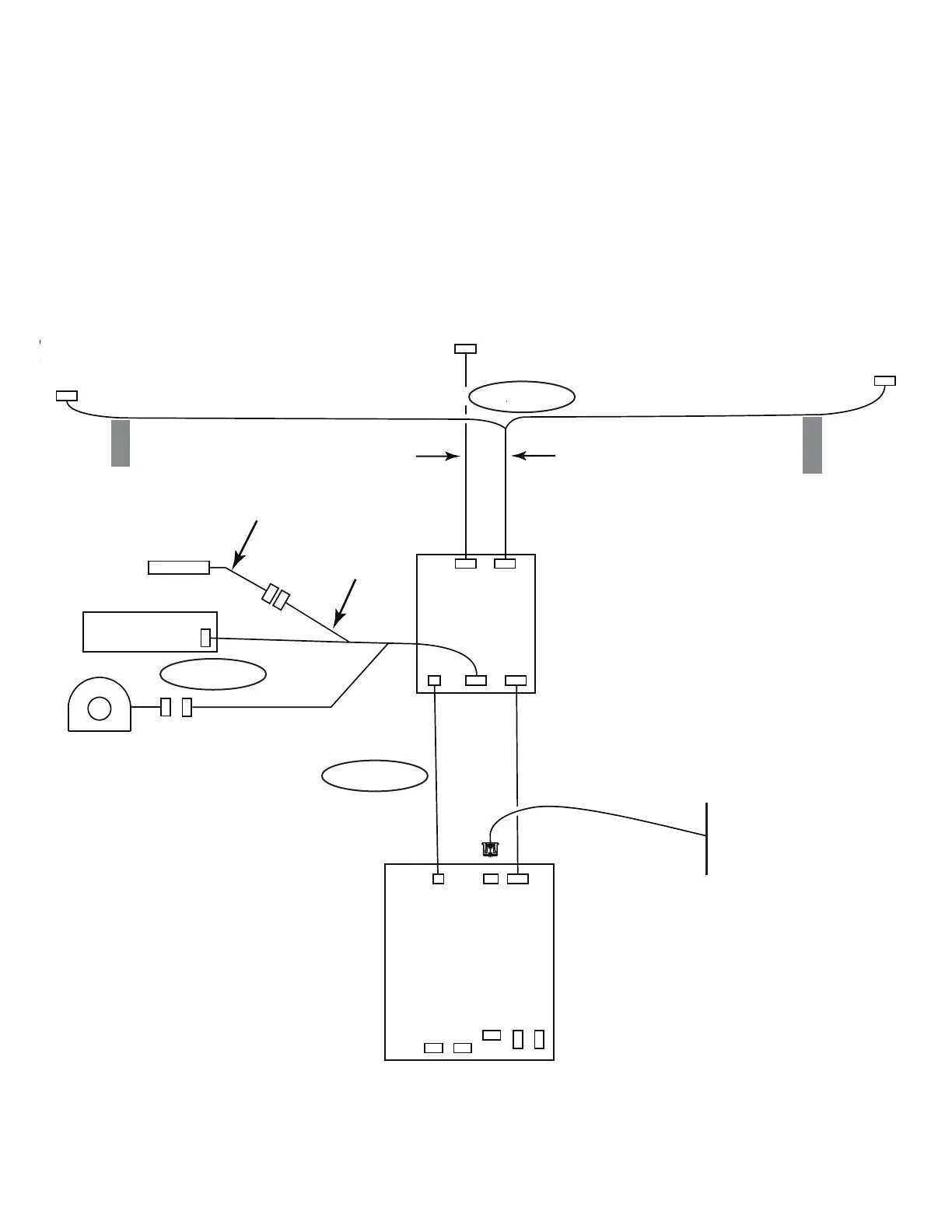

ELECTRICAL WIRING ROUTE DETAIL - Cables
To replace the:
O󰀪ine Power Supply to Sensor Hub (DC Power) and/or Lift Motor Control Cable Section 1 page 4
Split Cable (Servo, Speed and Resistance) Assembly Section 2 page 6
Sensor Hub to Upper Handlebar Buttons (Resistance and Incline) Cable Section 3 page 8
For Re-Assembly and Final Inspection Section 4 page 13
