Crank Arm
Crank Cap
Shroud
Crank Arm

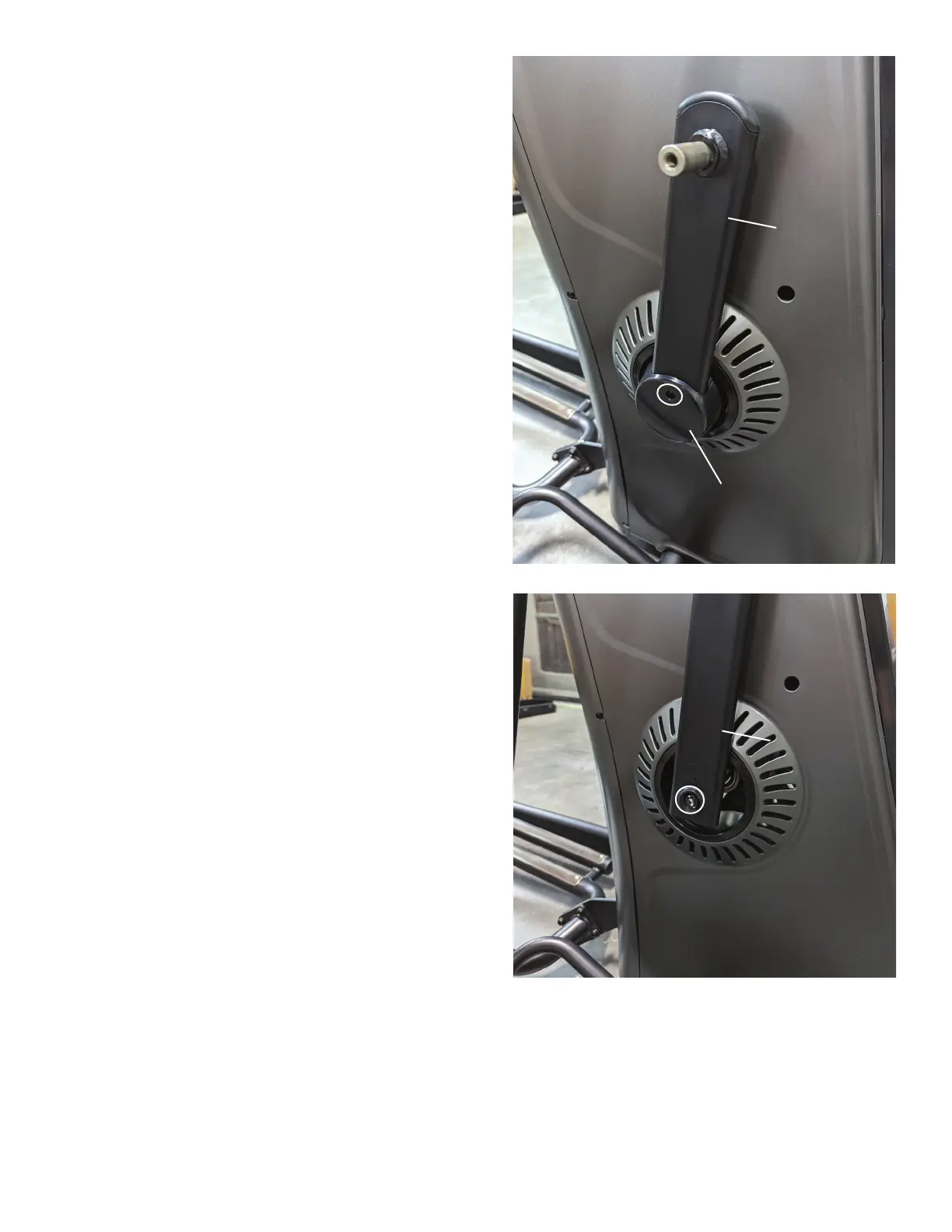

7. Using a #2 Phillips screwdriver, remove the indicated
screw from the Crank Cap Shroud from the Crank Arm.
8. Usinga14mmwrenchandsocket,removetheHexNut
from the Crank Arm.
