Schwinn 490e - Page 71

71

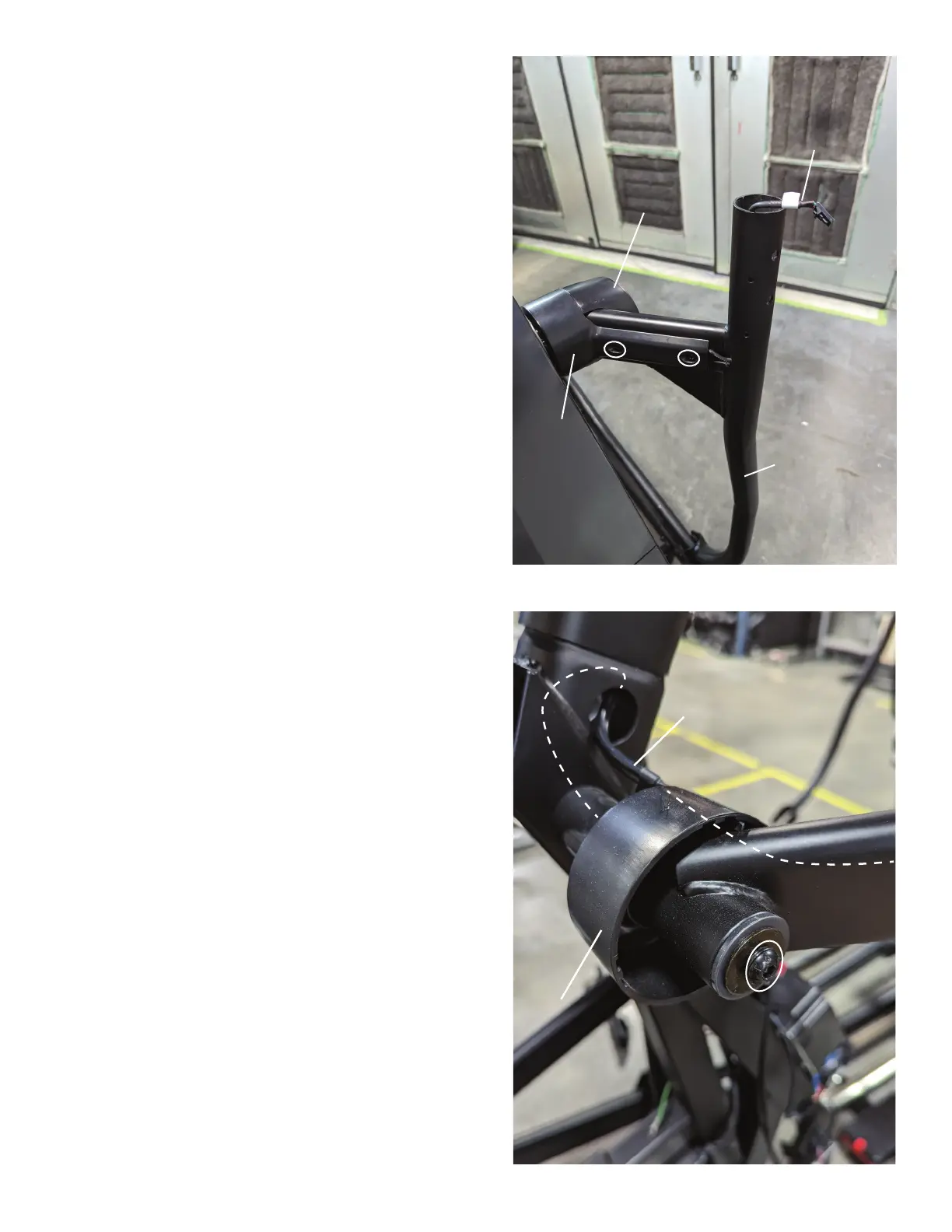

11. Gently compress the sides of the Pivot Cap to release it
from the Inner Pivot Shroud.
12. Using a #2 Phillips screwdriver, remove the 2 screws
from the Inner Pivot Shroud.
13. Tie a 60 cm (24 inch) long piece of wire or string to the
end of the Cable. This wire or string will be used to pull the
new cable through and out of the Lower Handlebar.
Pivot Cap
Inner Pivot
Shroud
Lower Handlebar
Handlebar
Cable
Sensor Hub to
Upper Handle-
bar Buttons
Cable
Inner Pivot
Shroud
14. Usinga6mmhexwrench,removethehardware
(indicated by oval) that secures the Lower Handlebar.
