Schwinn IC7 - Page 8

8

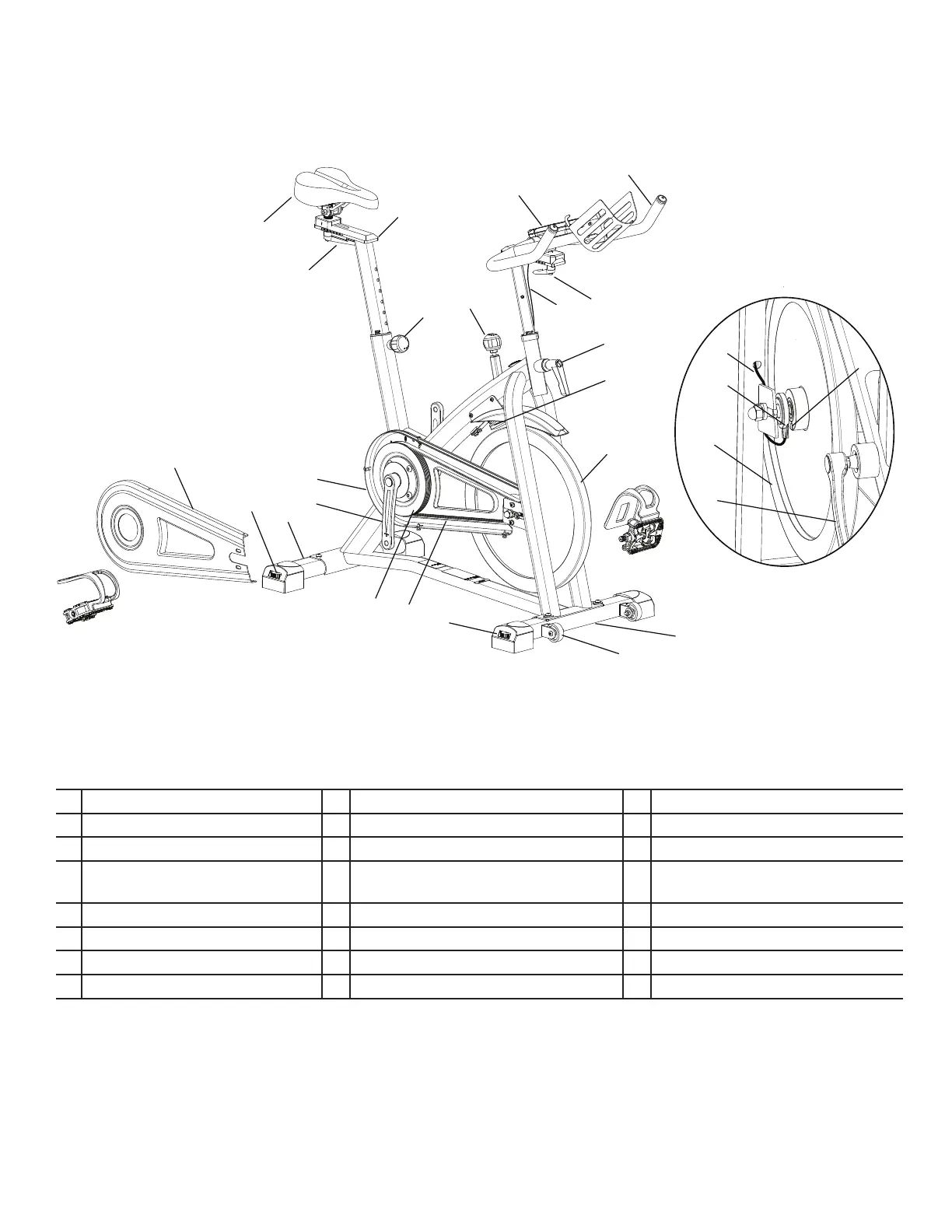

A Console I Crank Arm Q Leveler
B Handlebar J Pedal w/Foot Restraint R Speed Sensor Magnet
C Adjustment Handle K Seat S Speed Sensor
D Adjustment Handle, Handlebar
Post
L Seat Post T Drive Belt
E Brake/Resistance Knob M Seat Post Adjustment Knob U Drive Pulley
F Brake Assembly N Front Stabilizer V Data Cable
G Cover, Drive Belt O Transport Wheel W Flywheel
H Cover, Drive Belt Inside P Rear Stabilizer
G
W
I
I
S
R
H
M
W
A
B
L
C
C
Q
P
Q
O
E
N
K
V
V
D
F
T
U
J
J
Maintenance Parts
