Quick release
lever and
spring
Tab
washer
Slot
4
5
❸ Place the tab washer on the axle. Fit the tab into the slot
on the bicycle frame dropout. Note: If your bicycle frame
doesn’t have a slot in the drop out, rotate the tab to t
into the axle slot. Figure 4.8
❹ Insert the coupler plate onto the wheel axle. Figure 4.9
❺ Insert the quick release lever, spring and nut that were
removed in step 1 through the wheel.
❻ Rotate the quick release lever up and ghten. When
properly tightened, the quick release lever should leave
an imprint in your hand. The pressure should be firm but
not excessive.
19 Schwinn Trailblazer Double Seat

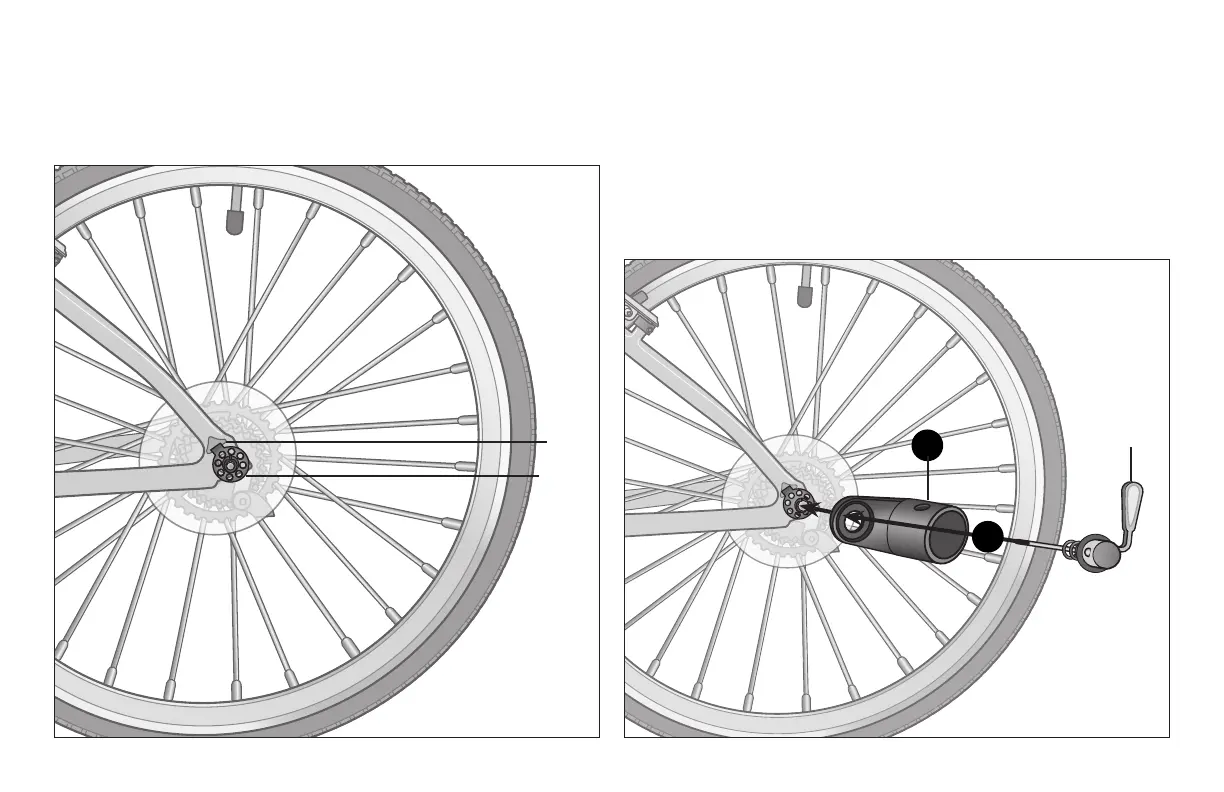

Figure 4.8 Figure 4.9
