Page 20
637-8808 Rev. J

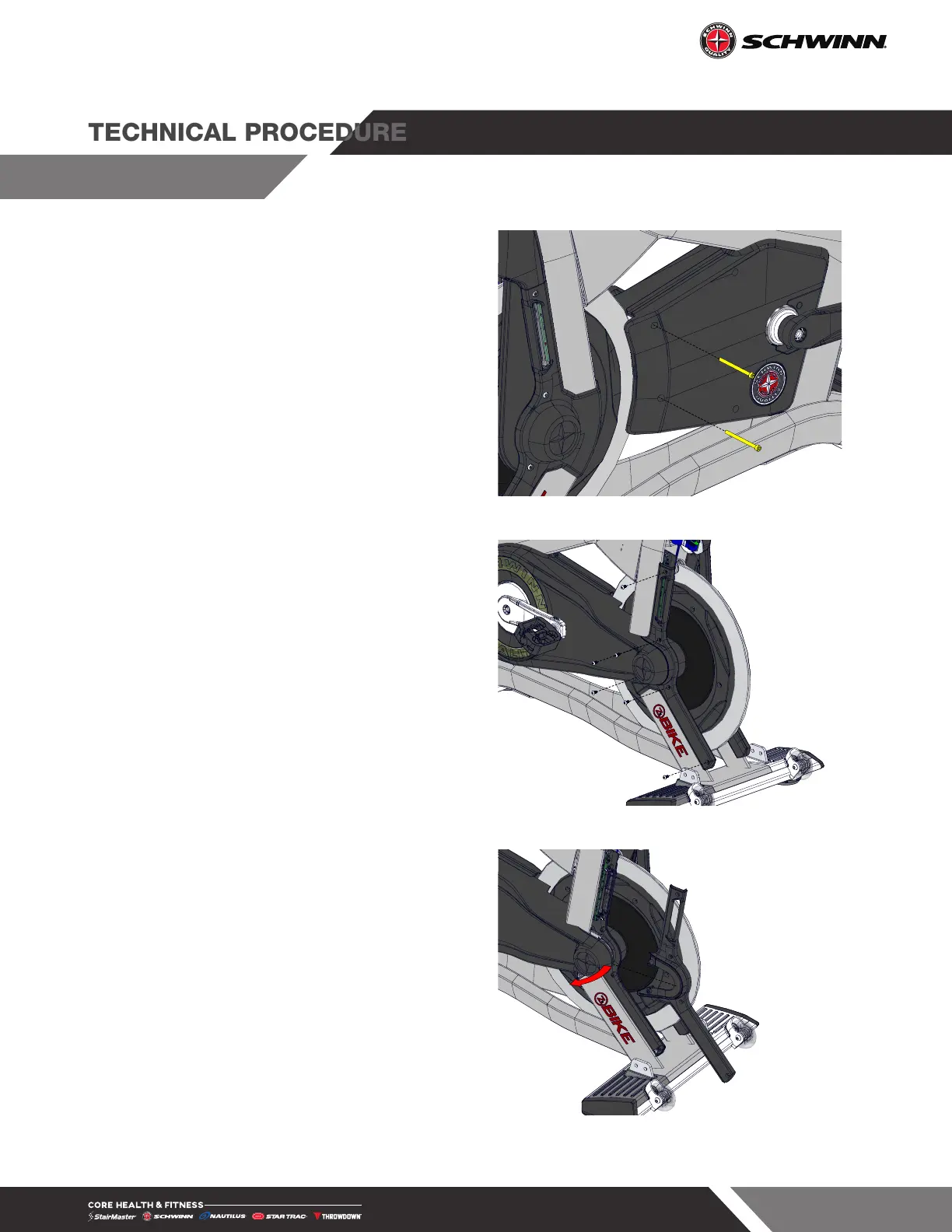

3. Use a 4mm allen key to remove the two (2)
socket head cap screws from the front of the
left side belt guard.
Fig. 38
4. Use a 3mm allen key to remove the two (2)
button head cap screws from the front of the
right side belt guard, then remove the four (4)
button head cap screws securing the right
side, outer fork guard from the frame.
Fig. 39
5. Carefully lift the front of the right side belt
guard away from the frame, then remove the
right side fork guard.
Fig. 40
