Technical Procedure
Z Bike LED Board Replacement
2
Required Tools:
• 3mm Allen Key
• 4mm Allen Key
• #2 Phillips Screwdriver
Required Parts:
• 740-9602 “MODULE, LED, MULTI-COLOR, GROUP CYCLE”

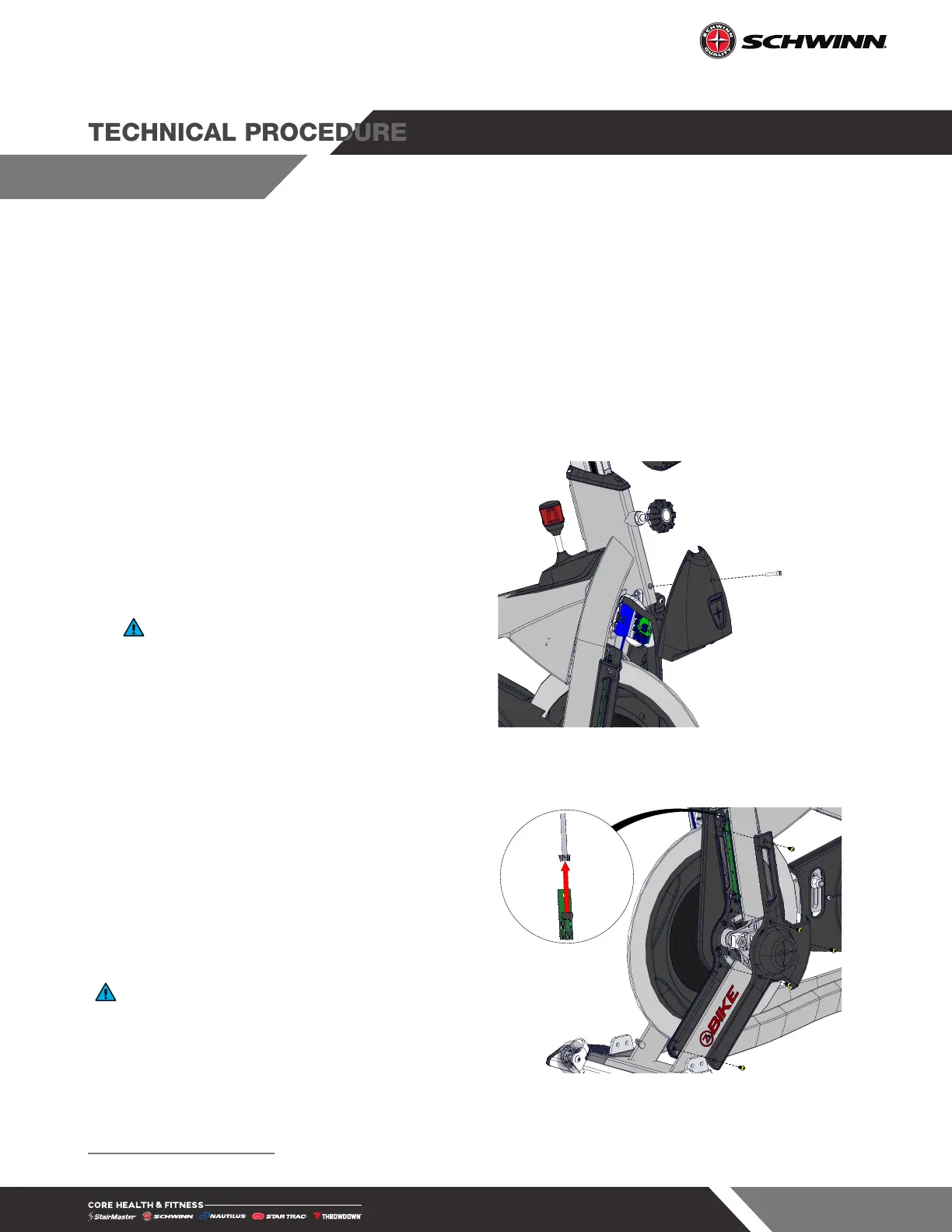

1. Use a 4mm allen key to remove the socket
head cap screw from the nose cap, then
remove the nose cap.
Please continue to Step 2 ONLY if
replacing the left side LED board, otherwise
skip to Step 3.
Fig. 36
2. Use a 3mm allen key to remove the five (5)
button head cap screws securing the left side
outer fork cover to the frame, remove the
cover, then disconnect the LED cable from
the LED board. Skip to Step 6.
Notice: While the instructions below show the
right side LED board replacement, they are still valid
for the left side LED board replacement.
Fig. 37
2 Applies to: Schwinn Z Bike (9-7510 + 9-7520)
