Technical Procedure
Tighten Loose Seat or Handlebars or Seat
Required Tools:
• #2 Phillips Screwdriver
• Torque Wrench
• 10mm Deep Socket
• 3mm Allen Key
NOTE: While the images below show a Schwinn Z cycle, this procedure is also applicable for the Schwinn X
cycle.
Handlebars
1. Flip the fore/aft adjustment lever up.

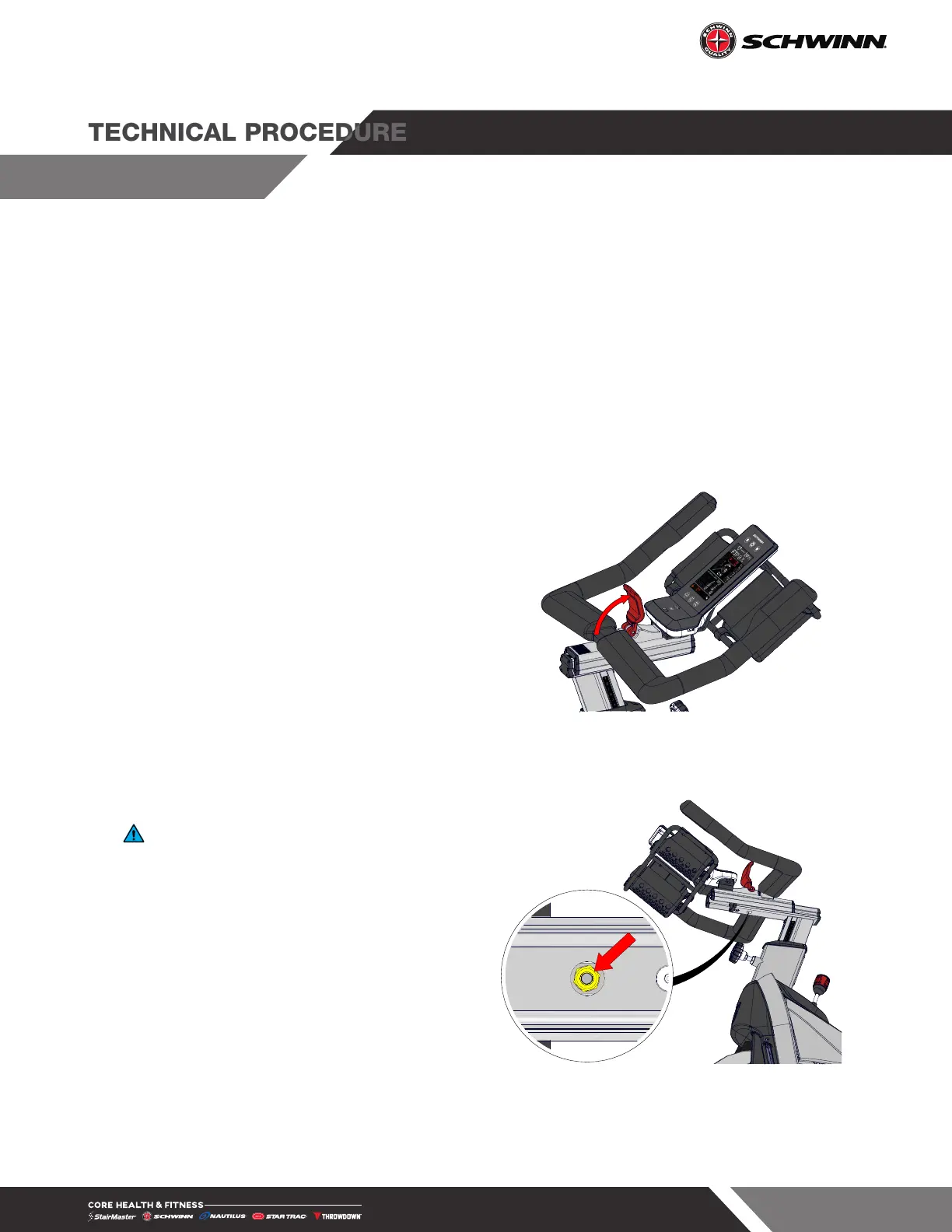

Fig. 10
2. Move the handlebars forward until the fore/
aft adjustment lever nut is visible through the
hole on the underside of the handlebar post.
Notice: If a torque wrench is not available,
please skip to Step 4.
3. Close the fore/aft adjustment lever, then use
a torque wrench with a 11mm deep socket
to tighten the fore/aft lever adjustment nut
to 3 Nm (2.21 Ft-Lbs). This will conclude the
procedure.
4. With the fore/aft adjustment lever up, tighten
the adjustment lever nut 1/4 of a turn, then
close the adjustment lever and check the
function by pushing backwards on the
handlebars - they SHOULD NOT move.
5. Repeat Step 4 as needed until the handlebars
are tight. This will conclude the procedure.
Fig. 11
