Page 22
637-8808 Rev. J

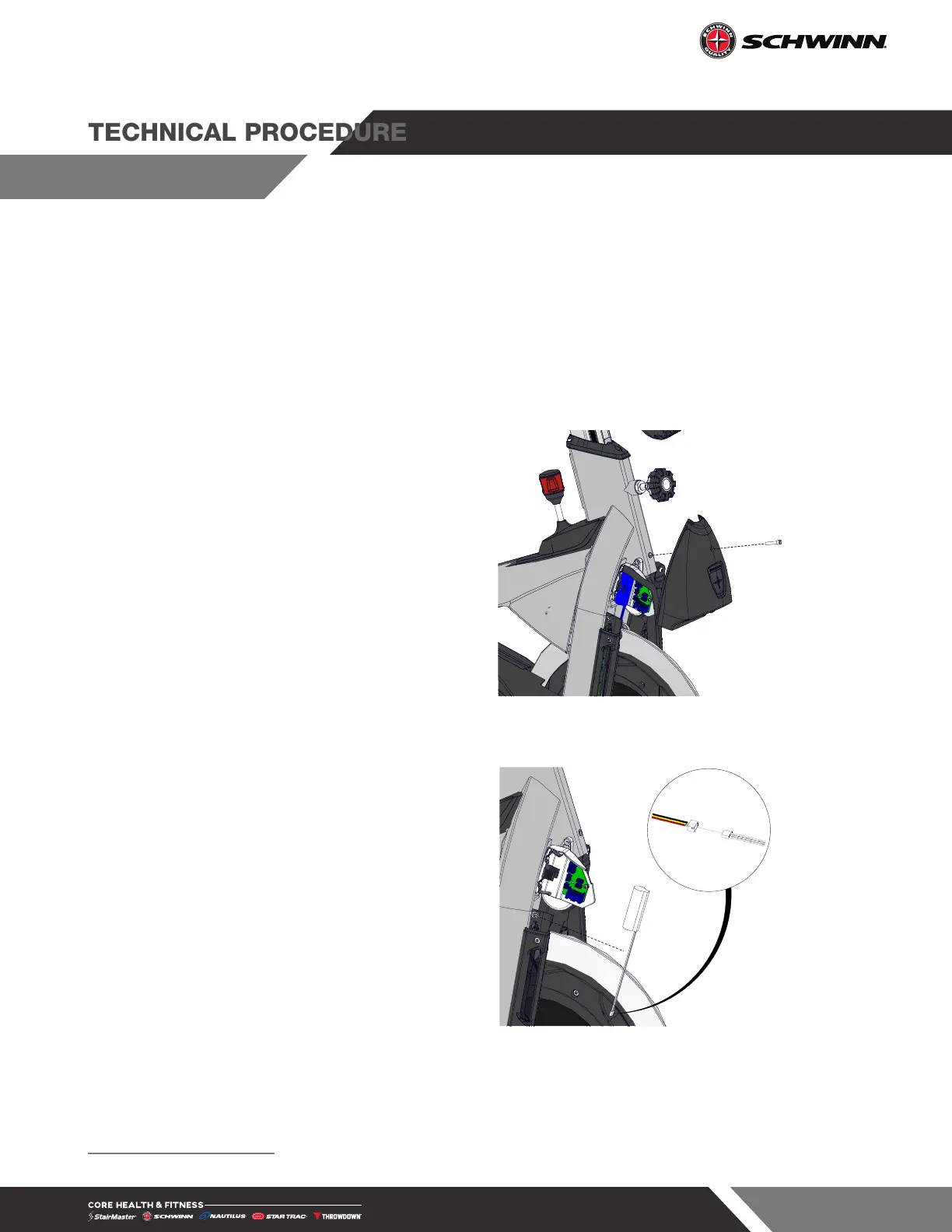

Z Bike Battery Replacement
3
Required Tools:
• 4mm Allen Key
• Small Phllips Screwdriver
1. Use a 4mm allen key to remove the M5 x
30mm socket head cap screw securing the
nose cover to the frame, then remove the
cover.
Fig. 43
2. Disconnect the battery from the battery
service cable.
3. Remove the battery from the battery retention
clip and replace.
Fig. 44
3 Applies to: Schwinn Z Bike (9-7510 + 9-7520)
