Schwinn Z - Seat

Page 8
637-8808 Rev. J

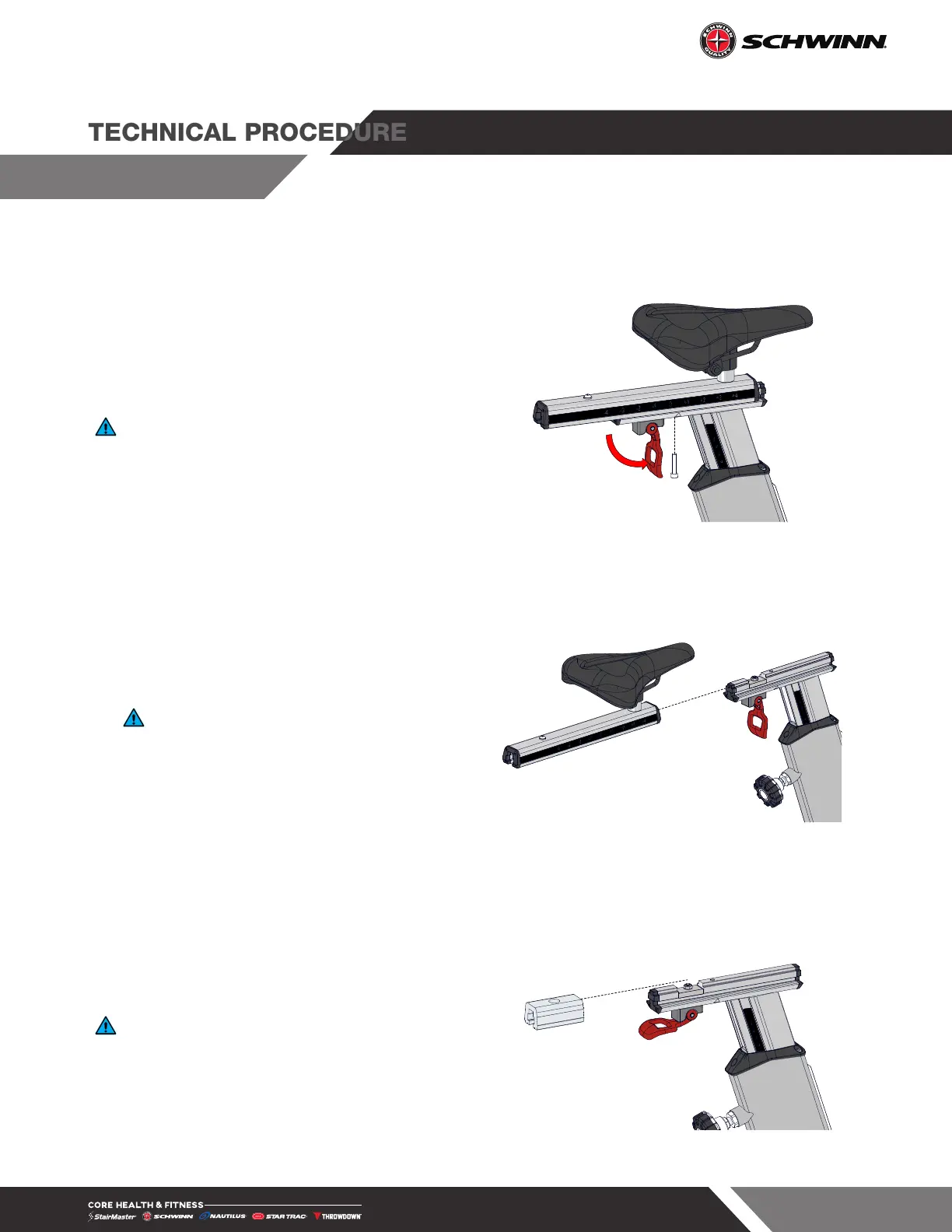

Technical Procedure
Seat
1. Use a 3mm allen key to remove the socket
head cap screw from the underside of the
seatpost.
Notice: When reinstalling the this screw, be sure
to torque to 2 Nm (9 Ft-Lbs).
Fig. 12
2. Remove the seat slider assembly from the
seat post.
Notice: If a torque wrench is not available,
please skip to Step 5.
Fig. 13
3. Install 300-0245 “BLOCK, GAUGE, TORQUE,
SEAT, UGC” onto the seat slider so the lever
adjustment nut can be accessed through the
hole int he top of the torque block.
Notice: Step 3 is ONLY valid for bikes PRIOR
to serial number GC7470L22091069 (Schwinn XA),
GC7520L21491157 (Schwinn ZA), GC7510L2213127
(Schwinn ZS), GC7480L22141001 (Schwinn XS).
Fig. 14
