Page 24
637-8808 Rev. J

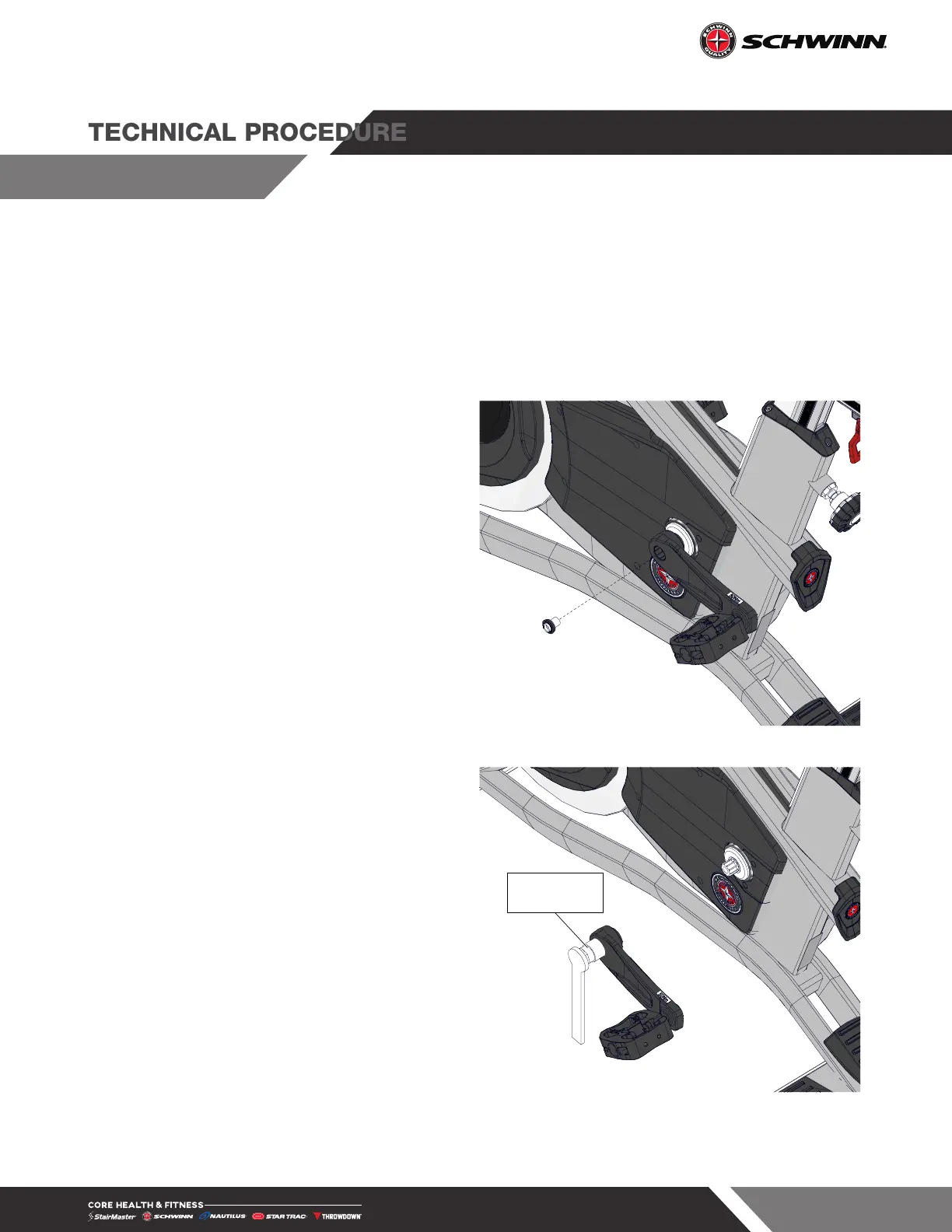

X+Z Bike Crank Arm Removal
Required Tools:
• 8mm Allen Key
• Crank Puller Tool with 22mm X 1mm Threading (CWP-7)
1. Use an 8mm allen key to remove the crank
bolt securing the crank arm to the bottom
bracket.
Fig. 46
2. Use a crank puller tool with the large tip to
remove the crank arm. Note that the pedal
may need to be removed (see Page page
25) depending on the handle length of the
crank puller tool.
3. Repeat Steps 1+2 for the other crank arm.
4. To install new crank arm(s), refer to the
documentation included with the crank arm.
Fig. 47
