Z Bike Gear-Angle Sensor Replacement
1
Required Tools:
• 4mm Allen Key
• #2 Phillips Screwdriver
•
Required Parts:
• 718-6131 “ASSY, SENSOR, ENCODER, ACPU”

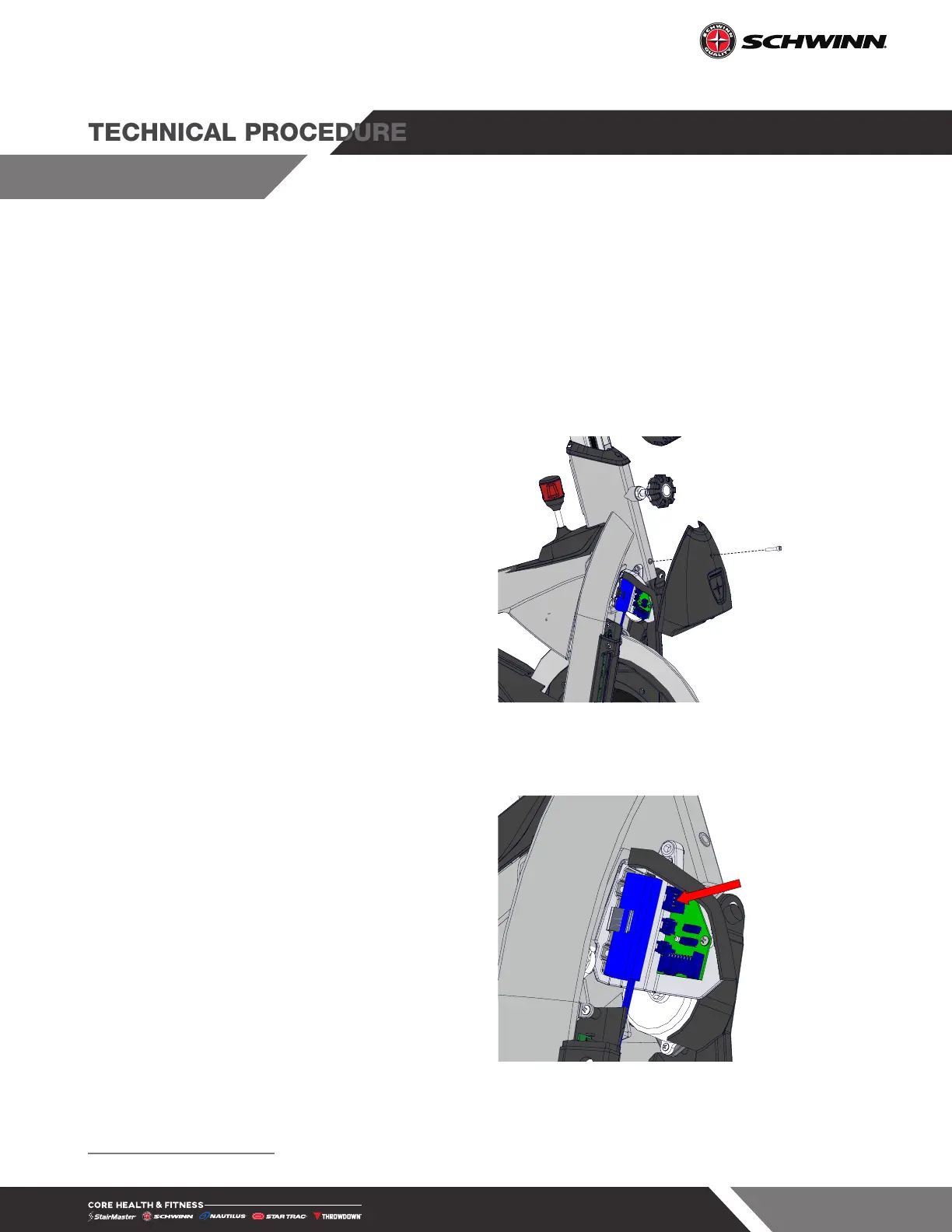

1. Use a 4mm allen key to remove the socket
head cap screw securing the nose cover to
the bike, then remove the cover.
Fig. 31
2. Disconnect the gear sensor from the junction
board.
Fig. 32
1 Applies to: Schwinn Z Bike (9-7510 + 9-7520)
