Scientific PSD7303A - The Front Panel

Scientific
PSD7303 10/42

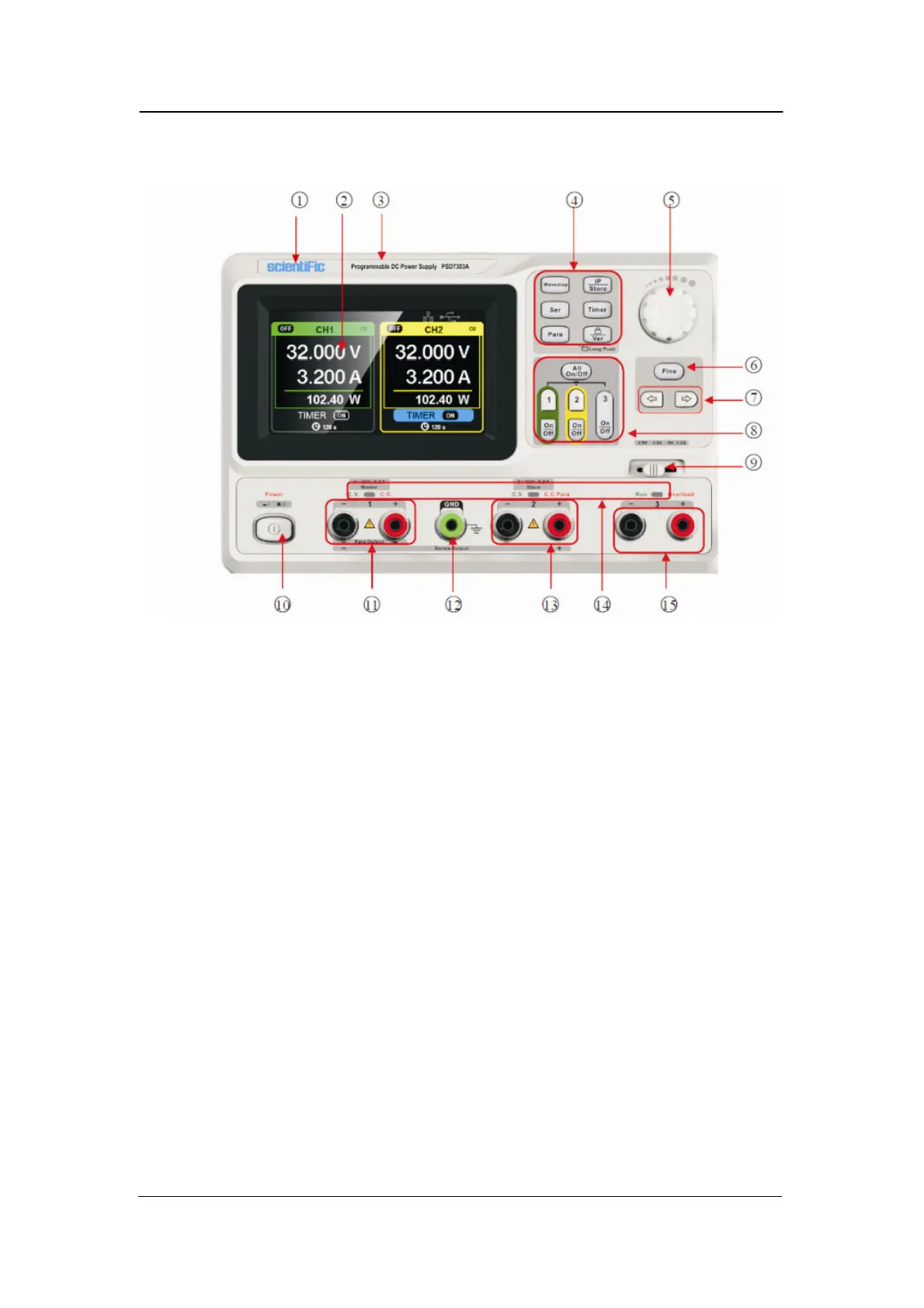

The front panel
Description
1. Logo
2. Display Area
3. Model
4. System Parameter Configuration Button
5. Multi-function knob
6. Fine Adjust button
7. Right/Left Direction button
8. Channel Control Button
9. CH3 DIP switch
10. Power Switch
11. CH1 output terminal
12. Ground Terminal
13. CH2 Output Terminal
14. CV/CC Indicator Light
15. CH3 Output Terminal
