Scientific
PSD7303 13/42

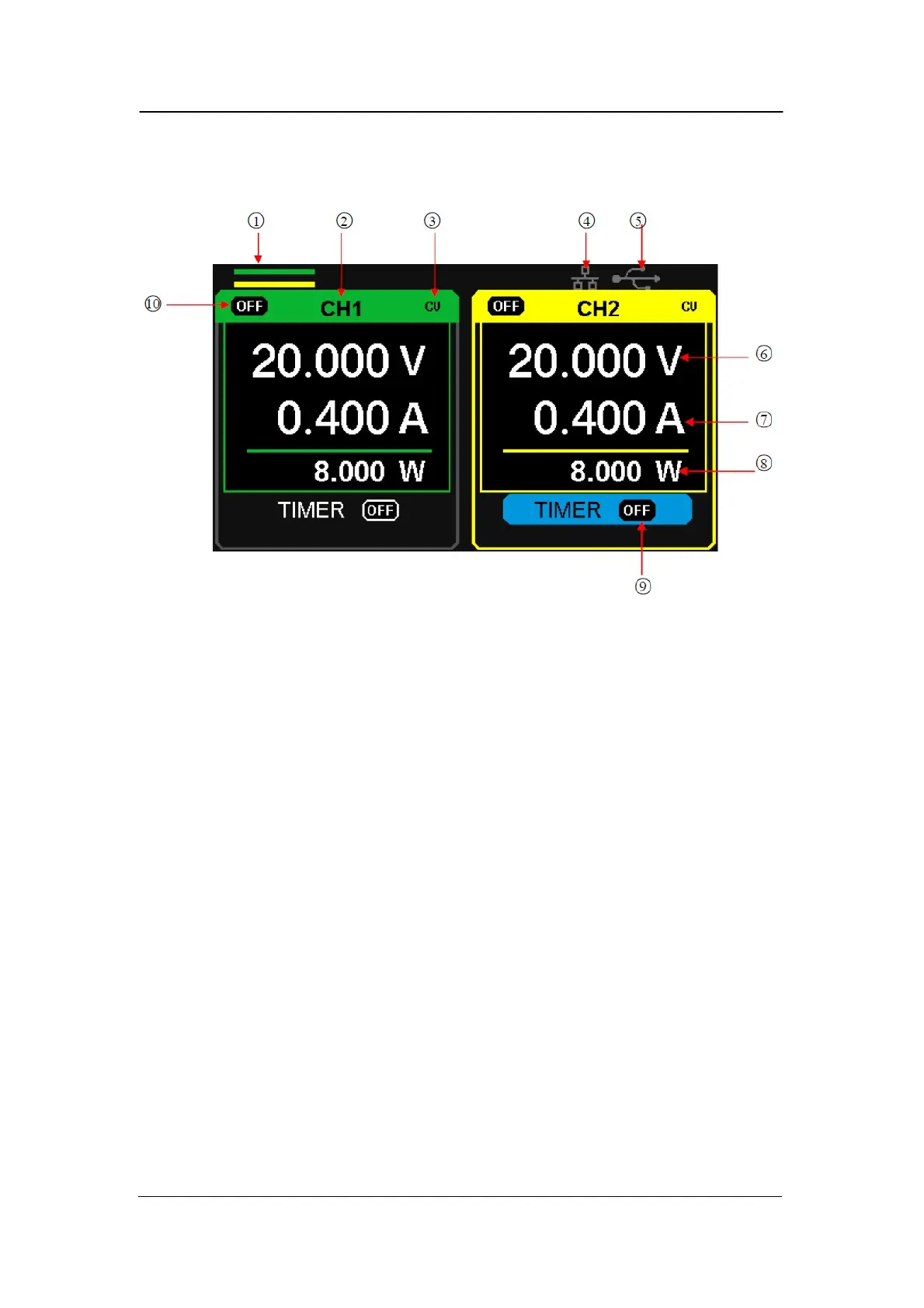

User interface
1. Parallel/Series logo: The logo will be displayed when the corresponding
mode is on.
2. Channel logo
3. Operating mode logo: The corresponding logo will display when
working in CV or CC mode;
4. LAN logo: It will display when there is a LAN connection
5. USB logo: It will display when there is a USB connection;
6. Voltage value;
7. Current value;
8. Power value;
9. Timer lD: Timer state identification
10. Channel on/off logo;
