 P17: Cruise. 0: cruise function deactivated, 1: cruise function activated.
5. Error Code
6. Connection
Display to Controller Controller to Display Controller Connector
Error Code (decimal)
Status
Note
E00
Normal
E01
Reserved
E02
Brake Error
E03
PAS Sensor Error (Riding Mark)
Not Realized
E04
Walk Assist Mode
E05
Real-Time Cruise
E06
Low Voltage Protection
E07
Motor Error
E08
Throttle Error
E09
Controller Error
E10
Communications Error
E12
BMS Communications Error
E13
Front Light Error

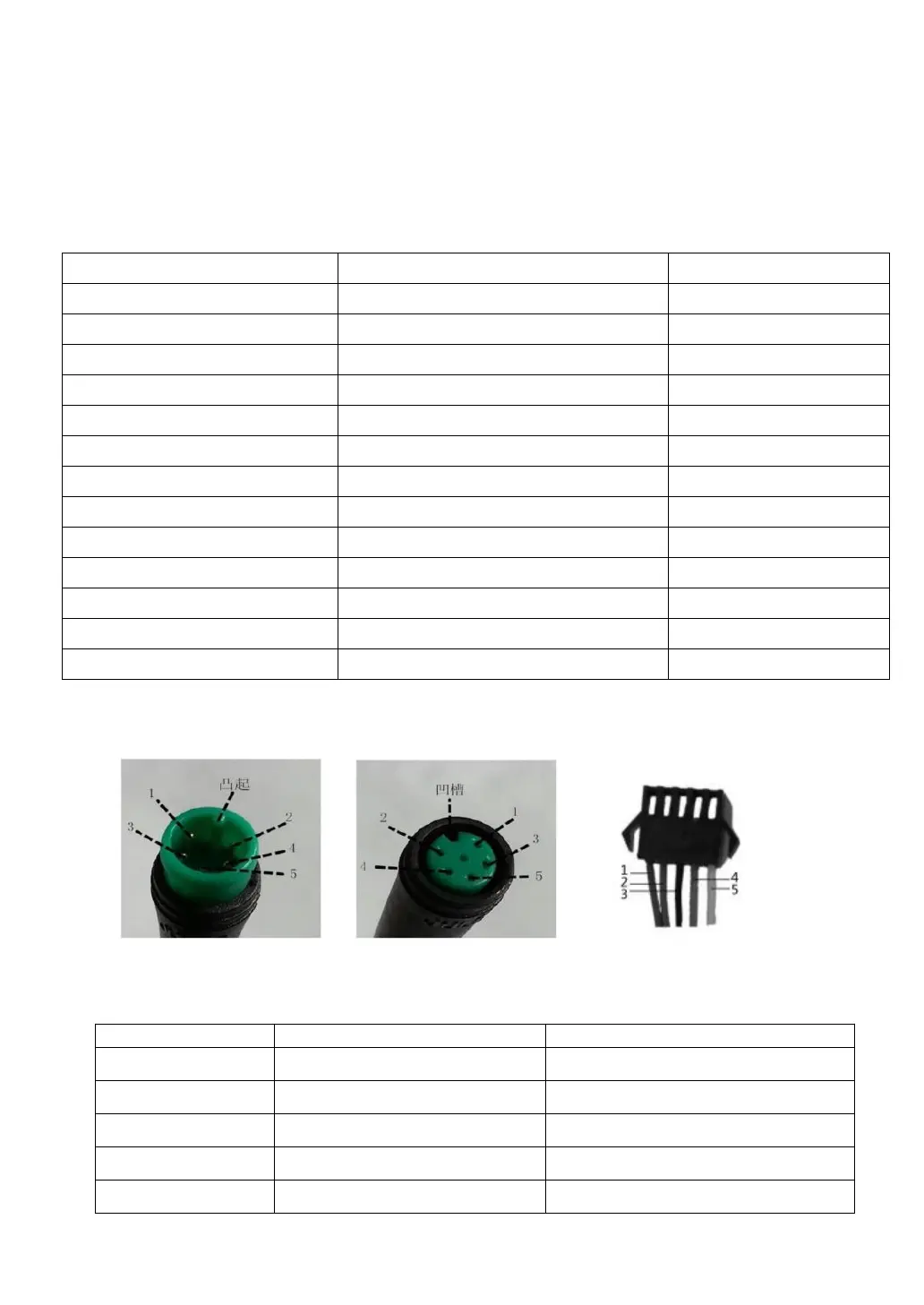

Pin No.
Wire Color
Functions
1
Red
（
VCC
）
Display Power Wire
2
Blue（K）
Electric Lock Wire
3
Black（GND）
Display Ground Wire
4
Green（RX）
Display Data Receiving Wire
5
Yellow
（
TX
）
Display Data Sending Wire
