The Scosche M8RIX is a Hi-Current Switching system designed to manage and control various accessories in a vehicle. It consists of a Touchscreen Control Panel, a Distribution Module, and associated wiring components.

Function Description:

The M8RIX system allows users to control up to eight different accessories through a central touchscreen display. It acts as a sophisticated power distribution and switching unit, enabling users to turn accessories on/off, adjust their output levels, and configure various operational parameters. The system is designed for ease of use and offers advanced customization options for managing vehicle accessories.

Important Technical Specifications:

Display:
- 3.5" Touchscreen Display
- Weatherproof (IPX6)
- Brightness Dimming (0-100% for Day/Night)
- Flexible mounting options (AMPS pattern, 1/4"-20 female socket, 15-20mm ball included)
- Amps Adapter Included
- MagicMount Compatible Back plate
- 57 Selectable Button Icons
- Customizable Button Naming
- Selectable Button Colors (Blue, Green, Red, Orange, Yellow, Pink, Teal)
- 16 Background Choices
- Voltage & Current Display (Total Amp Load, System Voltage)
- Shows internal PCB output device temperatures on the Monitor Screen
Distribution Module:
- Max. Output Current: 130A (All Channels Driven)
- Max. Output Current Each Channel:
  - CH1-2: 30A x 2 (10 AWG minimum wire)
  - CH3-4: 15A x 2 (14 AWG minimum wire)
  - CH5-8: 10A x 4 (14 AWG minimum wire)
- Max Inrush Current: 85A - 500ms
- Sleep Current: <500uA
- Operating Voltage Range: 9 - 16V DC
- Max Operating Temp: -40C-105C
- Dimensions: 9 1/16" x 5.8" x 5"
- Mounting Hole Spacing: 9 9/16" x 5"
- Waterproof (IPX7 for full submersion, IPX6 for splashing/spraying)
Cables:
- Distribution Module to Display Cable (8-pin male to 90-degree female)
- Ignition & Illumination Cable (4-pin male)

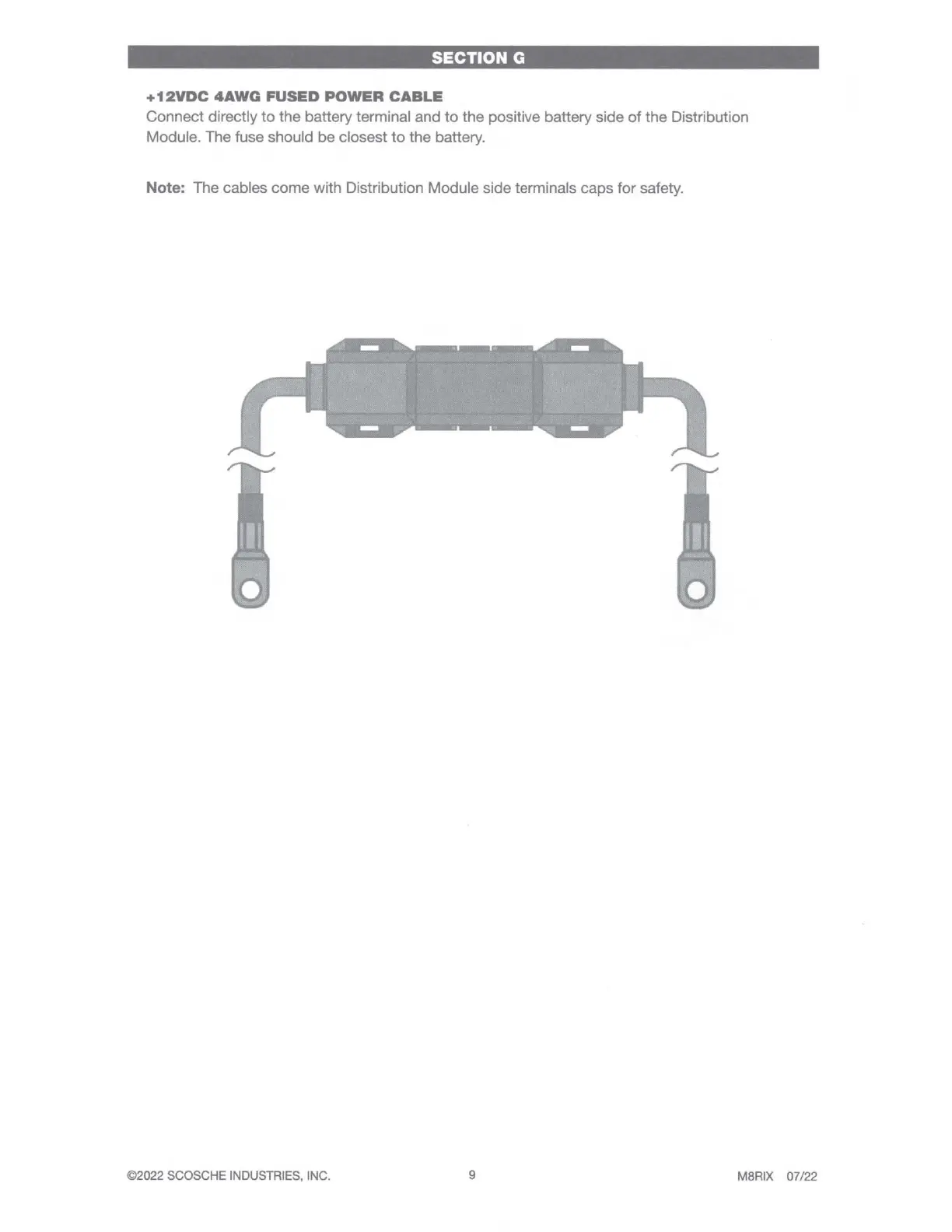

- +12VDC 4AWG Fused Power Cable (connects to battery positive post)
- 4AWG Negative Ground Cable (connects to battery negative post or chassis ground)
- Terminator Plug (8-pin)

Usage Features:

Channel Configuration:
- Action Types: Momentary (ON when pressed), Dimming (Long Press to adjust brightness), Latched (ON/OFF Switch), Strobe (Fixed 20Hz flashing), None (Blanks out Button).
- Customization: Choose custom icons, rename channels (up to 10 alphanumeric characters), adjust output levels (10% to 100%).
- Dependencies:
  - Block: Blocks selected channels when the BLOCKING channel is ON or OFF.
  - Force: Turns ON/OFF selected channels with FORCING channel ON/OFF.
  - Link: Turns selected channels ON/OFF with Forcing Channel (Forced channels act independently when individually pressed).
- SOS: Allows for SOS flash on Long Press when enabled on a Strobe Channel.
- Delay: Delays Channel Output for a variable duration (button light not delayed).
- Timeout: Variable turn OFF time (1sec - 24Hr) triggered by SWITCH OFF setting.
- Switch Off Options: With Ignition (No Delay), With Timer (Channel turns off after timeout), With Ignition Then Timer (Timer starts after Ignition is switched off).
Group Configuration:
- Ability to group 2 channels together to handle twice the output current.
- Group up to 8 channels to work off of a single button.
Mapping: Remap channel/group positions on the Display Module screen. Note: This does not change actual output channels.
Settings:
- Picture Settings: Adjust day and night brightness, set Day/Night/Automatic mode (changes with illumination if +12V Illumination wire is connected).
- Preferences: Temperature units (C/F), Module Label, Select Config Via (Module/List), Module Management (NOT RECOMMENDED TO CHANGE), Show Temperature.
- Background: Swipe or Short Press logo to switch backgrounds.
- Button Color: Short Press on desired color, Short Press SHOW COLOR to see colors instead of names.
- Language: English, Français, Español.
- Version: Shows SW build versions.
Navigation:
- Single Tap: Toggle through pages and group selection.
- Double Tap: Enter Channel Monitor page (view real-time power consumption per channel) or exit Channel Monitor page (return to Main Screen).
- Press and Hold: Enter Quick Config. Mode.
- Return Arrow (←): Go back to the previous screen.
- X (upper right corner): Enter Save Changes menu (Save, Discard, or Return to Programming).
Installation:
- The Distribution Module should be mounted to a sturdy, flat surface using 1/4" (6.35mm) hardware. Keep away from extreme heat sources and moving parts.
- The top of the unit must receive free airflow as it can get hot.
- Data connectors must be properly aligned to avoid damage to contact pins. Hand tighten only.
- Terminator Plug must be installed in the Distribution Module's open 8-pin female connector, or the last module in a multi-module chain.
- Disconnect the vehicle's negative battery terminal before installation to prevent electrical damage.
- Use a volt/ohm meter over a test light to check wiring. Avoid factory airbag wiring.

Maintenance Features:

Water Protection:
- IPX6 (splashing/spraying): Skip silicone grease steps.
- IPX7 (full submersion):
  1. Evenly fill female connectors with silicone grease slightly below the flat shoulder or pin tips.
  2. Plug in male connector, wipe off excess grease.
  3. Plug in connectors.
  4. Ensure all compression brackets are properly installed and tightly snapped in.
Temperature Management: The system is designed to operate within a wide temperature range (-40C-105C). Extremely high temperatures may temporarily affect the display, with normal operation resuming once the unit cools.
Data Saving: The M8RIX saves changes to non-volatile memory on ignition shutdown. Disconnecting or shutting off main power before ignition shutdown will result in losing programming changes. Once ignition is shut down, all changes are saved even if main power is disconnected.
Factory Reset: Option to return Display or Module to factory settings, losing all changes.
