ENGLISHENGLISH
95 |
MOUNTAIN BIKE AND MOUNTAIN BIKE-PEDELEC | ORIGINAL OPERATING INSTRUCTIONS 2017ORIGINAL OPERATING INSTRUCTIONS 2017 | MOUNTAIN BIKE AND MOUNTAIN BIKE-PEDELEC
| 94

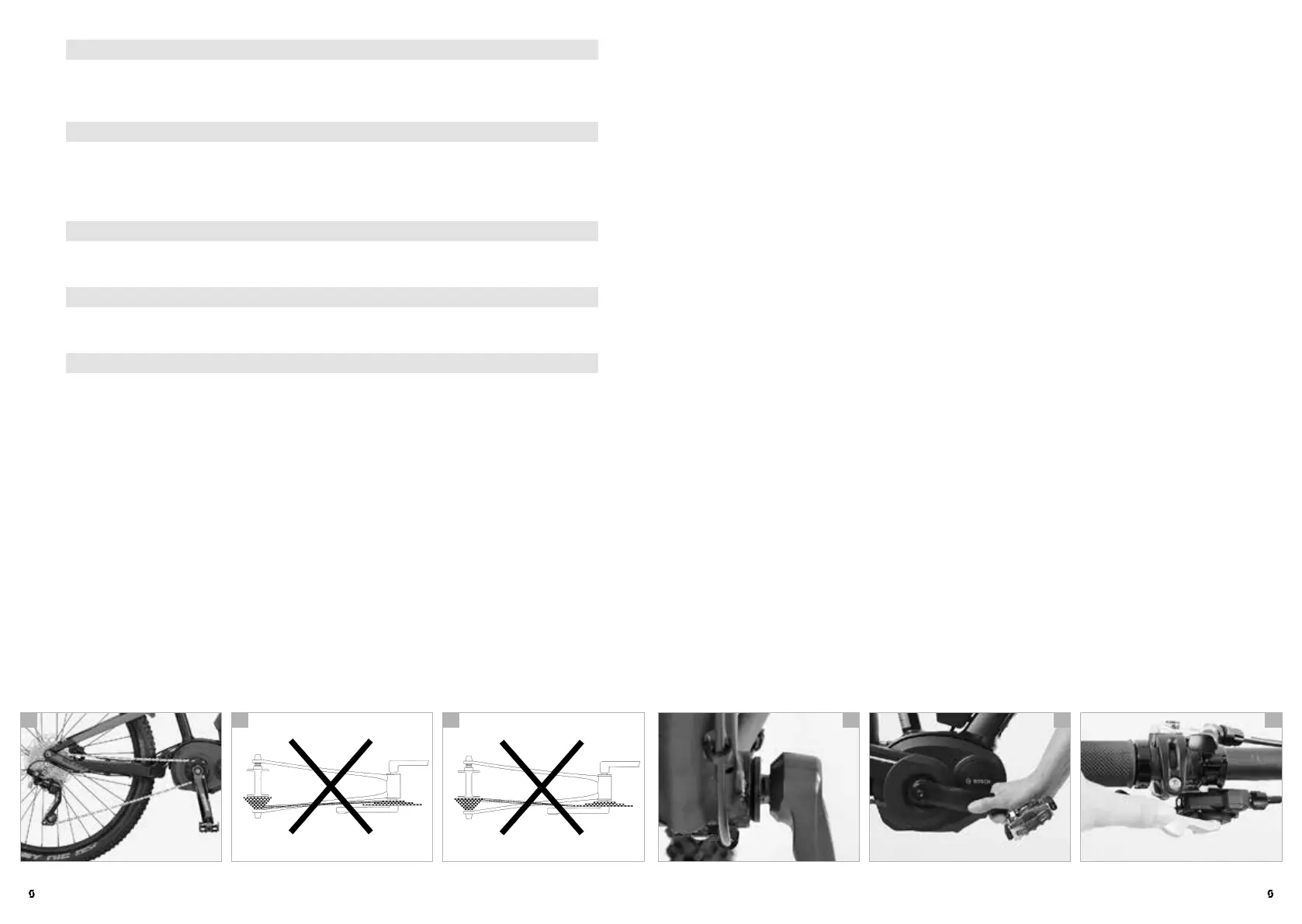

b ca e fd
Modern SCOTT mountain bikes can have up to 33 gears. As there are, however,
overlapping ranges, actually 15 to 18 gears are usable. It is not advisable to use
gears which involve an extremely oblique run of the chain, as this reduces power
transmission efficiency and hastens wear of the chain.
The chain runs unfavourably when the smallest chainring is used with one of the
two or three outermost (smallest) sprockets (b) or when the largest chainring is
used with one of the inmost (largest) sprockets (c).
The bottom bracket (d) is the interface between cranks and frame. There
are different designs, in some cases the bearing spindle is part of the bottom
bracket, in some other cases it is integrated into the right crank. Sealed bottom
brackets are maintenance free and delivered without play ex works. The bottom
bracket in the frame must be checked for play at regular intervals.
Also check at regular intervals whether the cranks are firmly attached to the
bearing spindle or whether there is play. Grab the crank and try to jiggle it force-
fully. It must be absolutely free of play (e). If you notice any play, contact your
SCOTT dealer immediately.
Depending on the gear system, gear shifting is initiated by actuating a shift
lever, a brake and shift lever unit or by a short turn of the wrist with twist grips.
Continue pedalling during gear shifting, however, at reduced pedalling force.
Please find below the principles of the shift lever types and their operation. It is,
however, also possible that your new SCOTT bike has a gear system that is not
listed below.
With shift levers pressing the large shifter (f) (thumb shifter) normally moves
the chain towards the larger chainrings/sprockets.
That means that any gear shift with the right thumb produces a lower gear. This
is an indexed shifting system with the option of shifting several gears with one
action. Actuating the large thumb shifter on the left produces a higher gear.
DANGER!
G
Continue pedalling at reduced cadence during gear shifting, however, at
clearly reduced pedalling force. In particular when shifting through the
chainrings continue pedalling slowly and without force.
DANGER!
H
With SCOTT pedelecs reduce the cadence and the pedalling force short-
ly before you start shifting. In doing so there is a short interruption of the
drive. If you continue pedalling, the high chain forces could result in a chain
failure.
CAUTION!
A
Practise switching gears in a place free of traffic until you are familiar with
the functioning of the levers or twist grips of your SCOTT bike.
NOTE!
U
SCOTT pedelecs have only one chainring (a). As a consequence there is no
front derailleur and no shifter on the left handlebars.
NOTE!
I
Read the gear manufacturer’s manual on this SCOTT info CD carefully and
practise shifting gears until you are familiar with it before you set off for the
first time.
Operation and control
Derailleur gears always work according to the following principle:
Large front chainring – high/heavy gear – higher gear ratio
Small front chainring – low/easy gear – lower gear ratio
Large rear sprocket – low/easy gear – lower gear ratio
Small rear sprocket – high/heavy gear – higher gear ratio
Normally, the shifters are mounted as follows:
Shift lever right – rear sprockets
Shift lever left – front chainrings
