Piercing to
effectuate
Never pierce
at the bottom
Haut
Bottom
(Figure 4)
Piercing
1.5 to 2 mm (cm)
(Figure 5)

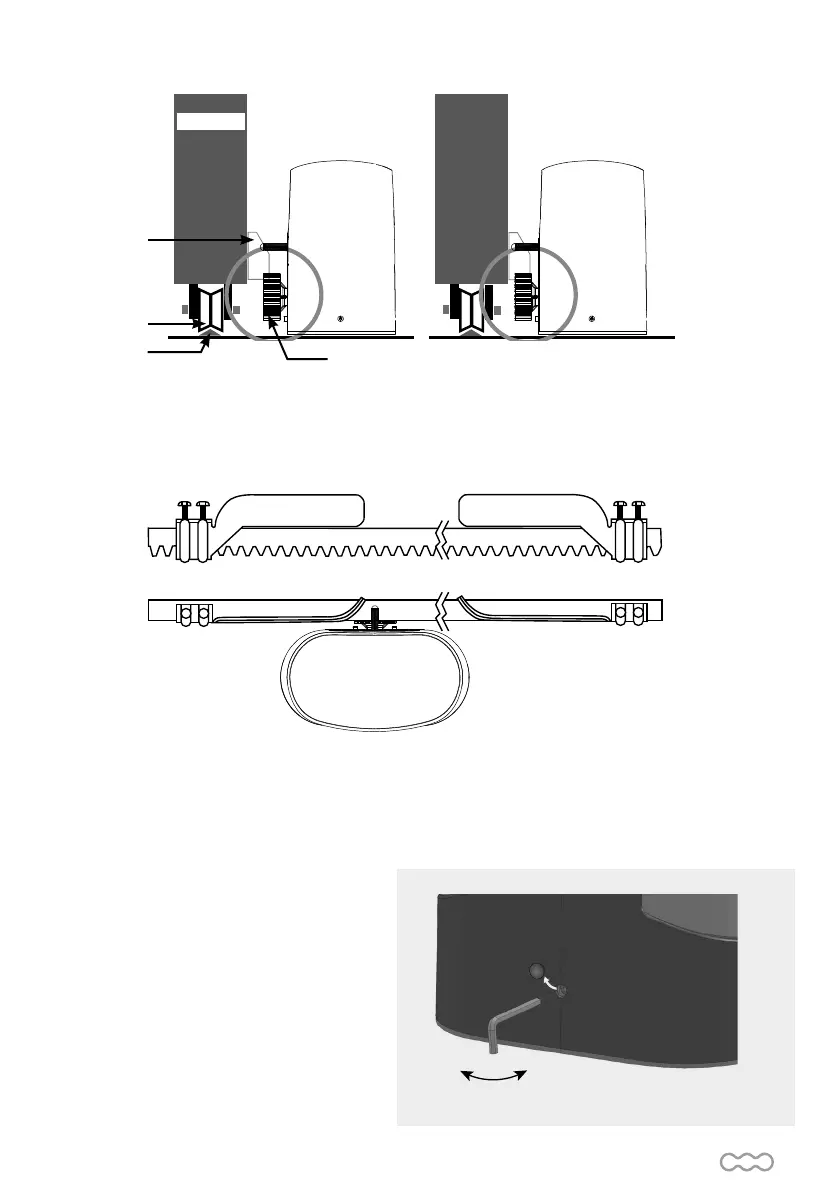

Check that the toothed wheel of your engine covers the entire surface of the rack :
NO YES
GATE
GEAR
NYLON
RACK
WHEEL
RAIL
TOOTHED WHEEL
SIDE VIEW
Place the slowing down on the nylon racks
DXSX
In case of power switch off or for motorization
programing, you can unlock manually your engine:
Position yourself inside of the gate.
Insert key tool (inside screw set). Screw it 5 to 10
times. You can remove manually your gate.
For locking you gear, insert key tool (inside screw set)
Unscrew it 5 to 10 times to reverse side. Check if your
gear is on fixed position.
twist it 5 times and +
C3- Manual release
