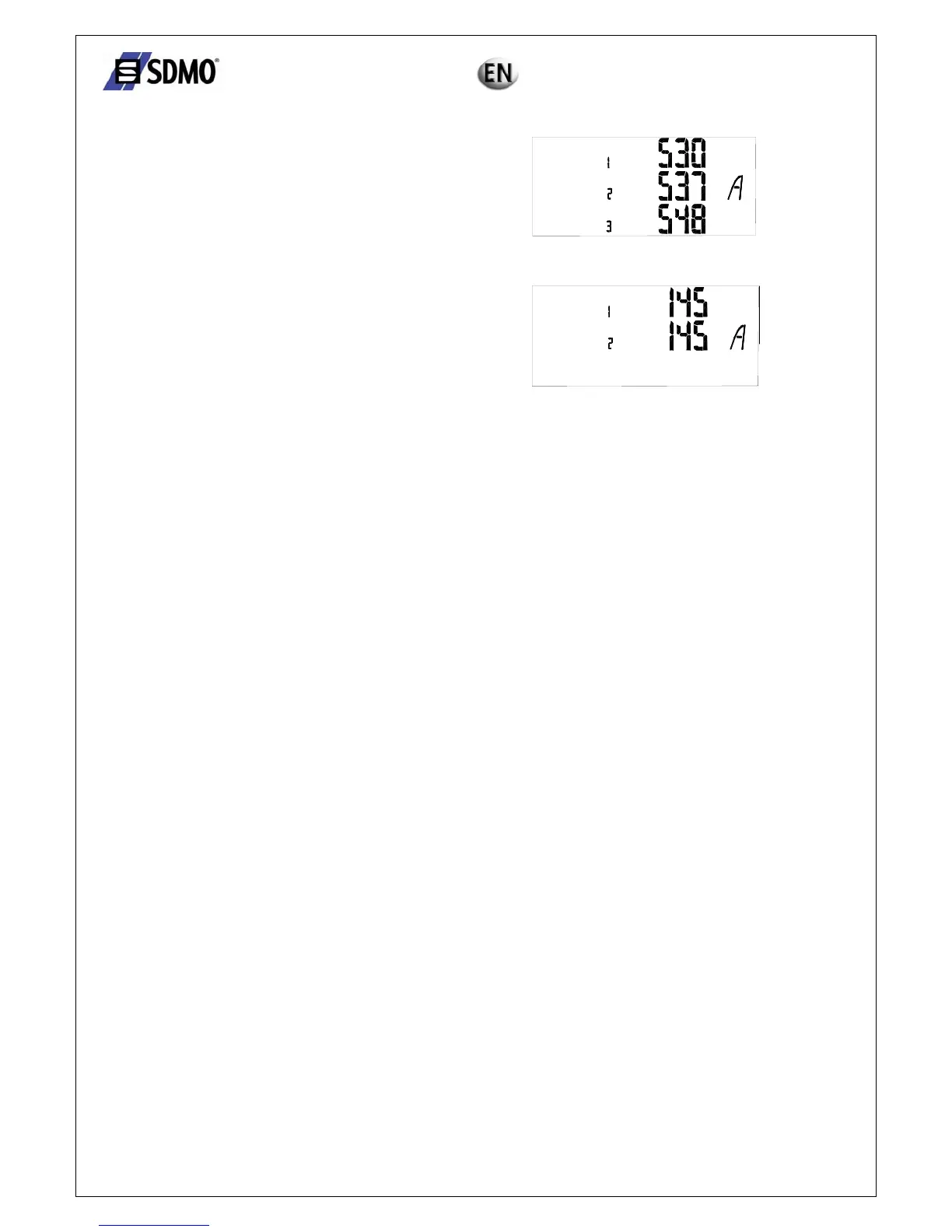

SDMO Nexys 2 User Manual

22/22 Ref. GPAO : 33502017201_1_1
o The first line displays the current circulating in
phase 1 (A).
o The second line displays the current circulating in
phase 2 (A).
o The third line displays the current circulating in
phase 3 (A).
Screen C
o The first line displays the current circulating in
phase 1 (A).
o The second line displays the current circulating in
phase 2 (A).
Screen F
o The following screens appear the 7th time the button is pressed:
o Screen C for applications in three-phase + N
or
o Screen D for applications in three-phase, two-phase
or
o Screen 1 for two-phase applications.
o The following screens appear the 8th time the button is pressed:
o Screen D for applications in three-phase + N
or
o Screen 1 for three-phase applications.
o The following screens appear the 9th time the button is pressed:
o Screen 1 for three-phase + N applications.
