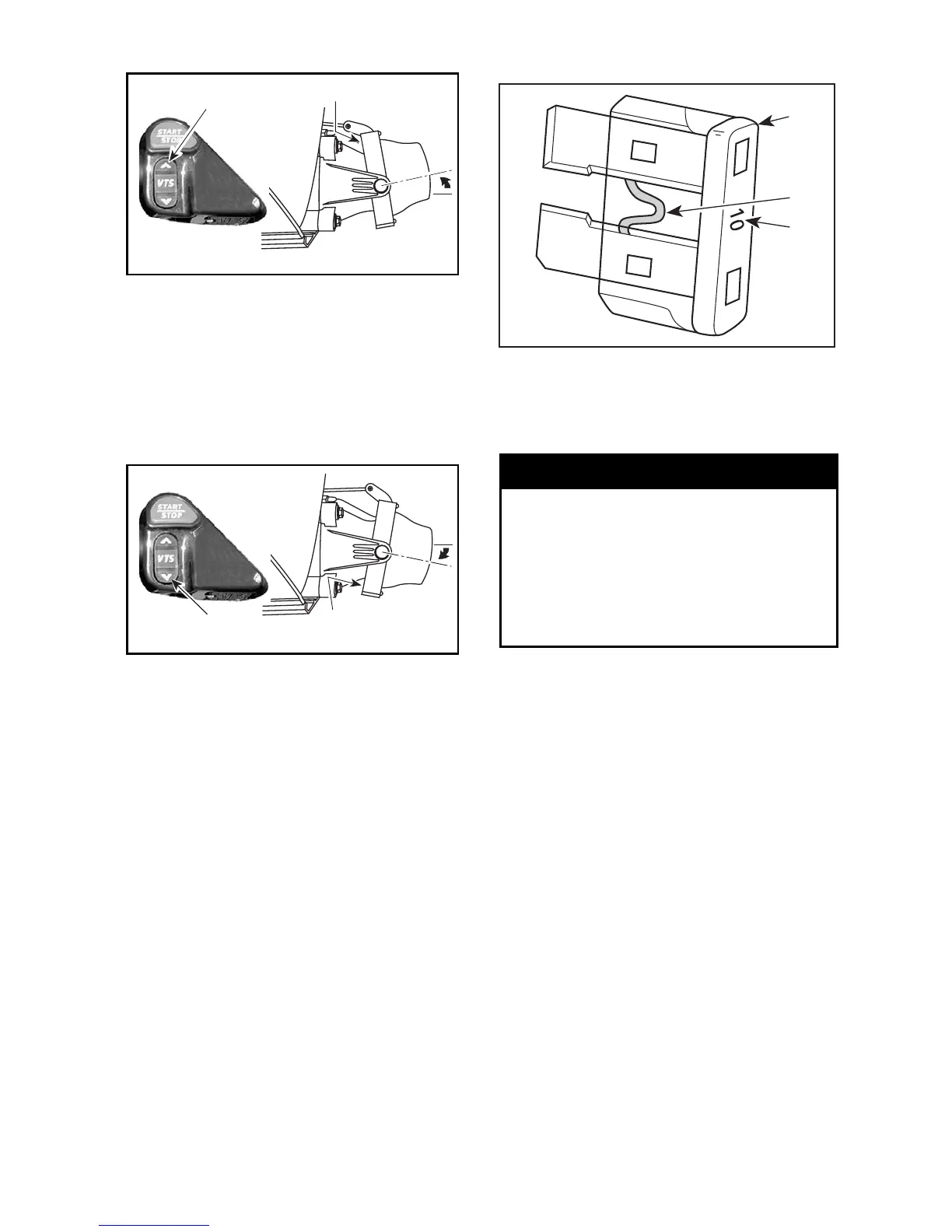

TYPICAL
1. Push on arrow pointing upward on
VTS button
2. No interference
3. Nozzle up
Push on arrow pointin g downward o n
VTS button until VTS stops. The no z-
zle must b e down and it must not in-
terfere with the venturi.
3
2
1
smo2006-002-024_a
TYPICAL
1. Push on arrow pointing downward on
VTS button
2. No interference
3. Nozzle down
If VTS needs to be readjusted, refer to
an authorized Sea-Doo dealer.
CAUTION: Trim ring and/or nozzle
should not interfere at any position.
Bilge Drain Plugs
Drain plugs use a low pressure area in
the jet pump to siphon the water out
of the bilge when the engine is oper-
ating. Inspect each pick-up screen for
obstructions, clean as necessary.
Fuses
If an electrical problem occurs, check
the fuses. If a fuse is burnt, replace
by one of the same rating.
A15E0KZ
1
2
3
1. Fuse
2. Check if melted
3. Ampere rating
Follow procedures below.
WARNING
Do not use a h ig h er rated fuse as
this can cause severe damage. If
a fuse has burnt out, source of
malfunction should be determined
and corrected before restarting.
See an authorized Sea-Doo dealer
for servicing.
All Models except RXP
Fuses can be found on the MPEM in
engine compartment.
RXP Models
Fuses are located under basket in front
storage compartment.
NOTE: To understand the acronyms
used here, refer to ABBREVIATIONS
USED IN THIS MANUAL section at the
end of the guide.
MPEM
All Models except RXP
To access fuses on the MPEM, re-
move seat.
Locate MPEM beside engine.
