42
11) Tachometer
(if so equipped)
An analog tachometer indicates the
revolutions per minute (RPM) of the
engine. Multiply by 1000 to obtain the
actual revolutions.
12) Information Center
Gauge/Buttons
(if so equipped)
NOTE: With the safety lanyard discon-
nected, information center can be ac-
tivated for approximately 33 seconds
by depressing the engine start/stop
button. This is convenient to see the
fuel level or view some other func-
tions when the safety lanyard is not at
hand.

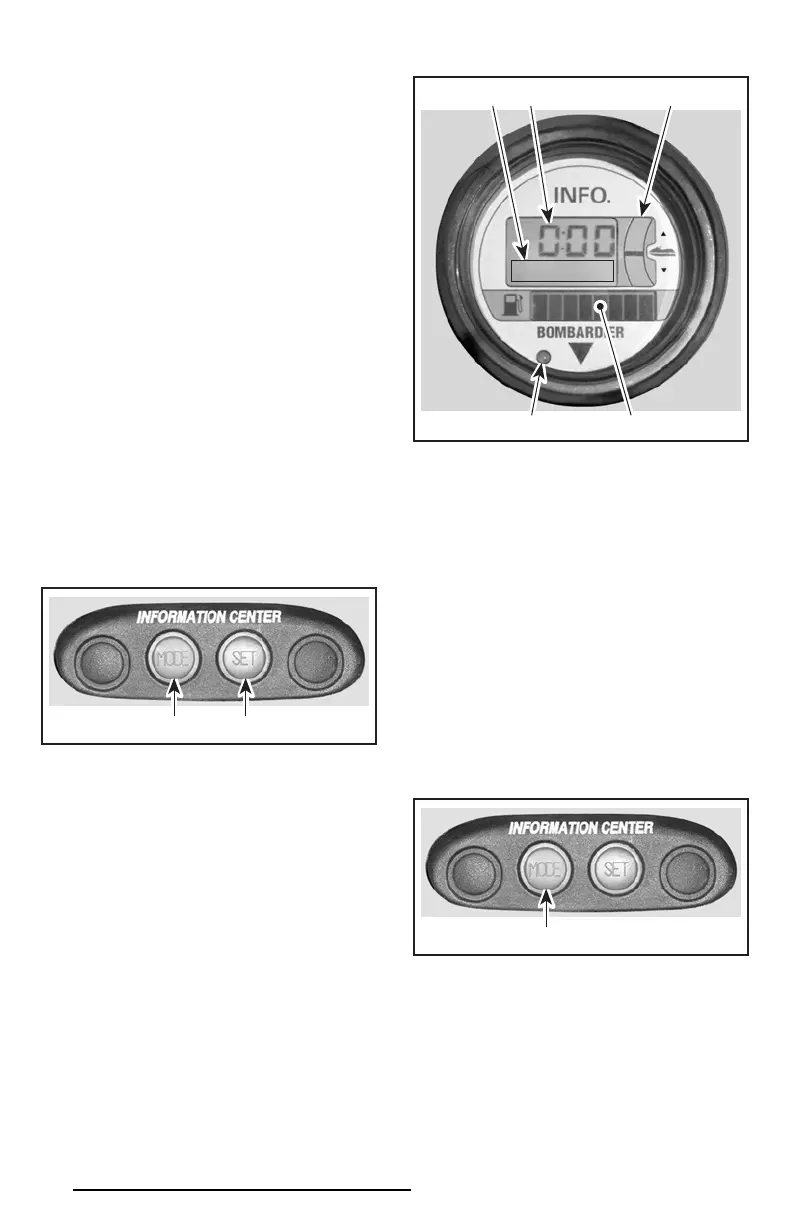

This is a LCD multifunction gauge. Dif-
ferent displays and functions can be
activated using 2 buttons — MODE
and SET — following specific sequenc-
es as described below.
1. To change display mode
2. To set or reset a function
Resetting a Function
To reset a function (such as the chro-
nometer, distance, etc.) press and hold
the SET button for 2 seconds while in
the appropriate mode.
The information center includes the fol-
lowing display areas.
1. General display
2. Message/units display
3. Warning light
4. Fuel level display
5. VTS position indicator (if so equipped)
General Display
The default display is the clock (or
clock/compass if so equipped) unless
another mode has been selected. See
Display Priorities below.
Repeatedly pressing the MODE button
scrolls the following displays: Tachom-
eter, speedometer, average speed, trip
meter, hourmeter, water temperature,
exterior temperature (if so equipped)
and chronometer.
1. Press to change display mode
When you are satisfied with your choice,
stop pressing the button.
F00L2BY
12
F00L2CY
34
512
F00L2BZ
1
smo2002-002a.book Page 42 Monday, July 30, 2001 2:18 PM
