92
MPEM
GTI Models

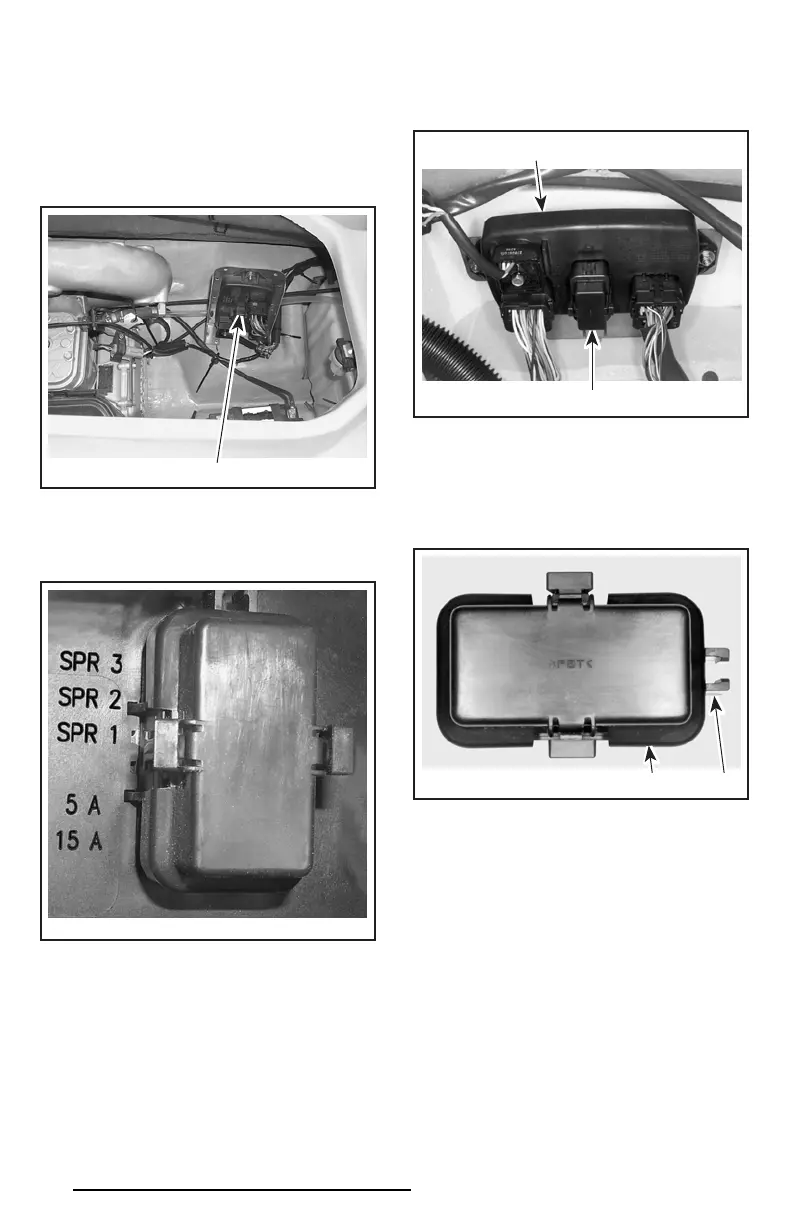

To access fuses on the MPEM, remove
seat.
Locate MPEM besides engine.
1. MPEM
Fuses are identified, look besides the
fuse holder. SPR means spare (fuse).
FUSE IDENTIFICATION
Other Models
To access fuses on the MPEM, open
front storage compartment cover and
remove storage basket.
Locate MPEM on the left side of wa-
tercraft.
All Models
Remove fuse cover from the MPEM.
TYPICAL
1. MPEM
2. Fuse cover
Use the tabs of the fuse cover to re-
move and reinstall fuses.
1. Fuse cover
2. Fuse tabs
Rear Electrical Box
Remove seat.
GTI and RX Series
Remove darts retaining tubes then pull
out both vent tubes each side of elec-
trical box at rear of hull.
F17H02Y
1
F17H01Y
F06H1SY
1
2
F06H1TY
12
smo2002-002a.book Page 92 Monday, July 30, 2001 2:18 PM
