30

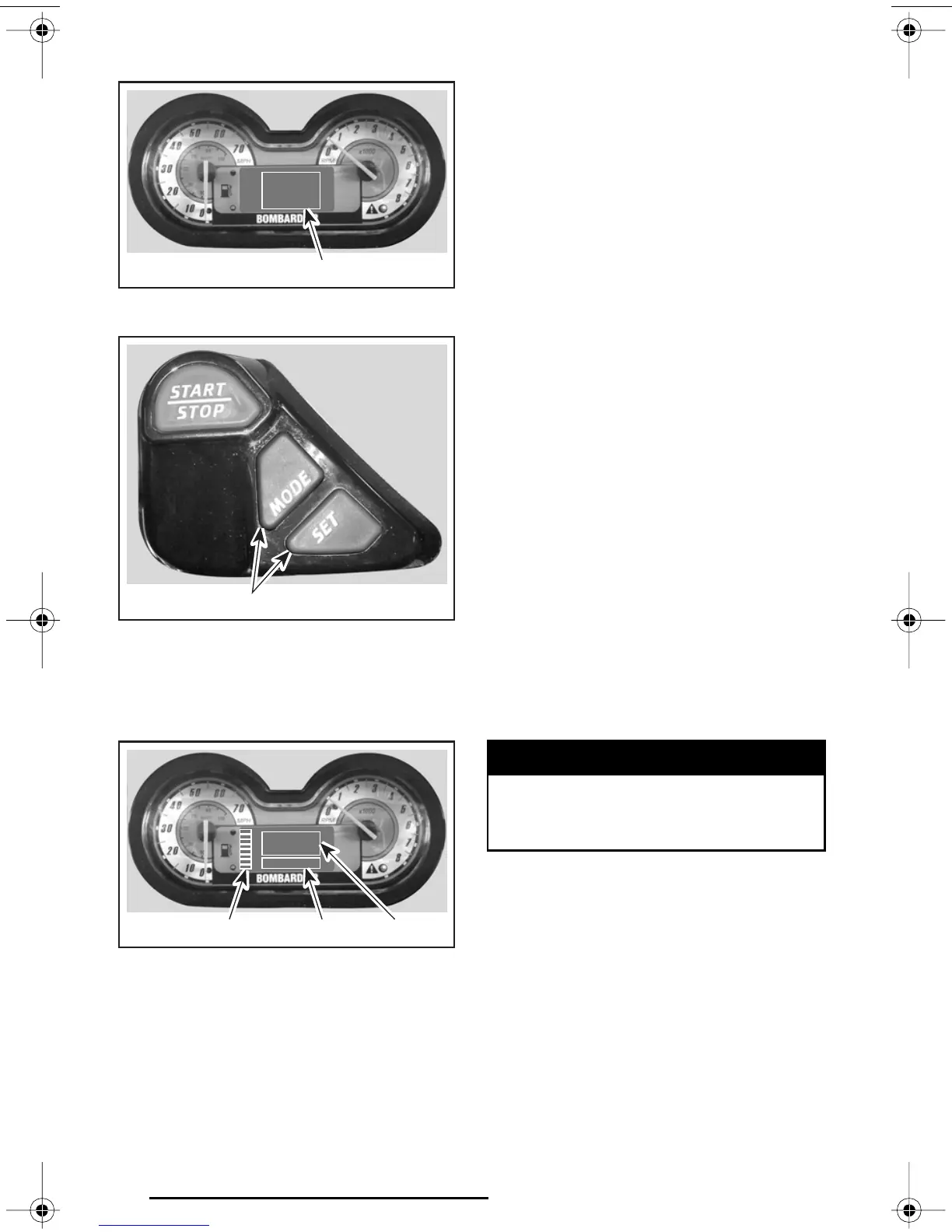

1. Text and numerical area
1. Function buttons
Display Area
The display area comprises the follow-
ing.
1. Fuel level indicator
2. Numerical section
3. Units and messages section
Fuel Level Display
Bar gauge continuously indicates the
amount of fuel in the fuel tank while
riding. A low-fuel condition is also indi-
cated when in the information center
when only one bar is displayed. See
Message Display below.
Numerical Section
This section shows the digits of the
function displayed such as the clock,
trip hour meter etc. Time is displayed
in 12 hour format (from 1 to 12) with-
out am and pm indication.
Units and Messages Section
This section shows the units related to
the numbers displayed. Units such as
KMH (MPH), HOUR etc. are displayed.
This section also display navigational
and system fault informations.
See the gauge functions and message
lists below for more details.
Gauge Functions
Clock: Indicates the actual time in hours
and minutes (hh:mm).
Compass: Displays the cardinal points
to indicate the orientation of the water-
craft.
Average Speed: The information cen-
ter approximately calculates and dis-
plays the average speed (AV KM/H or
AV MPH) of the watercraft since the
last engine start.
Distance (KM or MILES). The informa-
tion center approximately calculates the
distance based on the operation time
and the watercraft speed and displays
the result in kilometers (KM) or miles
(MILES).
Hourmeter: Displays the time in hours
of the watercraft usage (HOUR).
F18H08Z
1
1
F18L090
F18H080
3 21
WARNING
Use the compass as a guide only.
Not to be used for navigation pur-
poses.
smo2002-003_a.book Page 30 Friday, October 12, 2001 2:04 PM
