36
12) Front Storage
Compartment Cover
Latch
Pull the latch lever upward in order to
open the front storage compartment
cover. Always relatch.
NOTE: Verify periodically the lock pin
tightness of storage cover. Tighten if
needed and make sure storage cover
latches properly.

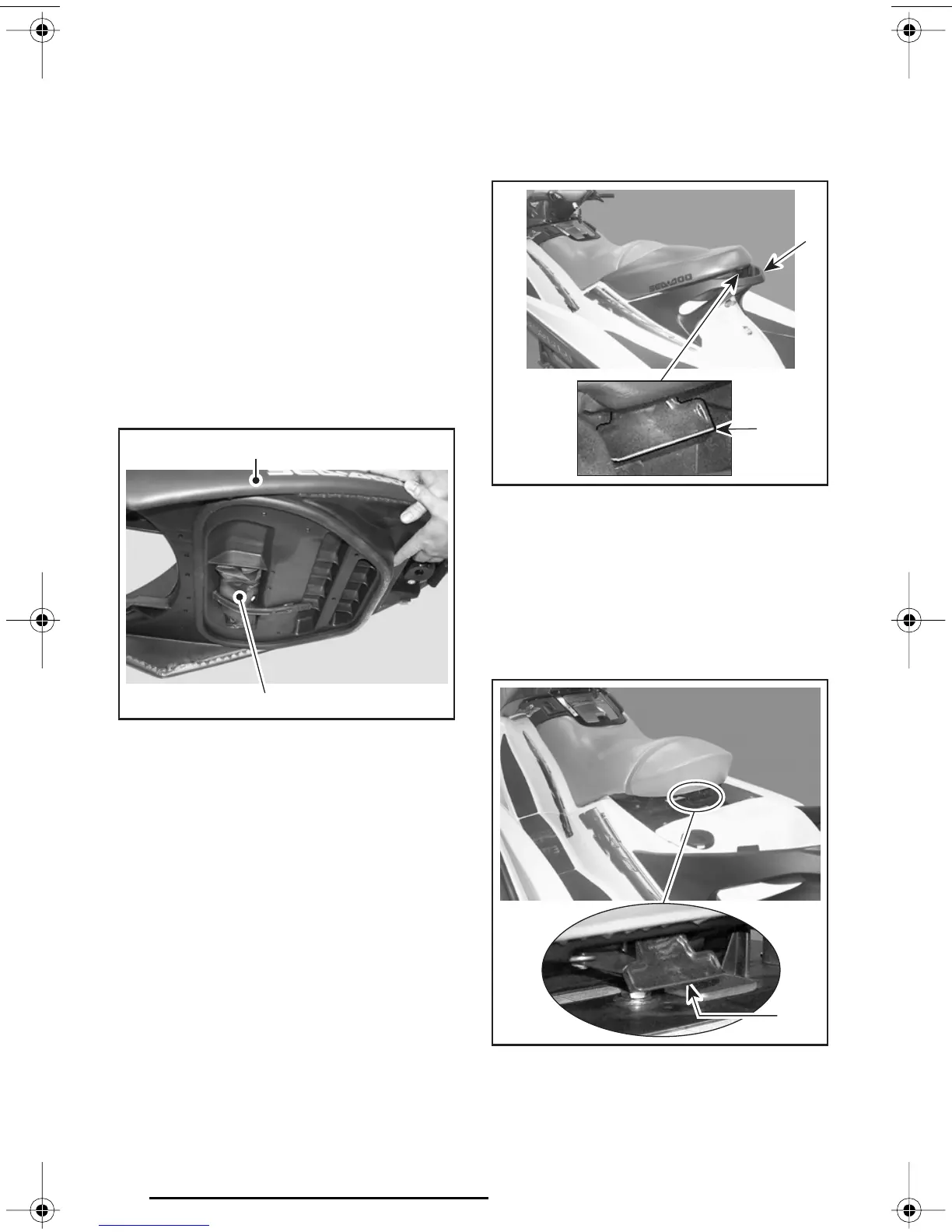

13) Tool Kit
Located under the seat extension, it
contains tools needed to perform basic
watercraft maintenance.
1. Seat extension
2. Tool kit
14) Air Intake Opening
This is where air enters to supply the
engine and to ventilate the engine
compartment. If the air intake opening
is kept under water, water will get in-
side bilge.
CAUTION: If the air intake opening
is kept under water, such as turning
constantly in tight circles, water will
get inside bilge, which may cause
severe damage to internal parts of
the engine.
15) Seat Strap
The seat strap provides a handhold to
assist boarding and is used as a hand-
hold for the passenger.
16) Seat Extension Latch
Removing the seat extension allows
access to the rear storage basket. It
also gives access to the seat latch.
1. Seat extension latch
2. Rear grab handle
17) Seat Latch
Removing the seat allows access to
the engine compartment.
The seat latch is located at the rear end
and underneath the seat.
1. Seat latch
To remove seat, pull the latch lever up-
ward and hold. Lift and pull the seat
rearward.
F18L0WY
2
1
F18L0FZ
1
2
1
F18L0CY
smo2002-003_a.book Page 36 Friday, October 12, 2001 2:04 PM
