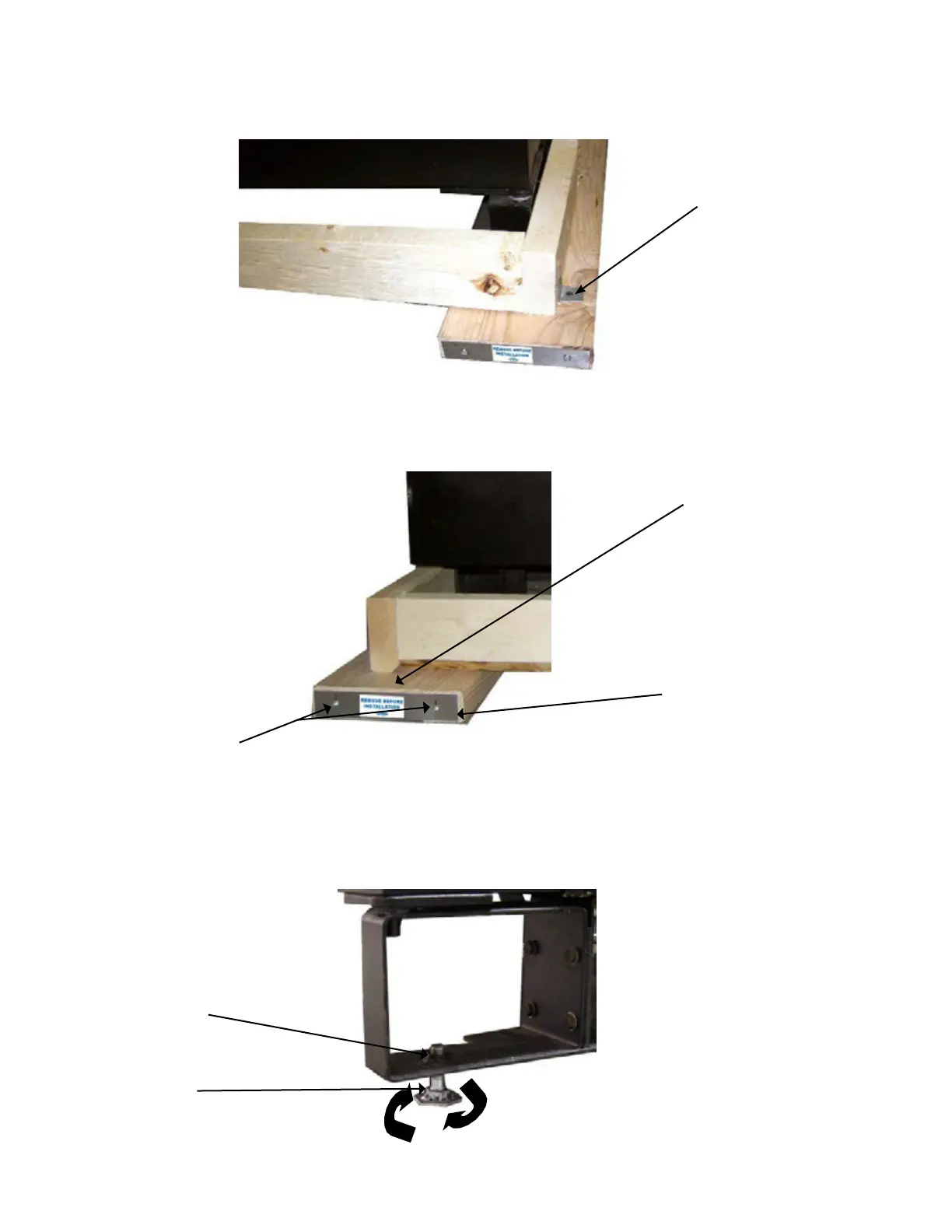

1.) Remove Front and Back Door Protectors by removing four screws (2 front, 2 back) from the skid feet.
(Fig. 2a)
Remove screws,
each side, front and back
(4 screws total)
2.) On each side of the vending machine, remove four (4) screws from the front and back of the skid
feet, remove plates. The boards will then come apart and o the leg levelers.
(Fig. 2b)
Skid Feet (2) can be removed
Remove Plates (2 – Front and Back)
Remove Screws (4 – 2 front, 2 back)
Use wrench here to adjust
Leg Leveler
Proper leveling is also necessary to allow easy opening and closure of the vending machine door and to
insure proper vending operaon.
Fig. 3 - Leg Levelers
