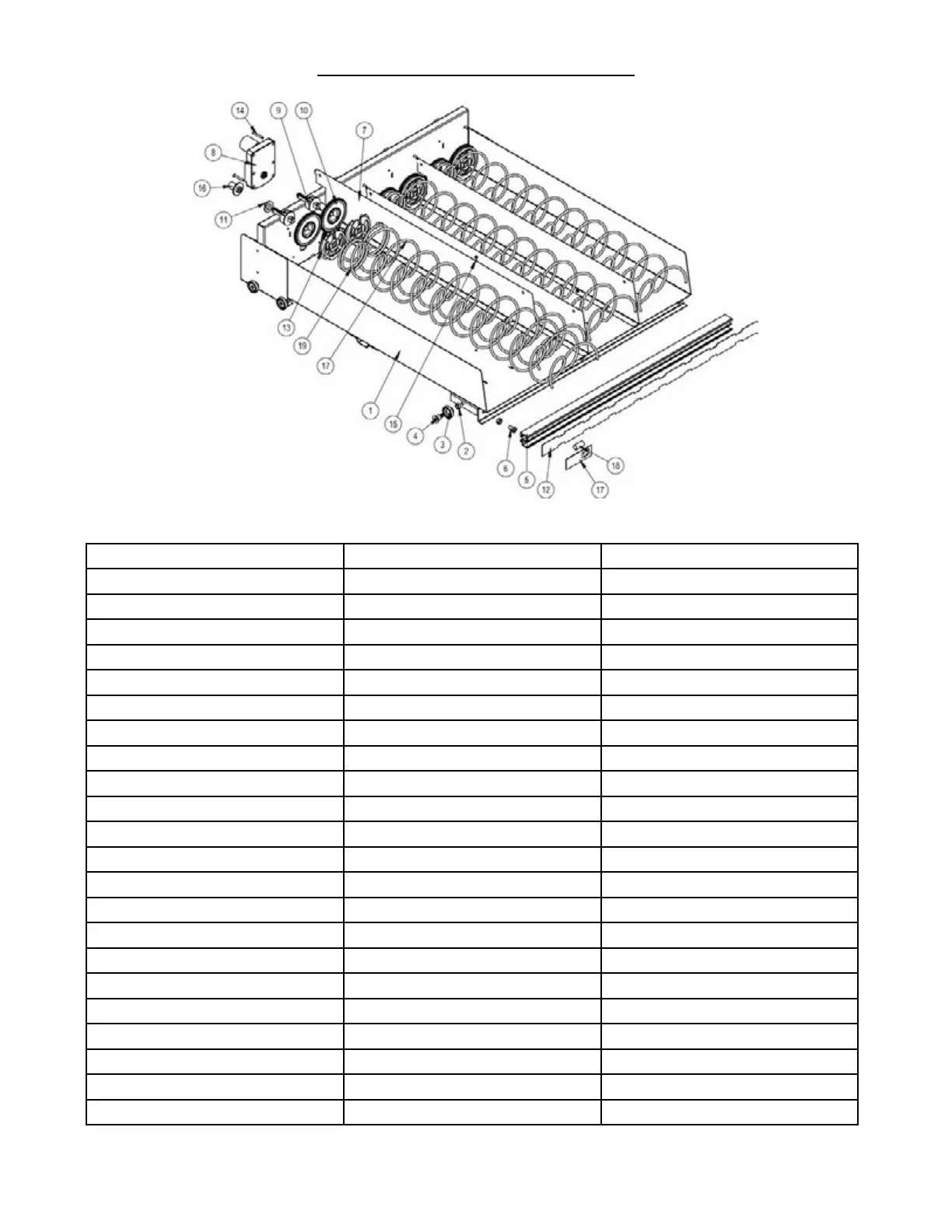

Seaga INF4C - 4-Space Snack Dual Coil Tray Assembly Diagram

74Revision 2.EL950 1.3.1074C 18.6
4 Space Tray Assembly, Snack Dual Coil
ITEM PART NO. DESCRIPTION
1 SAI84024 ASSEMBLY, WELDED TRAY
2 FAI923 NUT, NYLOCK
3 PLI802A WHEEL, TRAY
4 HAI602 PIN, WHEEL, TRAY
5 PLC958 PROFILE, PRICE SELECTION
6 HAI976 PIN, PROFILE LABEL HOLDING
7 STI70010A PARTITION, TRAY
8 ELC920 MOTOR
9 PLI721C SHAFT, GEAR MOTOR
10 PLI536 GEAR
11 PLI332A BUSHING, DUAL COIL
12 PLI84001 STRIP, PRICE SCROLL, HOLDING
13 PLI331 HUB, COIL, RETAINER
14 FAI932 SCREW
15 FAI892 SCREW
16 PLI336c RETAINER SLEEVE, GEAR
17 DEI315B SELECTION
18 DE140 PRICE SCROLL
19 WFI548 COIL, 10 SPACE, LEFT
- WFI549 COIL, 10 SPACE, RIGHT
- WFI568 COIL, 12 SPACE, LEFT
- WFI59 COIL, 12 SPACE, RIGHT
