Seaga INF4C - 7-Space Beverage Tray Assembly Diagram

75Revision 2.EL950 1.3.1074C 18.6

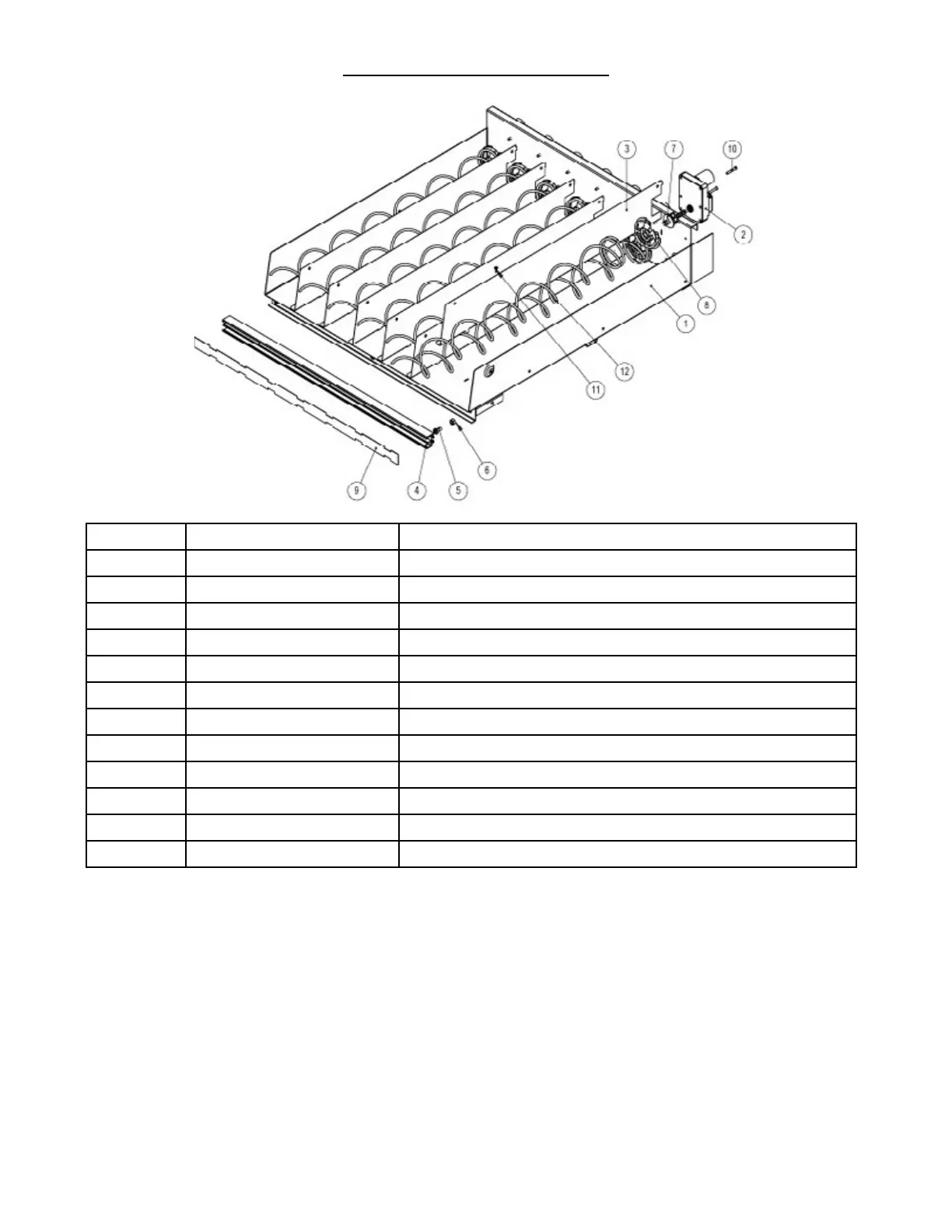

7 Space Tray Assembly, Beverage
ITEM PART NO. DESCRIPTION
1 SAI84028 ASSEMBLY, WELDED TRAY, 7-SELECTION
2 ELC920 MOTOR
3 STI70010A PARTITION, TRAY
4 PLC958 PROFILE, PRICE SELECTION
5 HAI976 PIN, PROFILE LABEL HOLDING
6 FAI923 NUT, NYLOCK
7 PLI721C SHAFT, GEAR MOTOR
8 PLI331 HUB, COIL, RETAINER
9 PLI84002 STRIP, PRICE SCROLL, HOLDING FOR 7 SELECTION TRAY
10 FAI882 SCREW
11 FAI892 SCREW
12 WFI576 COIL, 6 SPACE, RIGHT
