Barracuda 2LP Product Manual, Rev. D 27
Air-flow cooling
ST31250WD and ST32550WD wide differential drives
MTBF
800k hours
Card Component Reference case temperature (°C)
KYHX ADC 1 49
KYHX Detector 2 60
KYHX Microprocessor 3 55
KYHX Driver 4 57
The air-flow pattern with which the temperature guidelines above were
generated is shown in Figure 6 (opposite direction). Local average air
velocity was 0.61 msec (120 lfpm) and inlet air temperature to the drive was
30°C (86°F), plus a 5°C temperature rise in the test enclosure (35°C ambient
local to the drive).
The maximum allowable HDA case temperature is 60°C (see Figure 13).
2
3 1
4

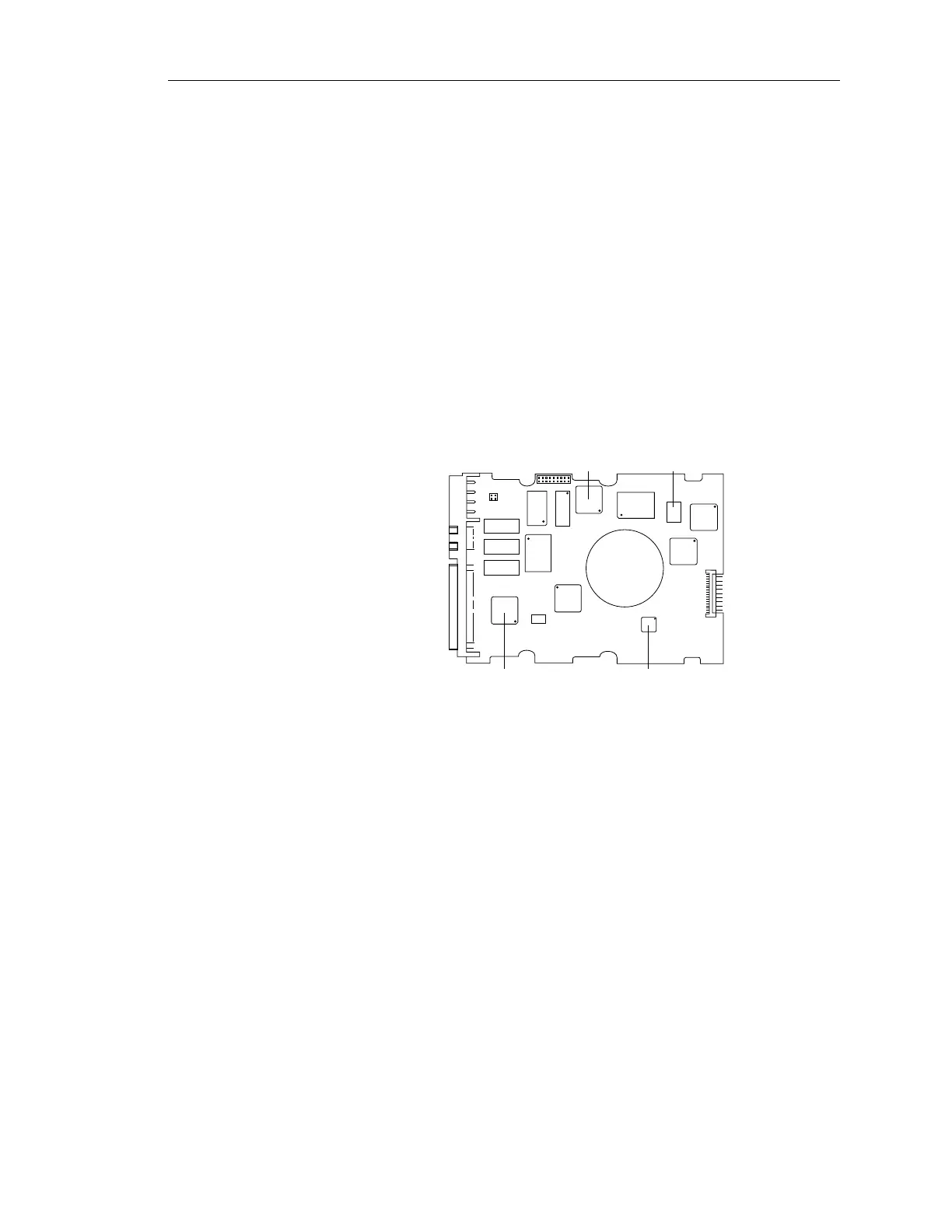

Figure 10. KYHX temperature measurement locations
