Seagate BARRACUDA 2LP - SCSI Single-Connector Attachment (SCA) Physical Interface; Figure 33. Non-Shielded, 80-Pin I;O and DC Power Single-Connector Attachment (SCA)

82 Barracuda 2LP Product Manual, Rev. D
11.10 SCSI single-connector attachment
(SCA) physical interface
1.52
(.060)
1.32
(.052)
2.70
(.106)
Section X–X
7.00
(.276)
12.70
(.500)
57.87
(2.278)
–Y–
0.15
MYM
0.15
MYM
0
–0.15
+ .000
– .006
[ [
62.15
(2.447)
± 0.15
(± .005)
Housing
X
X
PCB Contacts
0.3
(.012)
MYM
1.27
(.05)
Typ
C
L
of Datum Y
0.50
(.020)
Pin 1
Pin 1
* Side View
Front View
*
*
Contacts are recessed along the center strip (see side view).
Top View
Back View
Insert cable
connector here

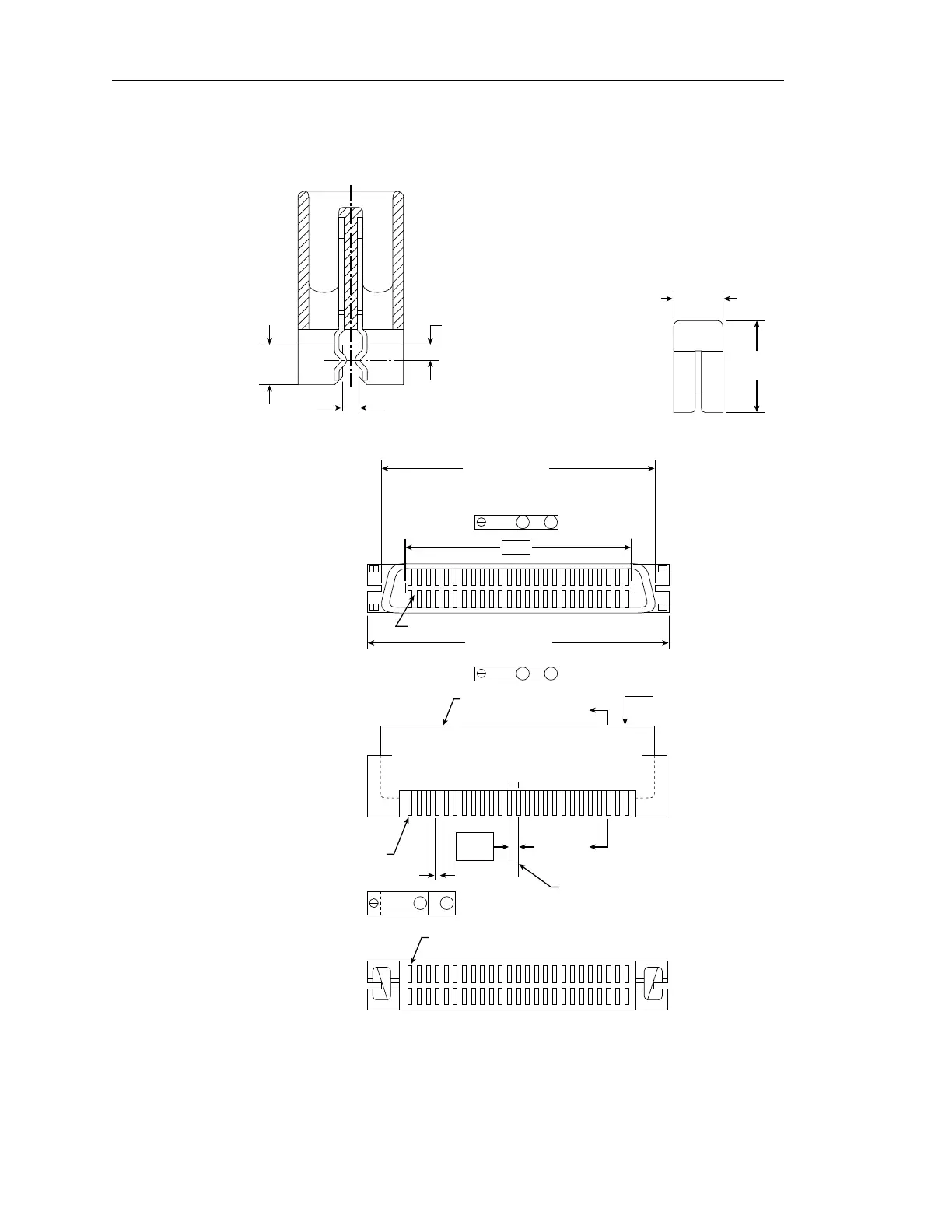

Figure 33. Non-shielded, 80-pin I/O and DC power
single-connector attachment (SCA)
