Seagate ST11200N - 11.6 Physical Interface

Product Manual - Hawk 1 Family SCSI-2 (Volume 1), Rev. D
_____________________________________________________________________________________
11.6 Physical interface
Figure 11.6-1a shows the locations of the physical interface components for the "N" and "ND" model drives.
Shown are the locations of the D.C. power connector, the SCSI interface connector, the I/O line terminators,
and the drive select and option select header.
Optional versions of this drive, the models ST11200NC and ST1980NC have an 80 pin connector that has
the SCSI I/O signals, DC power and some option select functions all together in the 80 pin connector. See
Figure 11.6.3-1b and Table 11.6.3-1c.
Details of the physical, electrical and logical characteristics are given in paragraphs following, while the
SCSI operational aspects of Seagate drive interfaces are given in the Seagate SCSI Interface Product
Manual, P/N 77738479.

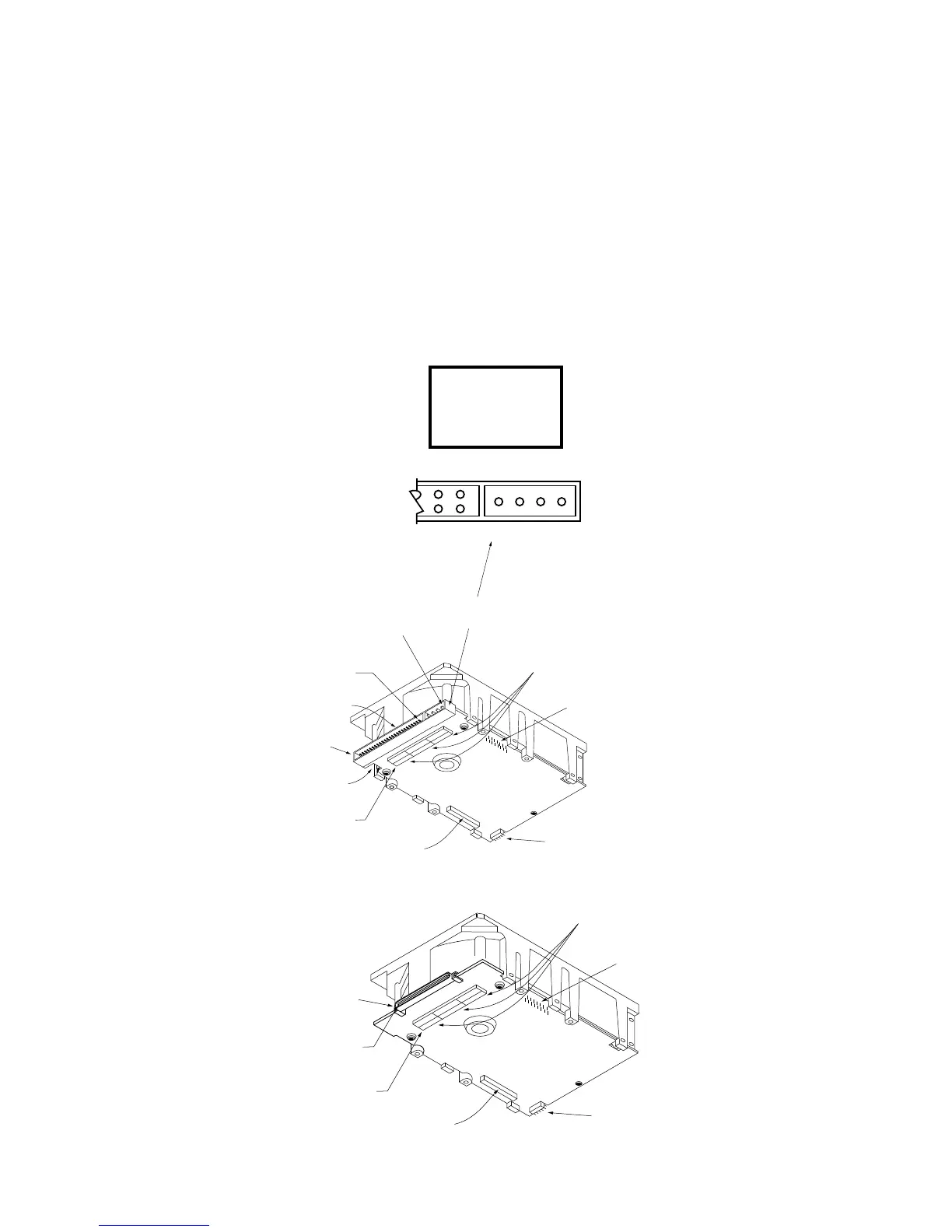

Figure 11.6-1a. "N" and "ND" drives model physical interface (50 pin SCSI I/O connector)
Figure 11.6-1b. "NC" model drive physical interface (80 pin I/O and DC power connector)
Pin 1
SCSI I/O
Connector
J4
Pin 1
DC Power
Connector
J6
J5
J1
Pin 1 End
J2
I/O Terminators
J1
4321
Pin
1
2
3
4
Power
+12V
+12V ret
+ 5V ret
+ 5V
80 Pin
SCSI I/O and
DC Power
Connector
J4
J6
Pin 1 End
J2
I/O Terminators
Pin 1
55
