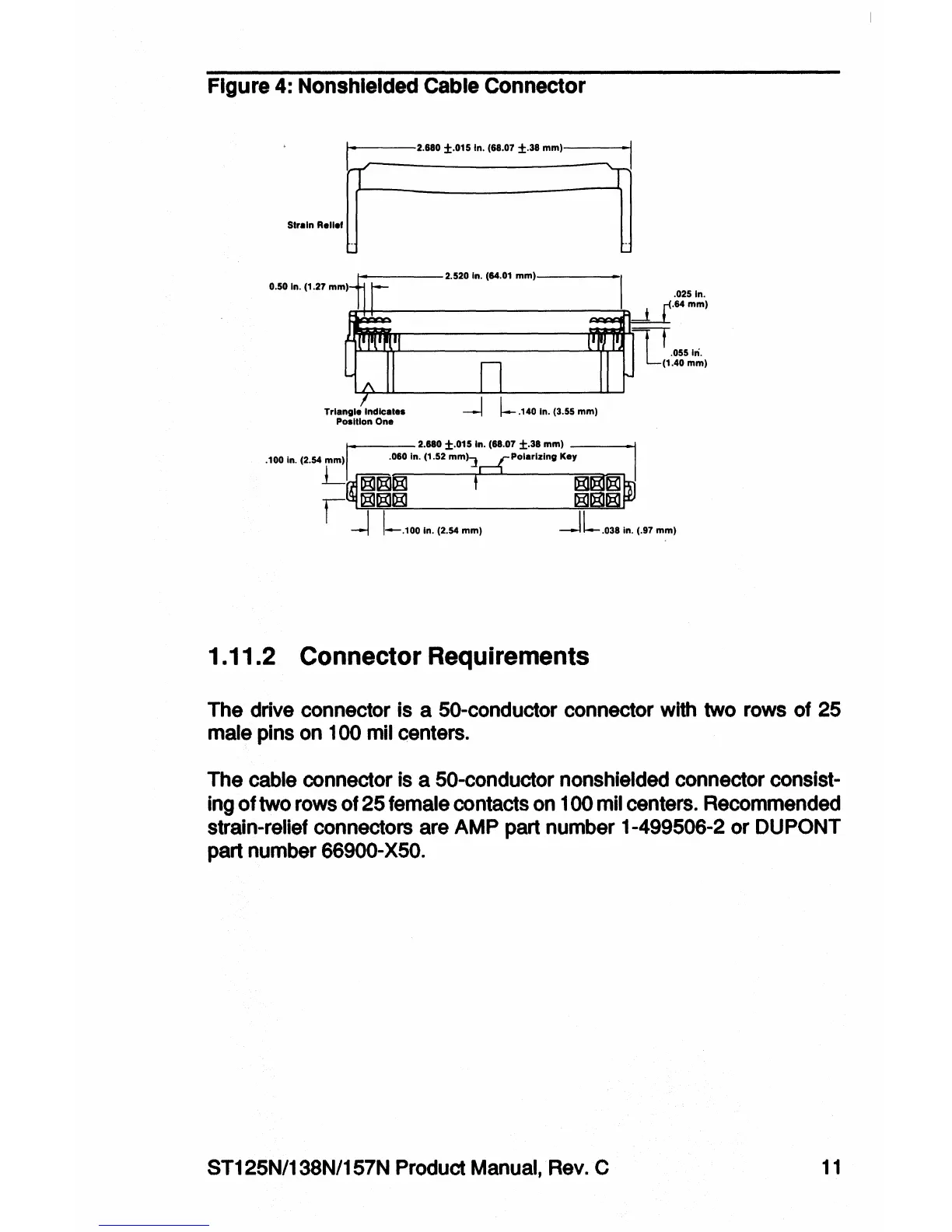

Figure 4: Nonshlelded Cable Connector
· t--~---2.880 ±-015 In. (68.07 ±-38 mm)--~--<-1
h--~ ~
Triangle lndtcales
Position One
~ 2.880 ±-015 In. (88.07 ±-38 mm) ;;--I
.
100
in. (
2
.54
mm)I ri3ii5i181"n. (1.52 mm)JdPolarlzing Ke~I
~-~ , ~I~
--l l-.100 In. (2.54 mm) _J L.038 in. (.97 mm)
1.11.2 Connector Requirements
The drive connector is a 50-conductor connector with two rows of 25
male pins on 100 mil centers.
The
cable connector is a 50-conductor nonshielded connector consist-
ing
of two rows of 25 female contacts on 100 mil centers. Recommended
strain-relief connectors are AMP part number 1-499506-2 or DUPONT
part number 66900-X50.
ST125N/138N/157N Product Manual, Rev. C
11
