13

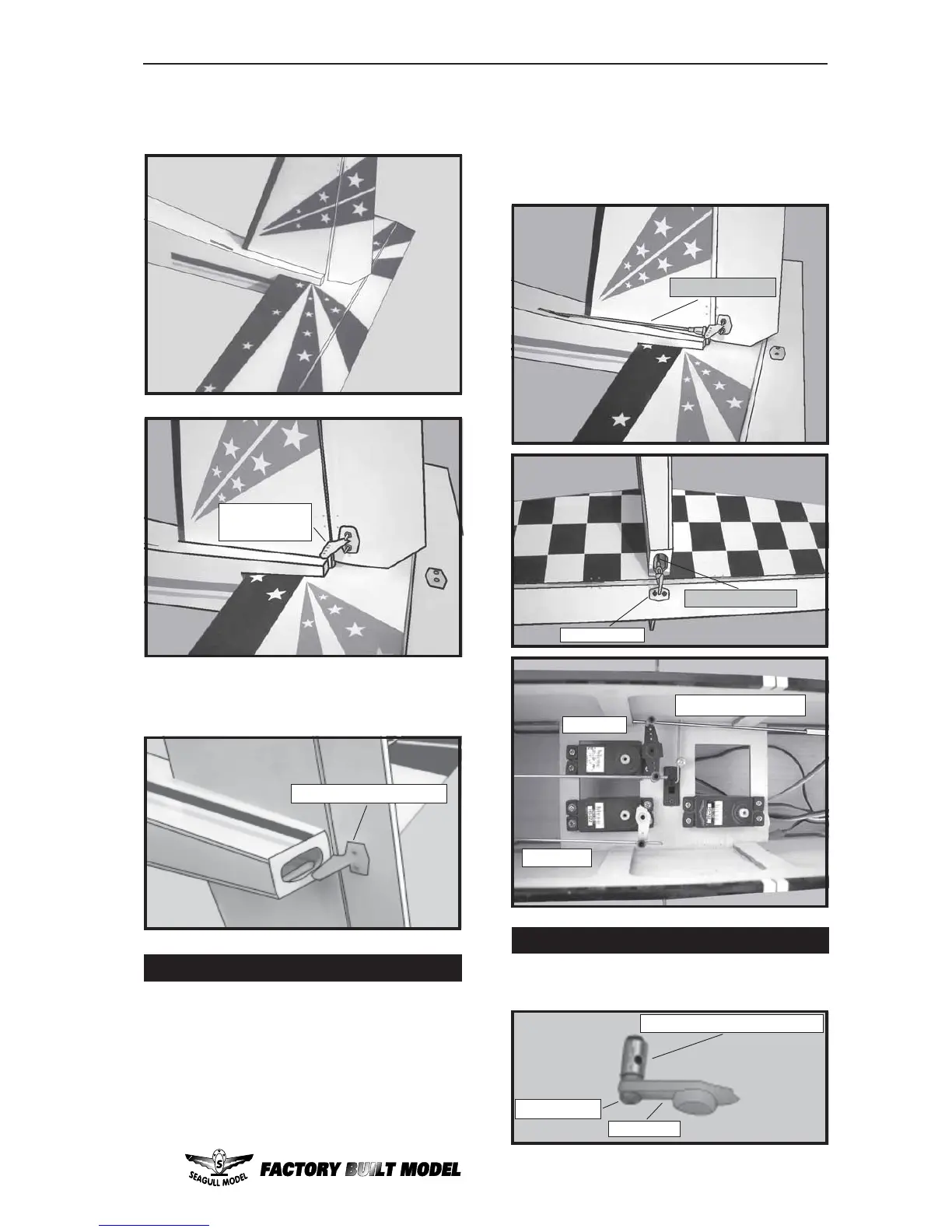

Arising Star. Instruction Manual.
3) Using a 1.5mm drill bit and the control
horns as a guide, drill the mounting holes
through the elevator halves.
4) Install the elevator control horn using
the same method as with the rudder control
horns.
Elevator control horn.
2) Thread two nylon clevises onto the
threaded wires at least 10 turns. Attach the
clevises to the elevator and rudder control
horns. You may find it necessary to make
slight bends in the wires so they will align with
the control horns without binding.
1) Install the elevator pushrod into the fuse-
lage. To help make installation easier, thread
string down through the elevator pushrod ex-
its and into the servo compartment in the fu-
selage. Tie the thread to the threaded pushrod
wires of the elevator pushrod. Pull the pushrod
through the exit slots.
PUSHROD INSTALLATION.
THROTTLE SERVO INSTALLATION.
1) Install adjustable servo connector in
the servo arm.
Rudder
control horn.
Rudder pushrod.
Control horn.
Elevator pushrod.
Adjustable servo connector.
Servo arm.
C/A glue fix.
Rudder.
Stearing pushrod.
Elevator.
