Arising Star. Instruction Manual.

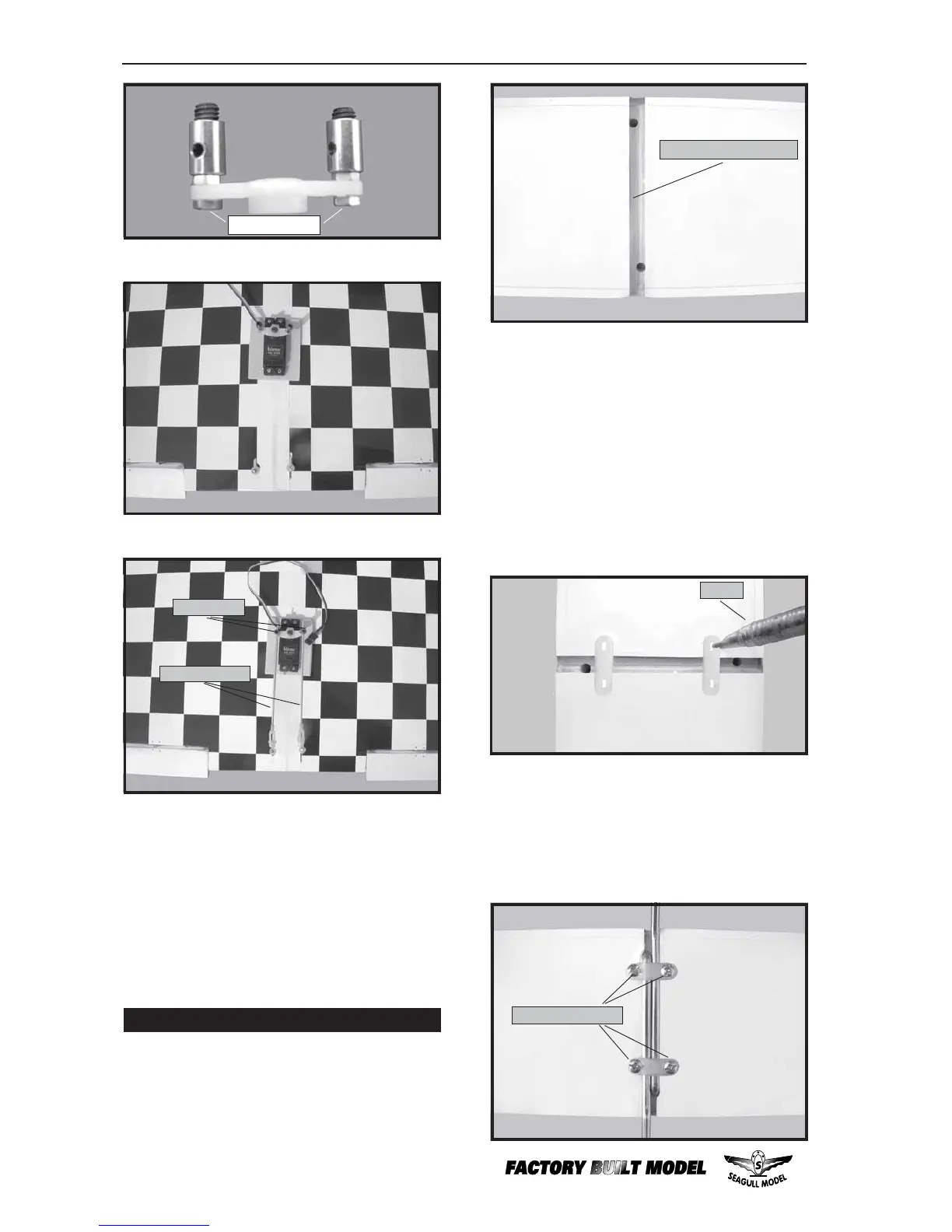

3) The landing gear wire is held in place
using two nylon landing gear straps and four
3mm x 12mm wood screws.
The straps should be located equal distance
from the inside and outside ends of the wire.
2) Using the two landing gear straps as a
guide, mark the locations of the four 3mm x
12mm mounting screws onto the fuselage sur-
face.
1) Using a modeling knife, remove the
covering from over the two main gear mount-
ing slots located in the bottom of the fuselage.
4) Slide the pushrod wires through the
connectors as shown.
5) With both the aileron servo and the ai-
lerons centered. Tighten the set screws on the
connectors.
Pushrod wire.
Connector.
4) Insert the main gear wire into the
mounting slot.
5) Remove the two straps and the gear
wire. Drill four 3/32” pilot holes into the fuse-
lage for the wood screws.
INSTALLING THE MAIN GEAR WIRES.
C/A glue fix.
Remove covering.
Pen.
3mm X 12mm.
