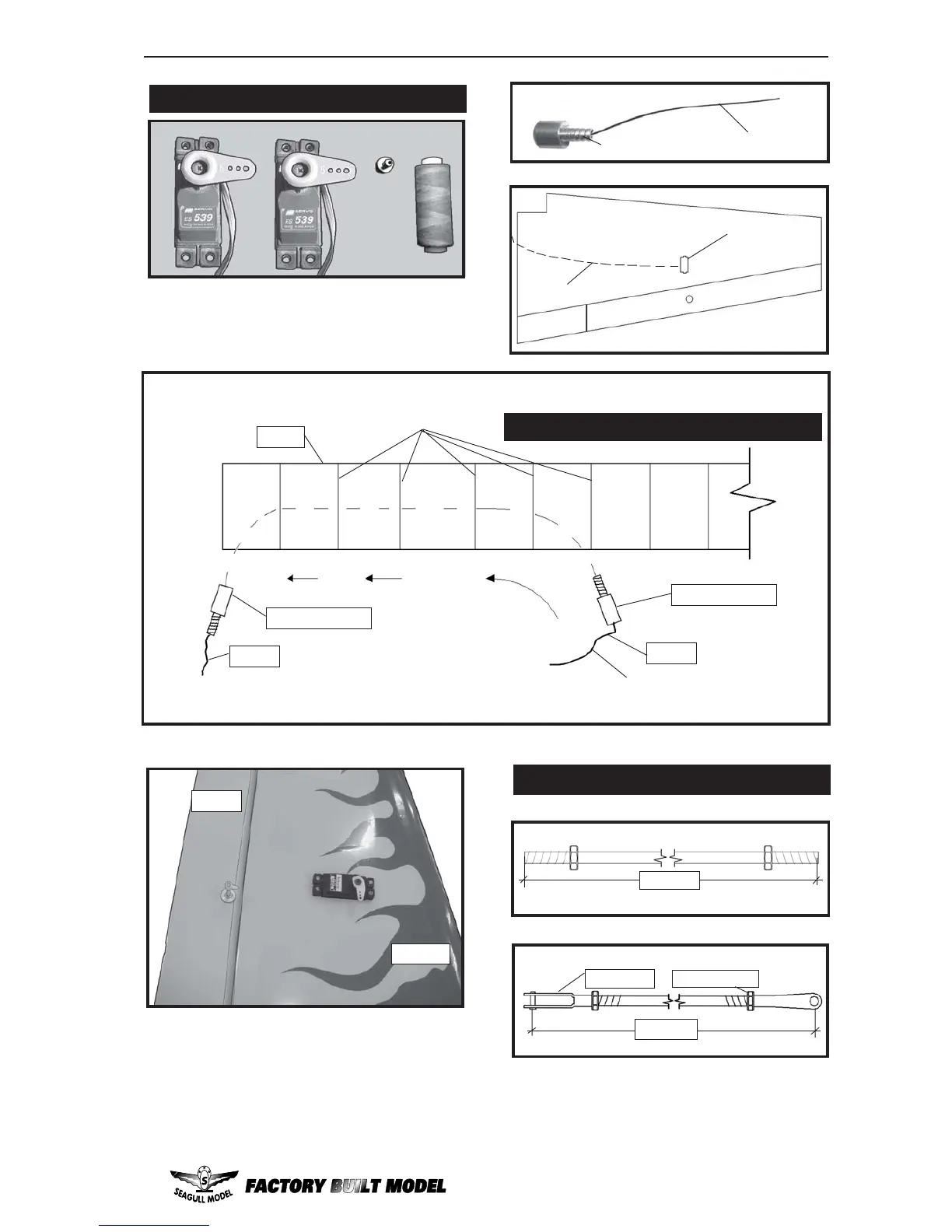

Installing the aileron servo in place using the
same techniques used to flap servo.
INSTALLING THE AILERON SERVOS.
Servos.
Small weight.
Thread.
String.
Small weight.
Electric wire.
Aileron
Servo.
Attach the string to the servo lead and carefully thread it though the wing.
String.
Small Weight.
Wing.
Wing rib.
String.
Small Weight.
INSTALLING THE AILERON SERVOS.
Wing.
Aileron.
M2 lock nut.
M2 clevis.
75mm.
115mm.
AILERON PUSHROD INSTALLATION
