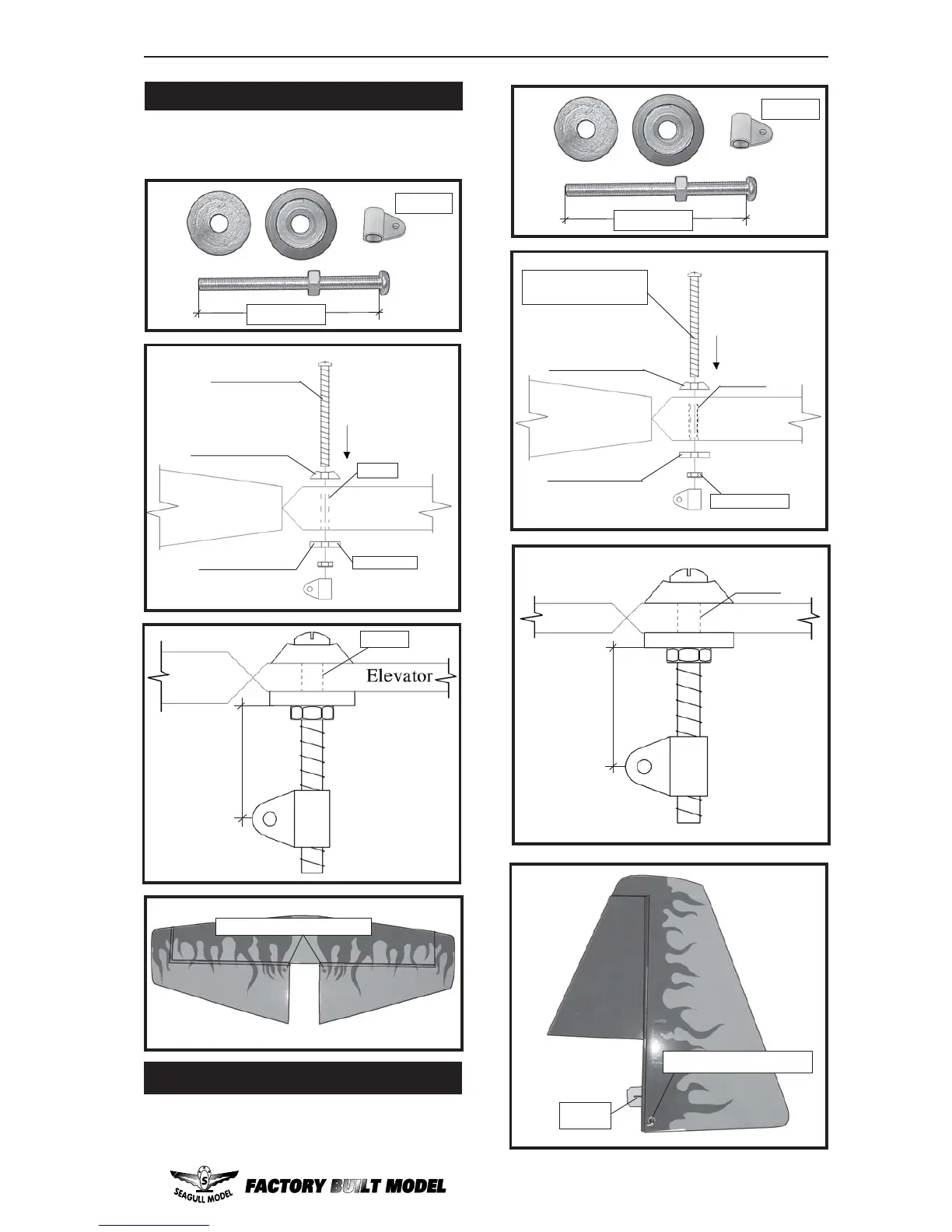

ELEVATOR CONTROL HORN.
Install the elevator control horn using the
same method as with the aileron control
horns.
2 sets.
3x35mm.
Rudder control horn:
Using the same techniques used aileron
control horn. See picture below.
16mm.
2 sets.
3x35mm.
EPOXY.
Rudder control horn.
16mm.
Epoxy.
RUDDER CONTROL HORN.
Horizontal
Stabilizer.
Fuselage.
Rudder.
Elevator control horn.
Hinge.
Aluminum Washer.
CONTROL HORN M3
M3 LOCK NUT.
Epoxy.
Aluminum Washer.
CONTRONL HORN
M3 SCREW.
ALUMINUM WASHER.
ALUMINUM WASHER.
M3 LOCK NUT.
EPOXY.
Horizontal
Stabilizer.
Fuselage.
Elevator.
Rudder.
