CAP 232. Instruction Manual
16

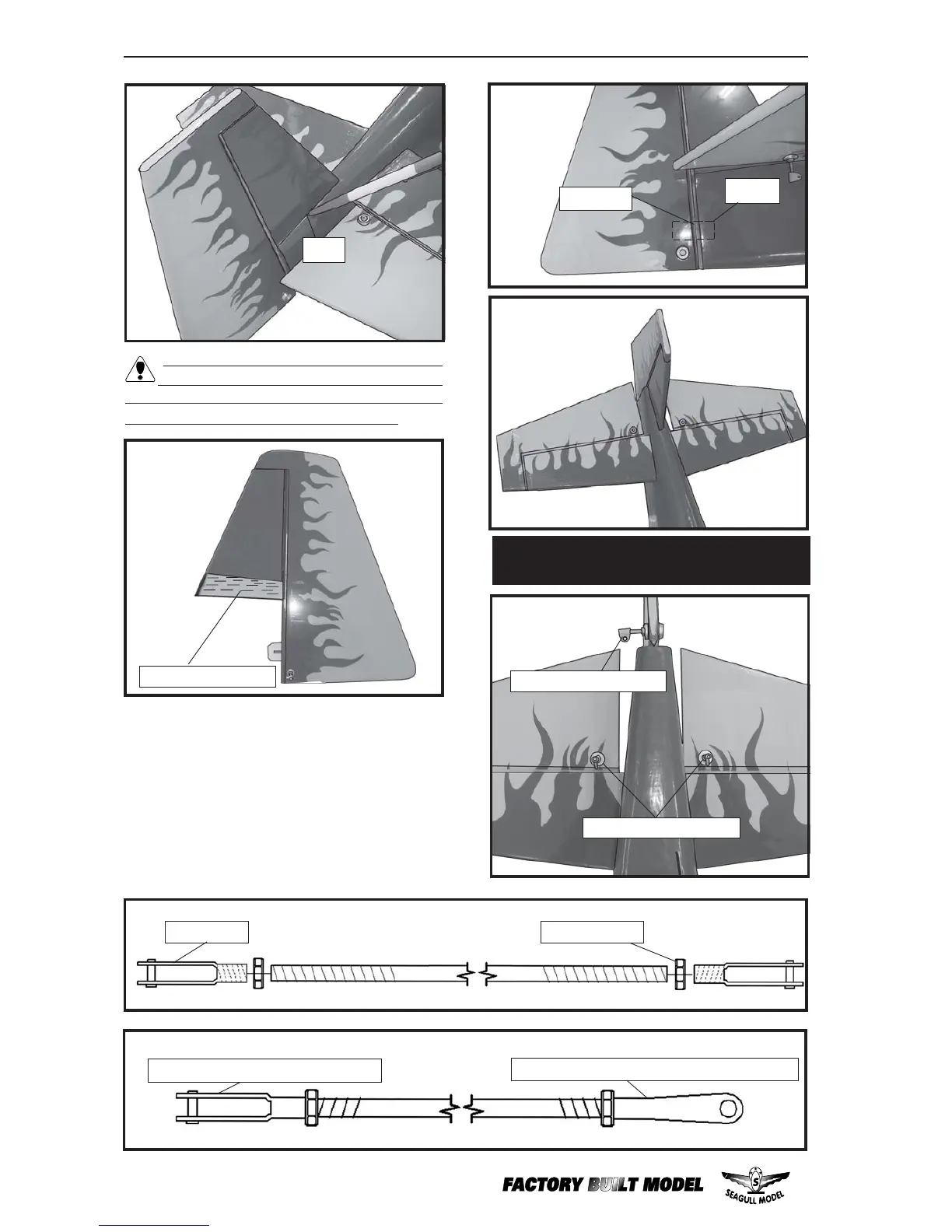

ELEVATOR - RUDDER PUSHROD HORN
INSTALLATION.
Elevator control horn.
Rudder control horn.
When cutting through the covering to re-
move it, cut with only enough pressure
to only cut through the covering itself. Cutting
into the balsa structure may weaken it.
Pen.
Remove covering.
C/A glue.
Hinge.
M2 clevis.
Attach to servo arm in fuselage.
M2 Lock nut.
Attach to elevator - rudder control horn.
