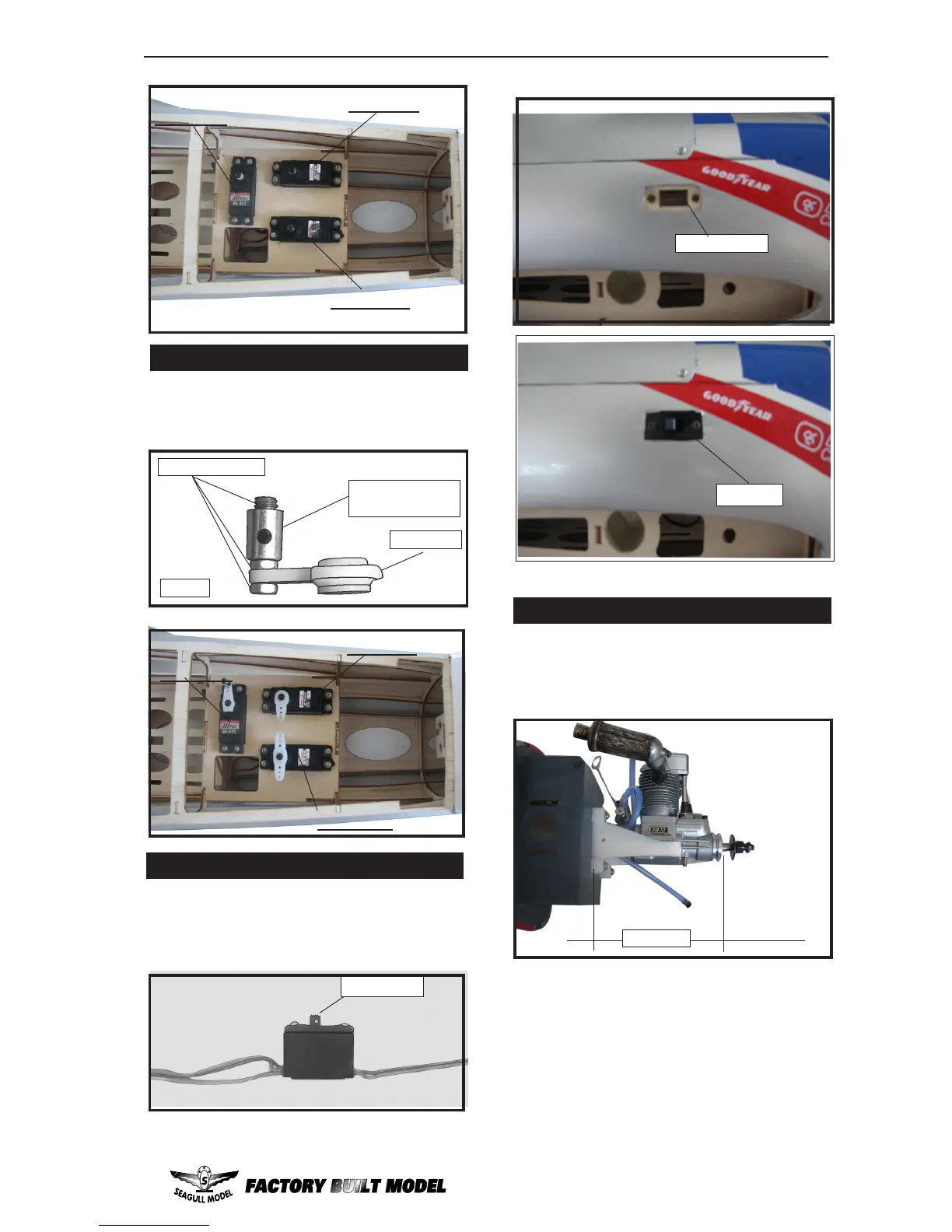

THROTTLE SERVO ARM INSTALLATION.
Install adjustable servo connector in the servo
arm as same as picture below:
Throttle
Elevator
Rudder
Adjustable Servo
connector.
Servo arm.
Loctite secure.
1 PCS.
3/ 32” Hole.
INSTALLING THE SWITCH.
Install the switch into the precut hole in the
side, in the fuselage.
Throttle
Rudder
Elevator
Switch.
Trim and cut.
MOUNTING THE ENGINE.
 1) Position the engine with the drive washer
(110mm) forward of the firewall as shown.
110mm
2) Use a pin drill and 2mm drill bit to drill a
small indentation in the mount for the engine
mounting screw.
