Seagull Models EXTRA EA 300L - STABILIZER AND TAIL ASSEMBLY; INSTALLING THE HORIZONTAL STABILIZER

EXTRA EA 300l - 1395mm. Instruction Manual.
18
2 x 10mm
2x10mm

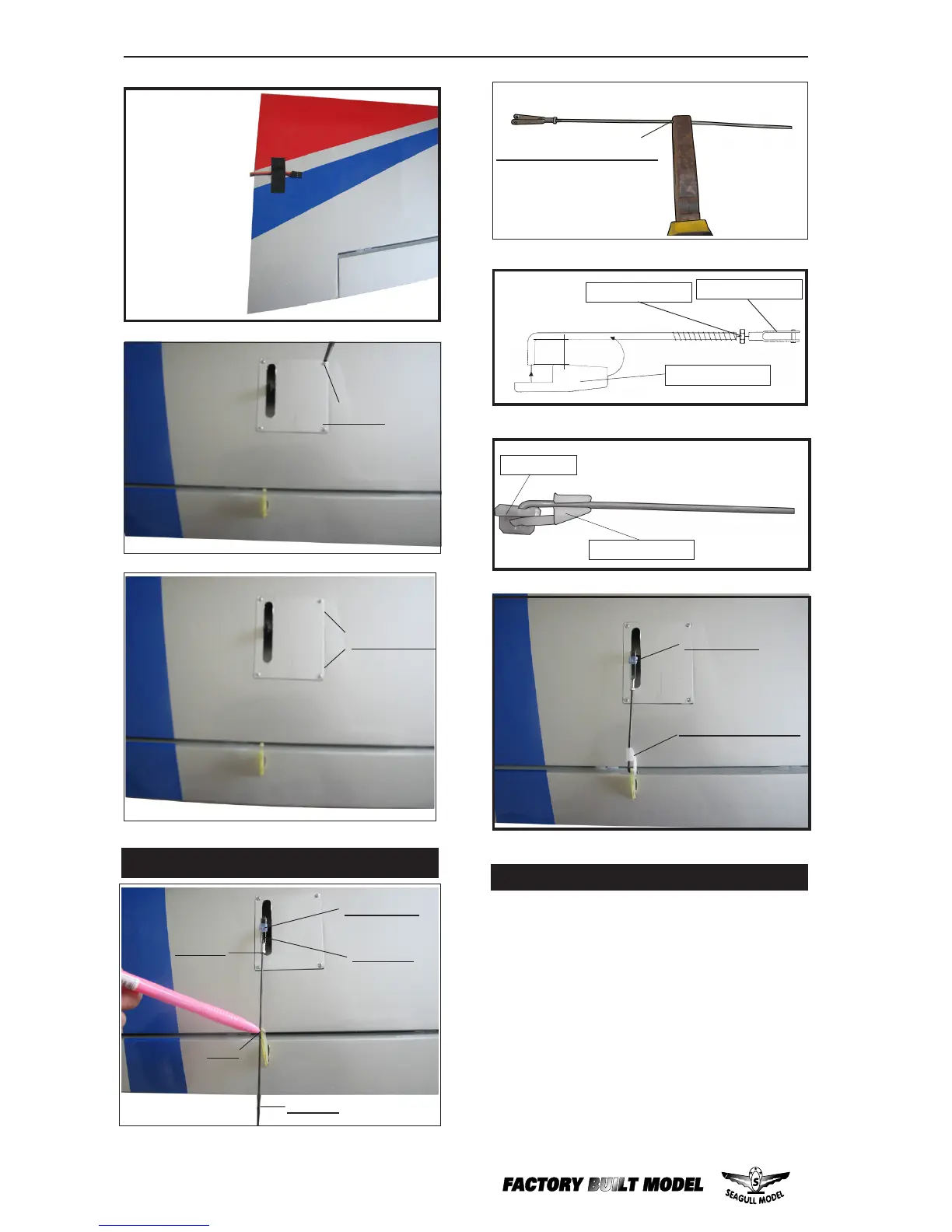

AILERON PUSHROD HORN INSTALLATION
Fuel Tubing
M2 Clevis
Hex Nut
Pushrod
Mark
INSTALLING THE HORIZONTAL STABILIZER.
 1) Using a ruler and a pen, locate the
centerline of the horizontal stabilizer, at the
trailing edge, and place a mark. Use a triangle
and extend this mark, from back to front,
across the top of the stabilizer. Also extend
this mark down the back of the trailing edge of
the stabilizer.
Snap keeper.
Servo arm.
8mm
Snap keeper.
M2 lock nut.
Metal clevis.
Bend at the mark
Nylon Snap Keeper
Fuel Tubing
