17
.
.

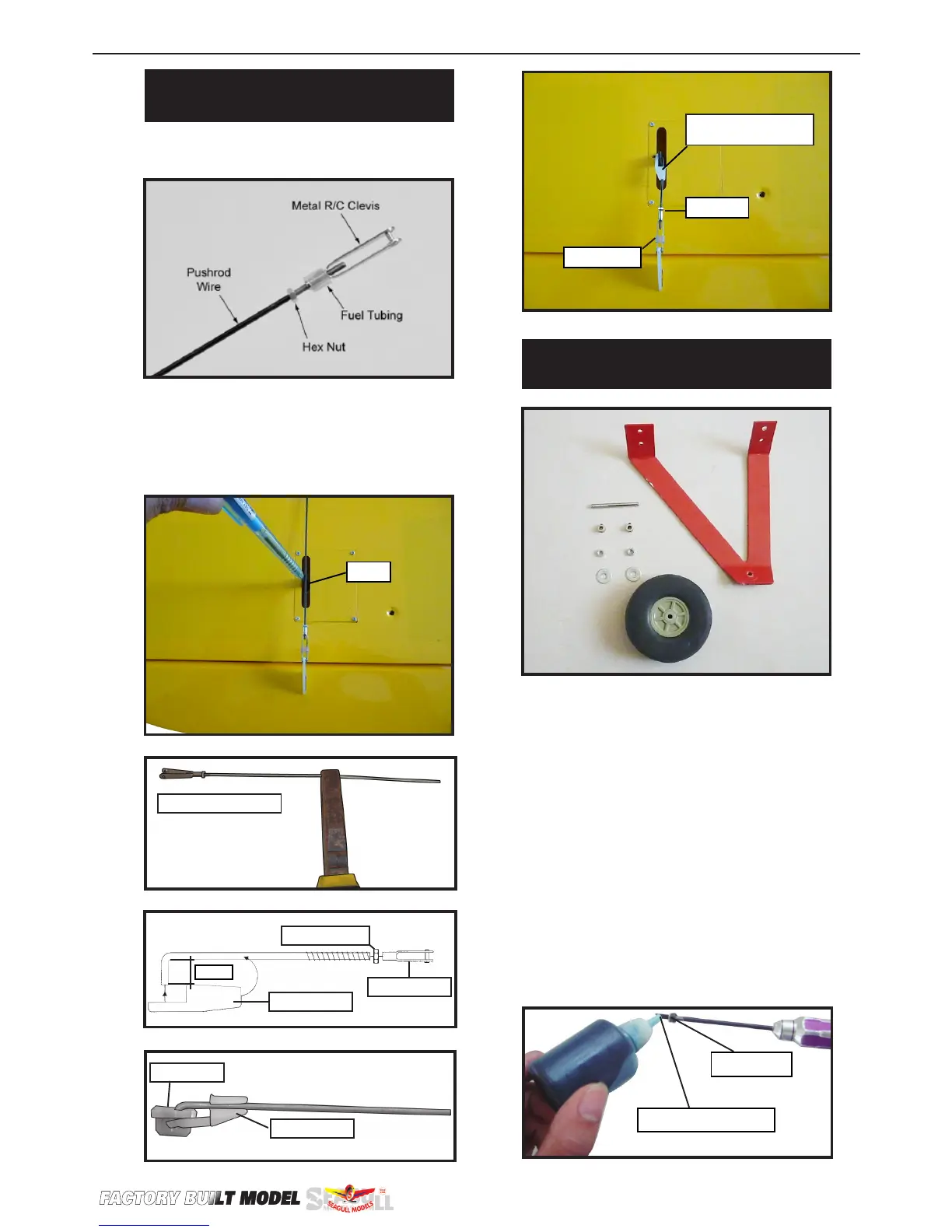

AILERON PUSHROD HORN
INSTALLATION.
Please see below pictures.
Use a felt tip pen to mark the wire where
it crosses the hole. Use a pair of pliers to
put a shrp 90-degree bend in the wire at
the mark.
Mark.
8mm
M2 lock nut.
Metal clevis.
Snap keeper.
Snap keeper.
Servo arm.
Fuel tubing.
Hex Nut.
Nylon Snap keeper.
Bend at the mark
1) e blind nuts for securing the land-
ing gear are already mounted inside the
fuselage.
2) Using the hardware provided, mount
the main landing gear to the fuselage.
3) Place the fuselage inverted on the
workbench in a suitable stand. Set the
landing gear in place and use a screw-
drive to secure the landing gear to the fu-
selage using bolts M4x20mm and wash-
ers. Make sure to use the threadlock on
the bolts so they don’t vibrate loose.
INSTALLING THE MAIN LANDING
GEAR TO FUSELAGE.
M4x20mm
read locker glue.
