Because the size of servos dier, you
may need to adjust the size of the precut
opening in the mount. e notch in the
sides of the mount allow the servo lead to
pass through.

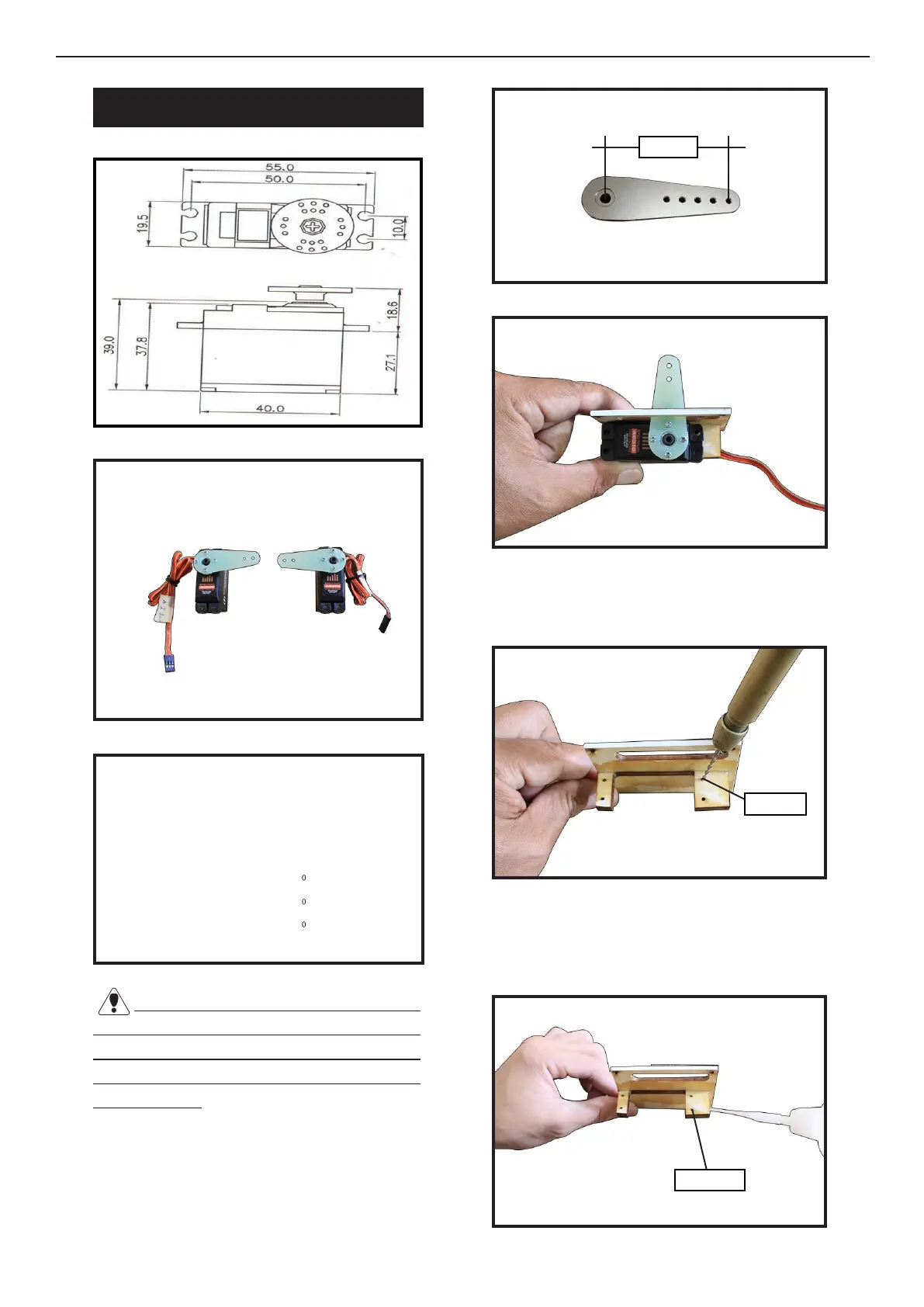

INSTALLING THE AILERON SERVOS
1.
2.
Apply 2-3 drops of thin C/A to each of
the mounting holes. Allow the C/A to
cure without using accelerator.
6.
Use drill bit in a pin vise to drill the
mouting holes in the blocks.
Apply 2-3 drops of thin C/A to each of
the mounting holes. Allow the C/A to
cure without using accelerator.
4.
3.
5.
1.5mm
C/A glue
Minimum servo spec.
Torque : 27.3 kg-cm (378 oz-in) @6.0V
33.7 kg-cm (467 oz-in) @7.4V
38.2 kg-cm (530 oz-in) @8.4V
Transit Speed : 0.14 sec/60 @6.0V
0.11 sec/60 @7.4V
0.10 sec/60 @8.4V
40mm
To Next Page
