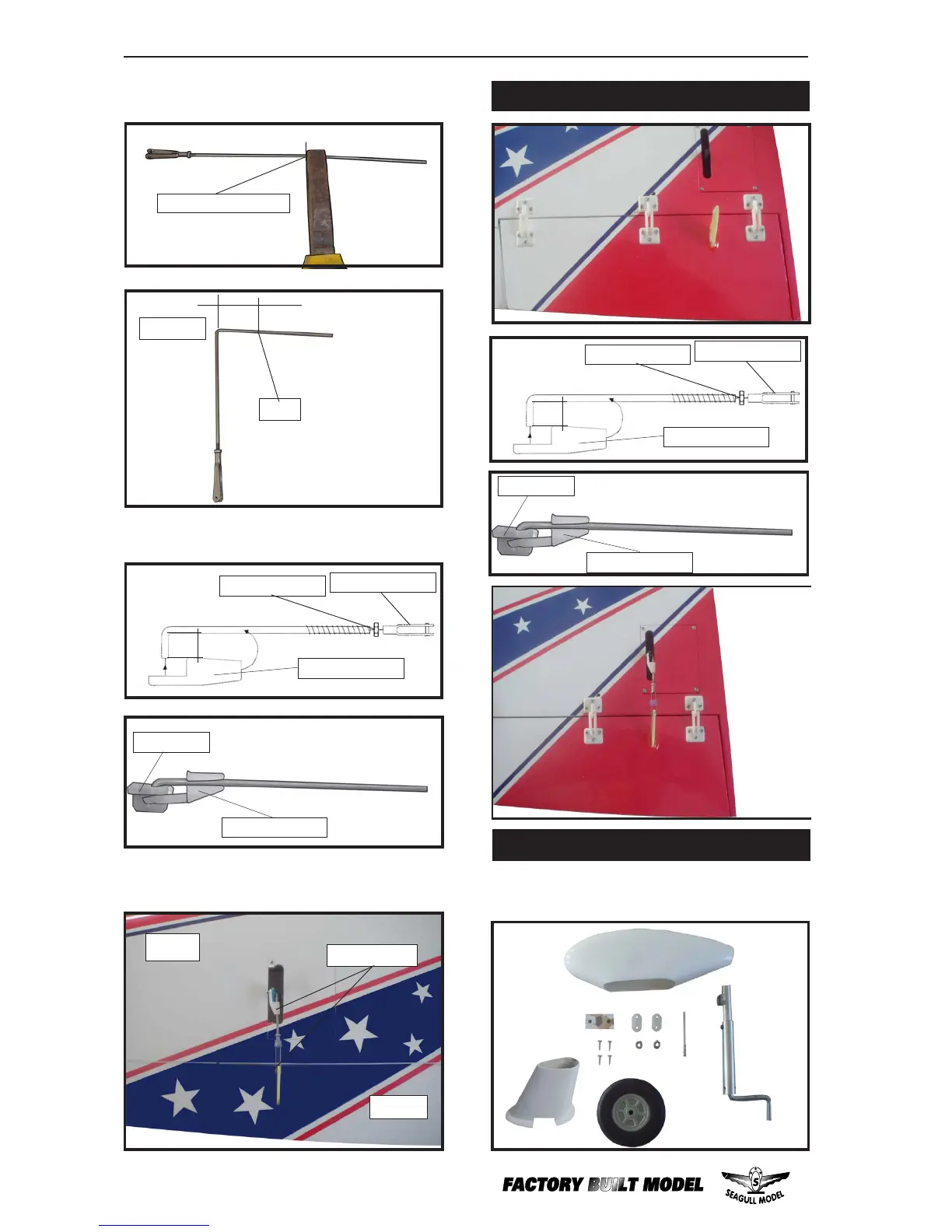

SUPER CHIPMUNK SIZE 55. Instruction Manual.
16
Wing.
M2 lock nut.
Aileron.
3) Connect the linkage as shown and secure
the control wire with a snap keeper.
FLAP PUSHROD HORN INSTALLATION
Snap keeper.
Servo arm.
8mm
Snap keeper.
M2 lock nut.
Metal clevis.
INSTALLING LANDING GEAR
1)Locate items necessary to install Spring
Landing Gear.
1) Mark the control wire where it crosses the
servo arm hole.
Bend at the mark.
Snap keeper.
Servo arm.
8mm
Snap keeper.
2) Make a 90-degree bend at the mark and cut
off the excess wire leaving 8mm past the bend.
M2 lock nut.
Metal clevis.
8mm.
Cut.
