SUPER CHIPMUNK SIZE 55. Instruction Manual.
22

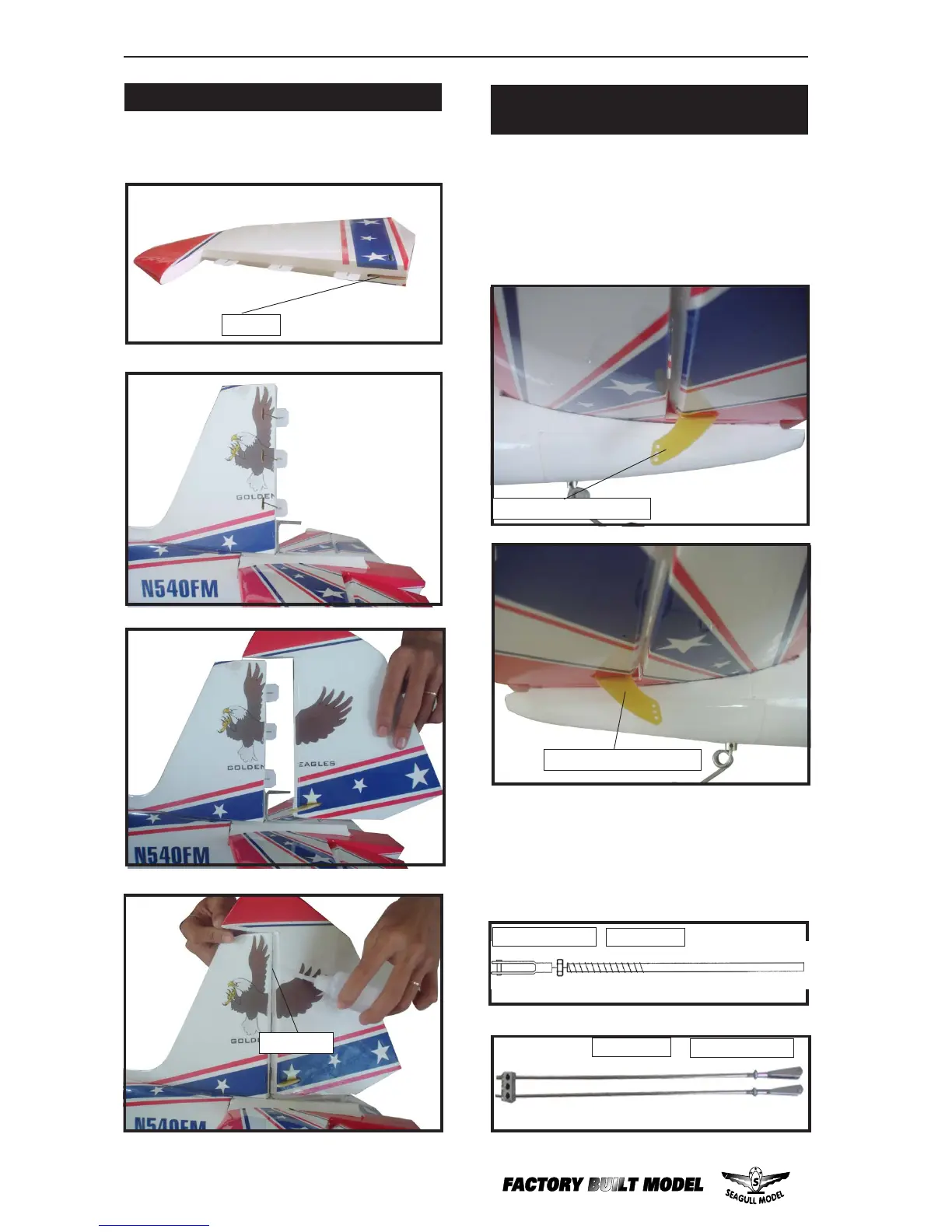

ELEVATOR PUSHROD HORN
INSTALLATION.
Elevator control horn.
 1) Install the elevator control horn using
the same method as with the aileron control
horns.
 2) Position the elevator control horn on
the both side of elevator.
 4) Elevator and rudder pushrods assembly
as pictures below.
 3) Thread one clevis and M2 lock nut on
to each elevator control rod. Thread the horns
on until they are flush with the ends of the con-
trol rods.
Elevator control horn.
C/A glue.
M2 lock nut .
M2 clevis.
HINGING THE RUDDER.
Glue the rudder hinges in place using the
same techniques used to hinge the ailerons.
Epoxy.
M2 lock nut .M2 clevis.
