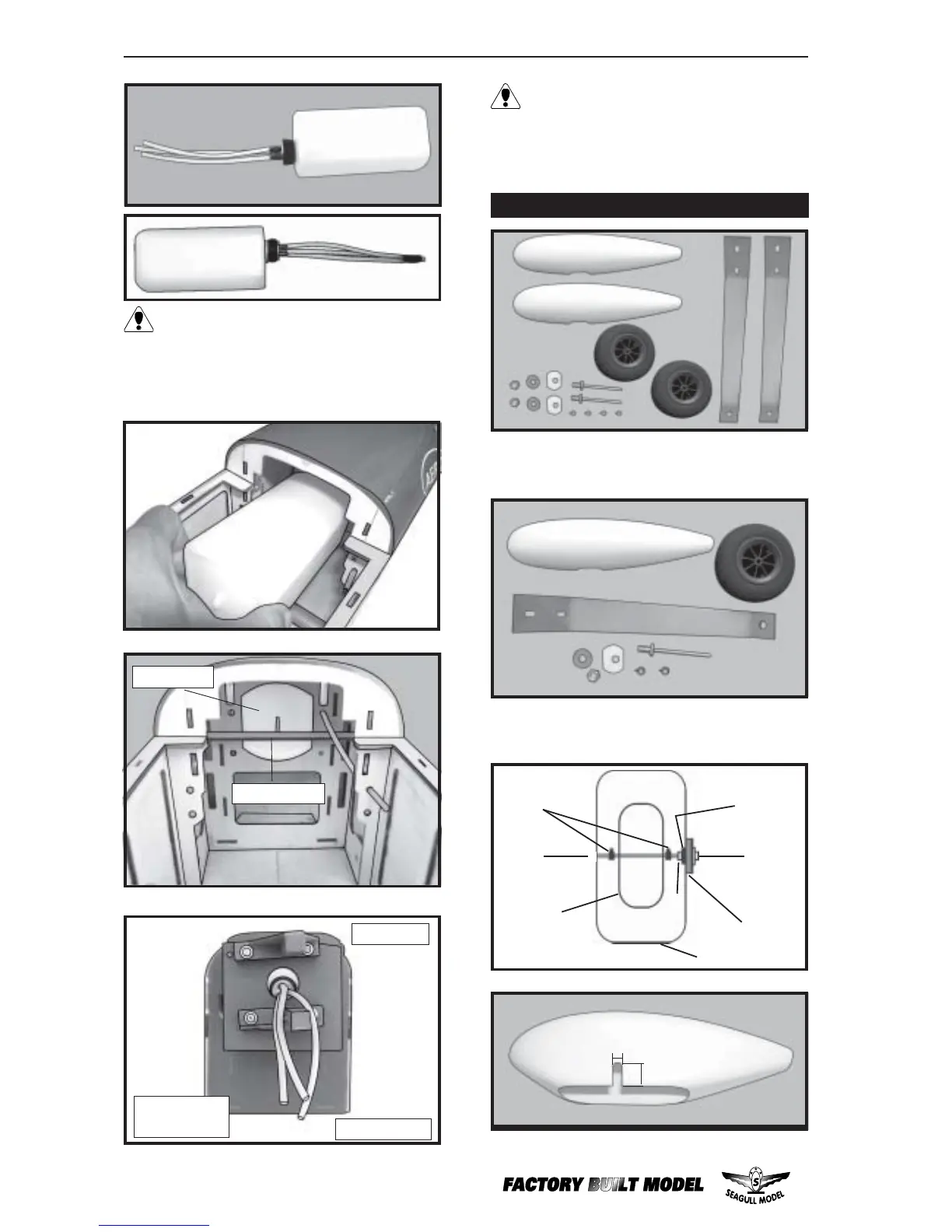

ULTIMATE. Instruction Manual.
10
You should mark which tube is the vent
and which is the fuel pickup when you
attach fuel tubing to the tubes in the stopper.
Once the tank is installed inside the fuselage,
it may be difficult to determine which is which.
14mm.
7mm.
Blow through one of the lines to ensure
the fuel lines have not become kinked inside
the fuel tank compartment. Air should flow
through easily.
! 2) Follow diagram below for wheel pant
installation:
! 1) Assemble and mounting the wheel pants
as shown in the following pictures.
WHEEL AND WHEEL PANTS.
Wheel Collar.
Axle.
Wheel.
Nut.
Wheel Pant.
Landing Gear.
Nut.
Plywood Washer.
Fuel pick-up
tube.
Fuel fill tube.
Vent tube.
Balsa wood.
Fuel tank.
